Specifications
Brand Name :
Rotork
Model Number :
YT2500
Place of Origin :
China
MOQ :
1 pc
Price :
USD 480/1 pc
Payment Terms :
T/T
Supply Ability :
100 pc 1 week
Delivery Time :
7-14 days
Reference Accuracy :
Standard: 0.05% Platinum: up to 0.025%
Application :
Industrial process control
Flange Material :
316SST
Protocol :
HART/RS485
Power Supply :
10-30 VDC
Warranty :
1 year
Communication Protocol :
HART
Long Term Stability :
±0.1% of span per year
Pressure Type :
Gauge Pressure
Protection Rating :
IP65
Material :
stainless steel
Weight :
0.5 kg
Response Time :
≤10 ms
Pressure Sensing Element :
Piezoresistive
Output Signal :
4-20 mA
Description

Piezo Technology YTC YT2500 Valve Positioner Electro-pneumatic Positioner

Rotork YTC YT-2500 Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PID control, Alarm, and Hart protocol.

Design features
• Fail-freeze and fail-safe functions. Enables the valve to maintain the last position (fail-freeze) or move to a pre-determined position (fail-safe) on the loss of electrical power supply or the pneumatic supply air.
• Auto calibration. Simple menu structure with options to auto calibrate all parameters or zero and end points only.
• LCD display. Alphanumeric digital display for process values and calibration.
• Low air consumption level. Almost zero air leakage.
• Feedback signal. Analogue feedback signals with 4-20 mA, mechanical and proximity switch options.
• PD control. Pre-calibrated and user-configurable variables via front panel pushbutton menu.
• HART® communication. Allows commands, position feedback and diagnostics to be sent digitally over the current loop.
• Front panel pushbuttons for configuration. Four robust and positive acting pushbuttons for field configuration.

Models

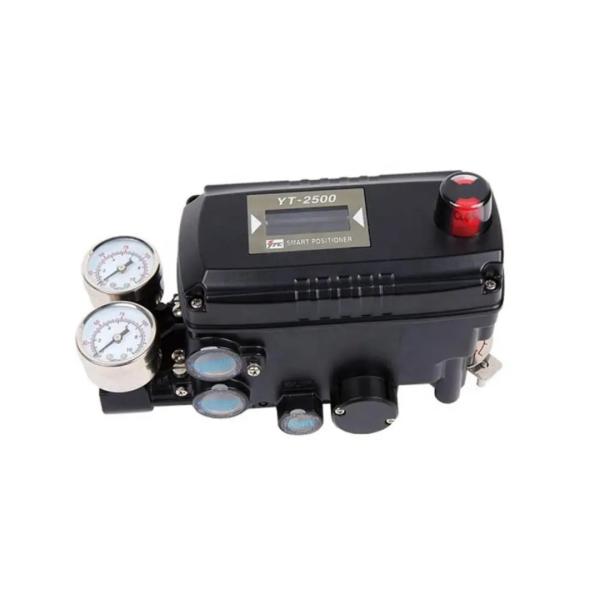

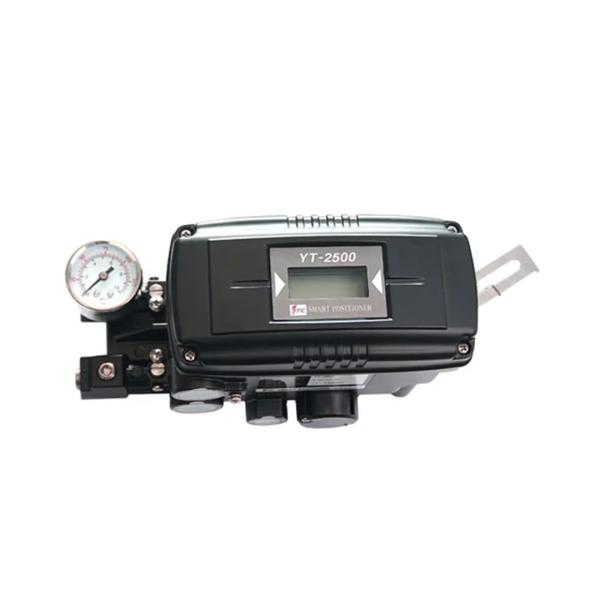

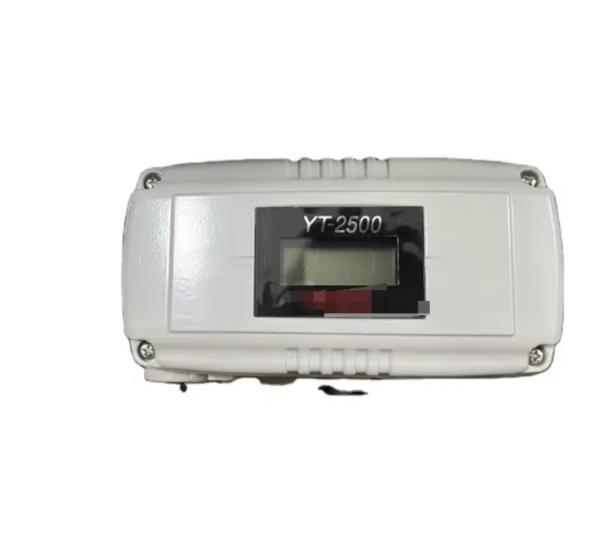

YT-2500 = Aluminium housing *pictured*

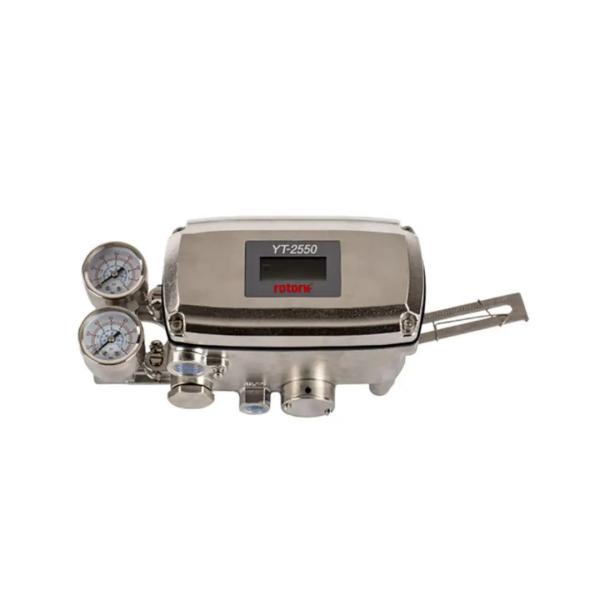

YT-2550 = Stainless steel house

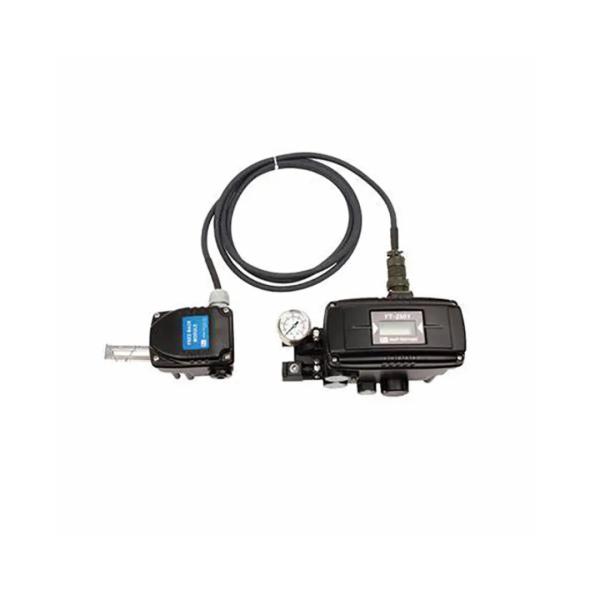

YT-2501 = Aluminium housing with remote sensor


item
value
Warranty
12 MONTHS
Customized support
OEM, ODM
Place of Origin
China
Brand Name
YTC
Model Number
YT2500
Output
4-20ma
Certificate
CCC
Body material
Aluminum Alloy

Piezo Technology YTC YT2500 Valve Positioner Electro-pneumatic Positioner
