Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
Specifications
Brand Name :
Rotork
Model Number :
YT2500
Place of Origin :
China
MOQ :
1 pc
Price :
USD 480/1 pc
Payment Terms :
T/T
Supply Ability :
100 pc 1 week
Delivery Time :
7-14 days
Reference Accuracy :
Standard: 0.05% Platinum: up to 0.025%
Application :
Industrial process control
Flange Material :
316SST
Protocol :
HART/RS485
Power Supply :
10-30 VDC
Warranty :
1 year
Communication Protocol :
HART
Long Term Stability :
±0.1% of span per year
Pressure Type :
Gauge Pressure
Protection Rating :
IP65
Material :
stainless steel
Weight :
0.5 kg
Response Time :
≤10 ms
Pressure Sensing Element :
Piezoresistive
Output Signal :
4-20 mA
Description

Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners

Rotork YTC YT-2500 Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PID control, Alarm, and Hart protocol.

Design features
• Fail-freeze and fail-safe functions. Enables the valve to maintain the last position (fail-freeze) or move to a pre-determined position (fail-safe) on the loss of electrical power supply or the pneumatic supply air.
• Auto calibration. Simple menu structure with options to auto calibrate all parameters or zero and end points only.
• LCD display. Alphanumeric digital display for process values and calibration.
• Low air consumption level. Almost zero air leakage.
• Feedback signal. Analogue feedback signals with 4-20 mA, mechanical and proximity switch options.
• PD control. Pre-calibrated and user-configurable variables via front panel pushbutton menu.
• HART® communication. Allows commands, position feedback and diagnostics to be sent digitally over the current loop.
• Front panel pushbuttons for configuration. Four robust and positive acting pushbuttons for field configuration.

Models

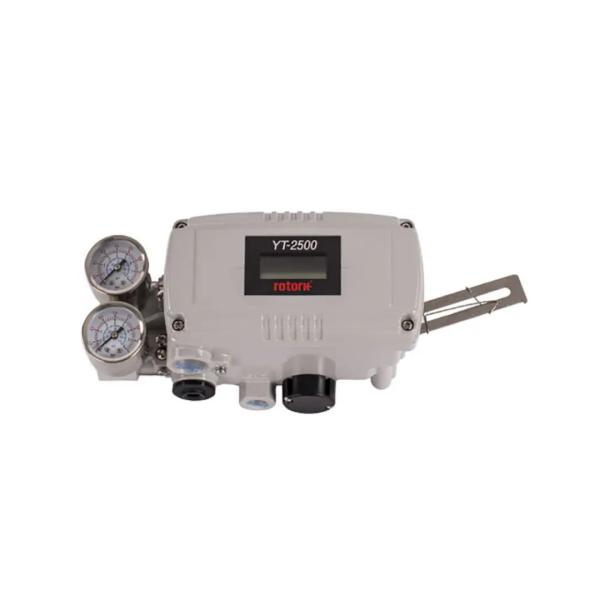

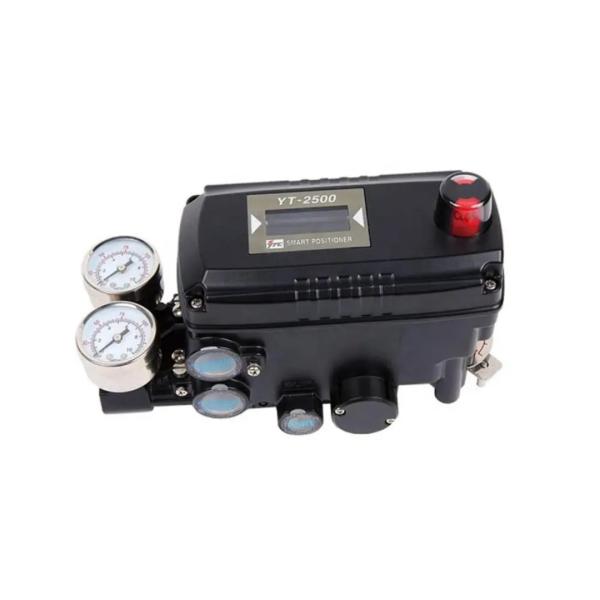

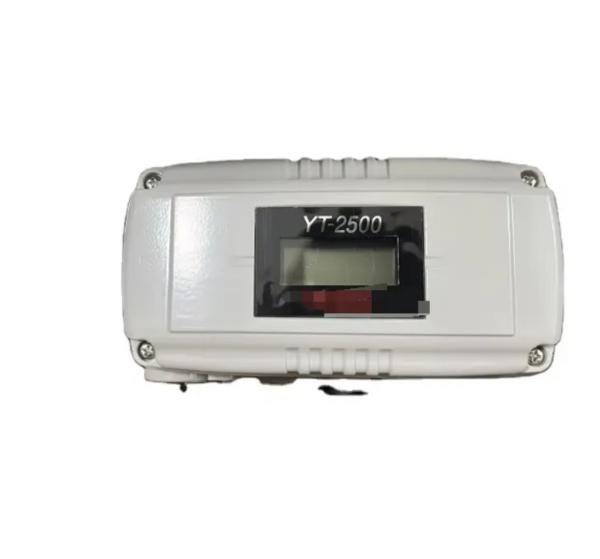

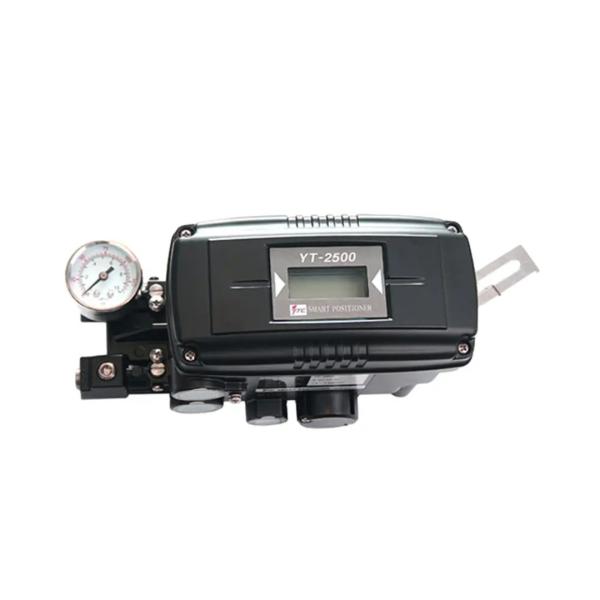

YT-2500 = Aluminium housing *pictured*

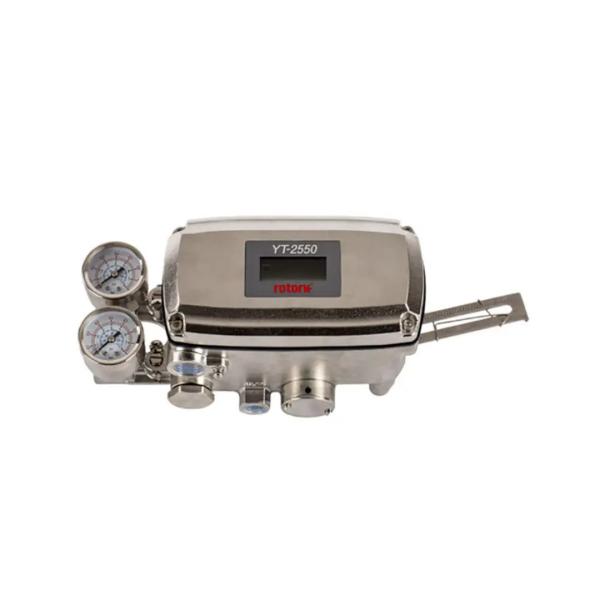

YT-2550 = Stainless steel house

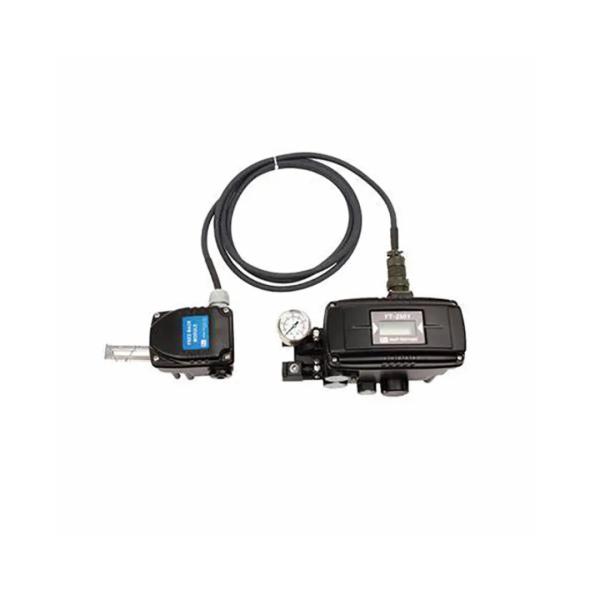

YT-2501 = Aluminium housing with remote sensor


item
value
Warranty
12 MONTHS
Customized support
OEM, ODM
Place of Origin
China
Brand Name
YTC
Model Number
YT2500
Output
4-20ma
Certificate
CCC
Body material
Aluminum Alloy

Rotork YTC YT2500 Proximity Sensors Pneumatic Valve Positioners
