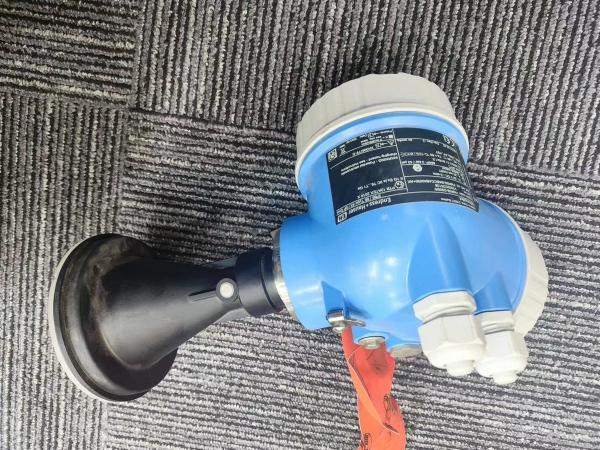

Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Radar Level Meter FMR56 Level Meter for All Solid Material Measurements
Specifications
Brand Name :
E+H
Model Number :
FMR56
Place of Origin :
China
MOQ :
1 pc
Price :
USD 3000 1 pc
Payment Terms :
T/T
Supply Ability :
100 pc 1 week
Delivery Time :
7-14 days
Warranty :
1years
Operating Temperature :
-40°C to 85°C
Long Term Stability :
±0.2% of URL for 5 years
Power Supply :
10-30 VDC
Measuring Medium :
Pressure, Level and Flow
Wetted Materials :
316L stainless steel
Wetted Material :
Stainless Steel
Communication Protocol :
HART, Profibus, Modbus, Foundation Fieldbus
Voltage :
1-5 (V)
Housing Material :
Aluminum
Reference Accuracy :
Standard: 0.05% Platinum: up to 0.025%
Pressure Sensing Element :
Piezoresistive
Weight :
0.5 kg
Electrical Connection :
M12x1
Accuracy :
±0.1% of span
Description

Radar Level Meter FMR56 Level Meter for All Solid Material Measurements



Field of application

Micropilot FMR56 is particularly designed for light-duty process conditions as they occur in silos or bins for solids. Micropilot free space radar is used for continuous,

non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.

PP-plated horn antenna can be easily aligned to the surface of the solids by the mounting bracket or a turnable seal.

  • Process connections: Mounting bracket or slip-on flange
  • Temperature: -40 to +80°C (-40 to +176°F)
  • Pressure: -1 to +3bar (-14.5 to +43.5psi)
  • Maximum measuring range: 30m (98ft)
  • K-band: 26GHz
  • International explosion protection certificates, SIL, 5-point linearity protocol

Benefits

  • Reliable measurement even for changing product and process conditions
  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
  • Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
  • Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)
  • Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
  • Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
  • World's easiest proof test concept for SIL and WHG saves time and cost

Measuring principle
Level radar solid
Characteristic / Application
For simple applications:

Reliable non-contact level measurements in silos or storage tanks for bulk solids
Specialities
Heartbeat Technology,

Bluetooth commissioning,

Operation and maintenance SmartBlue App,

Safety and reliability with Multi- Echo Tracking,

HistoROM,

RFID TAG for easy identification,
Supply / Communication
2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus)

4-wire (HART)

Bluetooth wireless technology and App (optional)

Frequency

K-band (~26 GHz)
Antenna
Horn DN80/3", PP plated

Horn DN100/4", PP plated
Accuracy
+/- 3 mm (0.12 in)
