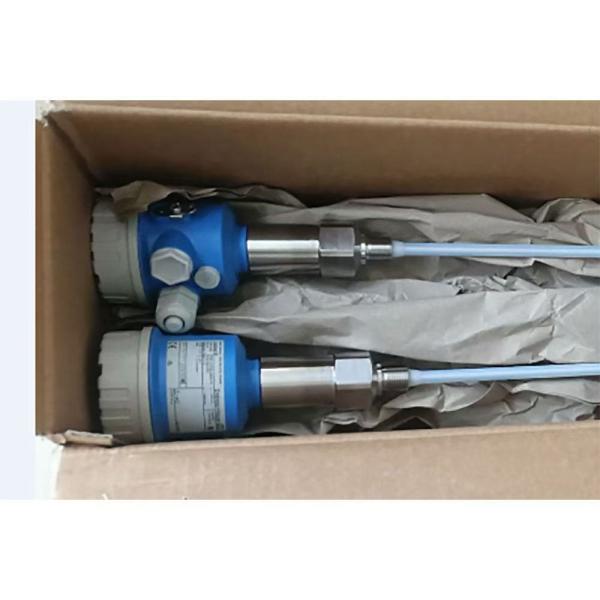

FMP40-ABB2GRJB21AA Continuous Level Measuring Instrument Brand New Original

Application

Level measurement

Continuous level measurement of powdery to granular bulk solids e.g. plastic granulate and liquids.

• Measurement independent of density or bulk weight, conductivity, dielectric constant, temperature and dust e.g. during pneumatic filling.

• Measurement is also possible in the event of foam or if the surface is very turbulent.

• The HART with 4 to 20 mA analog, PROFIBUS PA and FOUNDATION Fieldbus protocols are available for system integration.

• Application in safety related systems (overspill protection) with requirements for functional safety up to SIL 2 in accordance with IEC 61508/IEC 61511-1.

• WHG approval

Interface measurement

Continuous measurement of interfaces between two liquids with very different dielectric constants, such as in the case of oil and water for example.

• Measurement independent of density, conductivity and temperature

• Electronics version for the simultaneous measurement of the level of interfaces and the total level in liquids. The HART with 4 to 20 mA analog protocol is available for system integration

• Special version for the measurement of the level of interfaces at a constant total level. The PROFIBUS PA and FOUNDATION Fieldbus protocols are available for system integration.

Your benefits

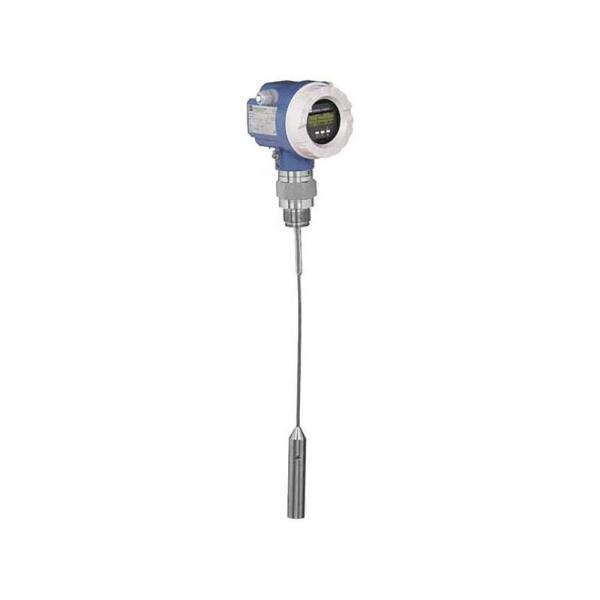

Probes are available with threaded process connections from ¾" and flanges from DN40 (1½"). • Rope probes, above all for measurement in bulk solids, measuring range up to 35 m.

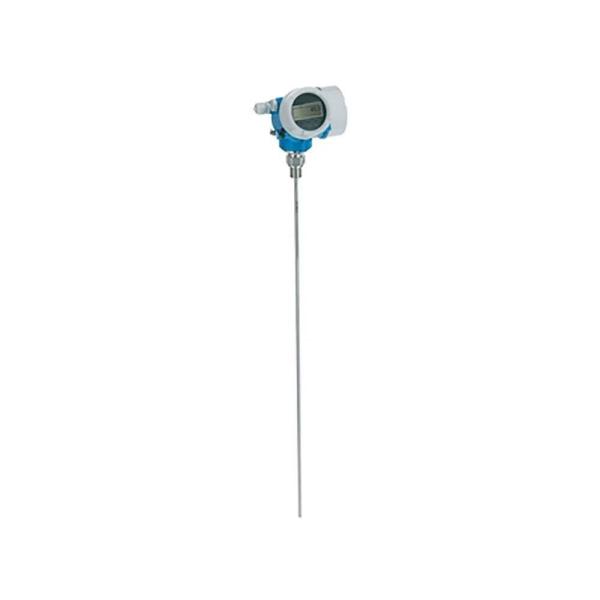

• Rod probes, above all for liquids

• Coax probes, for liquids

• Simple, menu-guided onsite operation with four-line plain text display.

• Onsite envelope curve on the display for easy diagnosis.

• Easy remote operation, diagnosis and measuring point documentation with the free operating program supplied.

• Optional remote display and operation.

• With coax probes the measurement is independent of internals in the tank and of the installation in the nozzle.

• Probe rod and probe rope can be replaced/shortened.

• Approvals: ATEX, FM, CSA, TIIS, NEPSI, IECEx.
