E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ
Specifications
Brand Name :
E+H
Model Number :
FTL51B
Place of Origin :
China
MOQ :
1 pc
Price :
USD 400/1 pc
Payment Terms :
T/T
Supply Ability :
100 pc 1 week
Delivery Time :
7-14 days
Output Signal :
4-20mA
Weight :
1.5 kg
Accuracy :
±0.1% of span
Overpressure Limit :
2 times the maximum range
Wetted Material :
Stainless Steel
Measuring Medium :
Pressure, Level and Flow
Range :
0-10,000 psi
Hart Protocol :
Available
Flange Material :
316SST
Response Time :
≤10ms
Reference Accuracy :
Standard: 0.05% Platinum: up to 0.025%
Approvals :
ATEX, FM, CSA, CE
Turndown Ratio :
100:1
Measuring Principle :
Absolute and gauge pressure
Temperature Range :
-40°C to 85°C
Description

E+H Endress+Hauser FTL51B Liquid Tuning Fork Switch FTL51B-NCA4BBFAA1AJA1VCJ


Field of application

The Liquiphant FTL51B is specialized for the process industry and developed to be used directly in SIL2 and SIL3 applications. You conduct periodic proof tests according to SIL or WHG mobile with an intuitive wizard. At the end you receive an automated documentation. Liquiphant measures reliably and is not affected by changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up. The device is easy to use, has a digital connection and gives real-time data at hand.

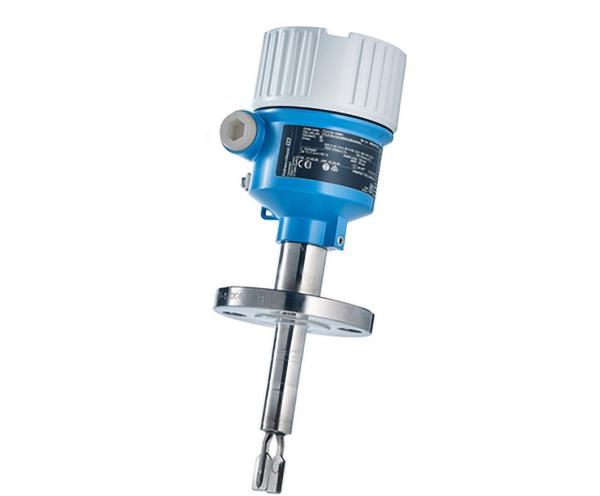

Point level switch with extension tube for all liquids

  • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
  • Temperature: -50 to +150°C (-58 to +302°F)
  • Pressure: -1 to +100bar (-14.5 to +1450psi)
  • Sensor material: 316L, Alloy
  • International explosion protection certificates, overfill protection WHG, SIL, marine approvals

Benefits

  • Universal measuring principle for limit detection – proven vibronic technology
  • Developed according IEC 61508 for highest safety – SIL2/3 applications (3rd party approved)
  • Periodic proof testing is quickly and simple organized with guided wizards via the SmartBlue-App or via a test button or magnetic pin from outside. Via digital communication you can initiate the device for a fast and easy testing of the safety loop.
  • Heartbeat Technology allows safe, continuous diagnostics and a simple verification, without process interruption
  • Centralized asset management with easy online access to all device information thanks to digital communication
  • Second line of defense to protect the environment
item
value
place of origin
China
warranty
1 Year
customized support
OEM, ODM
brand name
E+H
material
stainless steel
color
Other
power
Other
Process temperature
-50 °C...+150 °C (-58 °F...+302 °F)
Process pressure/max. overpressure limit
Vacuum...100 bar Vacuum...1450 psi
Min. density of medium
0.5 g/cm³ (0.4 g/cm³ optional)
Ambient temperature
-60 °C...+70 °C (-51 °F...+158 °F)
Sensor length
Up to 6 m (19.7 ft)
