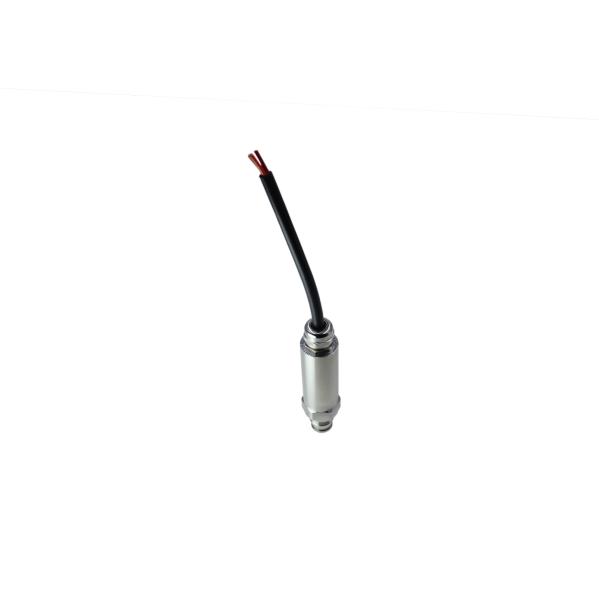

Piezoresistive Industrial Pressure Transmitter IP65 For Mud
Piezoresistive Industrial Pressure Transmitter IP65 For Mud
Specifications
Brand Name :
Sier
Certification :
CE,RoHS
Place of Origin :
Shaanxi, China
MOQ :
1 piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7days
Packaging Details :
Carton
Protection :
IP65, others can OEM
Accuracy :
0.5%,0.25%
Pressure Type :
G, A, S
Overpressure :
150%
Output :
4~20mA,0~5Vdc,1~5Vdc,0~10Vdc,0.5~4.5Vdc
Description

Piezoresistive Industrial Pressure Transmitter IP65 For Mud

Feathers

This kind of pressure transmitter can be directly joined with computer joint clip, control instrument ,aptitude instrument or PLC etc. conveniently. The series' product is applied extensively in the professions, such as the industry process control, petroleum, chemical engineering and metallurgy etc. Carry the distance delivers and can adopt electric current

Specification

Pressure range
Pressure Type
gauge pressure absolute pressure sealed pressure
Pressure range
1-600Bar (optional)
Technical Index
Power supply
24VDC 12VDC 12-36VDC
Signal output
4-20mA 0-20mA 1-5V 0-5V
Signal line specification
2wire 2wire 3wire 3wire
Zero Drift
±0.03%FS/°C
Accuracy
±0.1%FS ±0.3%FS ±0.5%FS
Thermal Sensitivity Shift
±0.03%FS/°C
Longterm Stability (1 Year)
<=0.21%FS
Frequency Response (-3dB)
5kHz~650kHz
Compensated Temperature
-10~70℃
Working Temperature
-40~85℃
Storage Temperature
-40~125℃
Overload pressure
200%FS
Protection Classification
IP65
Body materials
316 stainless steel (standard)
Transmission distance
<= 100m (No electromagnetic interference)
Pressure connection
G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5, M20*1.5 etc. (optional)
Measure media
Gas, water, oil or other media can be compated with stainless
Accuracy
±0.3%FS ±0.5%FS
Terminal Block Specifications
Hirschmann connector, aviation conncetor, direct lead

Packing&Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

How to proceed an order?

1. Let us know your requirements or application.

2. We quote according to your requirements or our suggestions.

3. Customer places payment for formal order.

4. We arrange the production.

First trial order

Purchase order - Manufacture - Finished product - shipping - inform the sitiuation of product - received

FAQ
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment.

Q: What can you buy from us?
A: Liquid level sensor,Pressure sensor,flow switch, pressure controller and etc.

Q: Why should you buy from us not from other suppliers?
A: Our company is specialized in producing pressure sensor and liquid level sensor
