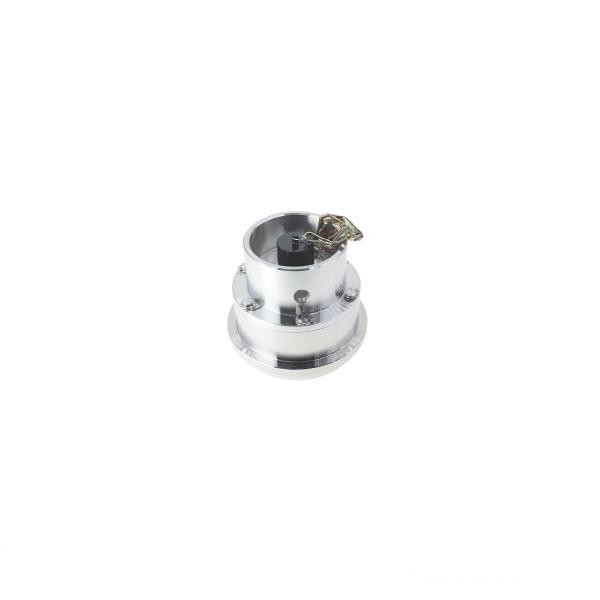

Piezoresistive Analog Industrial Pressure Transmitter 3.3V Chuck Seal
Piezoresistive Analog Industrial Pressure Transmitter 3.3V Chuck Seal
Specifications
Brand Name :
Sier
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7days
Packaging Details :
Carton
Customized support :
OEM, ODM, OBM
Rsponse time(10%~90%) :
10ms
Accuracy :
0.5%,0.25%
Relative humidity :
0～100%RH
Connection method :
Chuck seal or specifified
OEM :
Acceptable
Description

Piezoresistive Analog Industrial Pressure Transmitter 3.3V Chuck Seal

Feathers

This is a piezoresistive pressure sensor with 304 stainless steel corrosion-resistant rugged housing, built-in diffused silicon oil-filled core, 316L stainless steel isolation diaphragm and high-performance amplifier circuit. With 4-20mA, voltage, RS485 and other outputs. Current output, usually designed for conecting to the standard 4-20mA current loop widely used in industrial sensing and control.

Specification

Media to be measured
 wet soil, crude oil, corrosive liquids and gases
Pressure type absolute pressure, sealed reference pressure, vent pressure
Range 0～35MPa, 70MPa, 105MPa, 140MPa, 210MPa, 315MPa
Power supply 9-30VDC
Output signal 4-20mA, 0-5VDC, 1-5VDC, 0-10VDC, 3mV/V
Nonlinear 0.04% FS
Repeatability 0.04% FS
Accuracy 0.1% FS, 0.2% FS, 0.5% FS
Long-term stability 0.1% FS / year (typical)
Working temperature -43～85°C/125°C
Compensation temperature -25 ~ 70 ° C / 100 ° C
Response time ≤ 1 millisecond (typical)
Insulation resistance ≥500MΩ/100V
Overload pressure 200% FS (2 times full scale, special: 5 times full scale)
Destruction pressure 500% FS (5 times full scale, special 10 times full scale)
Vibration resistance about 10g/0~2000HZ
Vibration resistance about 10g/0~2000HZ
Impact resistance about 50g/1ms
Connection method Chuck seal or specifified
Wetted material
17-4PH stainless steel
Relative humidity 0～100%RH
Protection rating IP67
Electrical output lead aerospace connector, Amphenol


Electrical connection

Piezoresistive Analog Industrial Pressure Transmitter 3.3V Chuck Seal

Piezoresistive Analog Industrial Pressure Transmitter 3.3V Chuck Seal

Why choose us

- 24hour aging

- Tempersture test

- Weld gold wire

- Laser trimming

- Weld shell base

Application

* Air filter

* Liquild tanks

* Hydraulic control system

* Diesel engine

Package&Shpping
Standard export package: each unit has individual box and all boxes are packed in standard packages

Service standards: we are committed to providing a high quality,and responsive services to all clients
The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
Excellent package: each unit has individual box and all boxes are packed in standard packages.
OEM available
