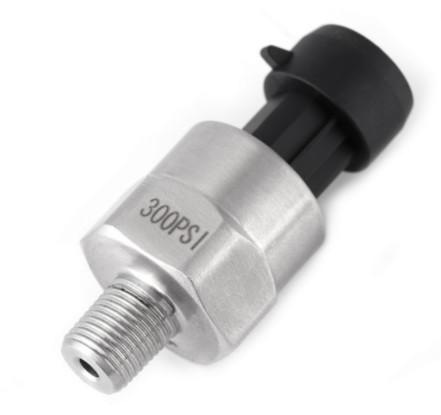

4-20mA Stainless Steel 36VDC Air Pressure Transmitter IP65
4-20mA Stainless Steel 36VDC Air Pressure Transmitter IP65
Specifications
Brand Name :
Sier
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7days
Packaging Details :
Carton
Pressure type :
Gauge Pressure Absolute Pressure Sealed Pressure
Material :
Stainless Steel
Application :
Liquid/hydraulic/air
Power supply :
12~36VDC
Output signal :
4~20mA
Media :
Oil
Description

Specification

Pressure Type
Gauge pressure/ absolute pressure /sealing pressure
Power Supply
24VDC(9~36V)
Signal Output
4~20mA;1~5V;0~10V;0~5V;RS485
Range
-0.1…0/0.01…60Mpa
Accuracy
0.3%,0.5%
Long Term Stability
±1%FS/year
Ingress Protection
IP65
Pressure Connection
G1/4, G1/2,1/2NPT,1/4NPT, M20*1.5etc.(optional)
Measure Medium
Gas, water, oil etc. (non-explosion-proof area)
Time Response
≤10ms(up to 90％FS)
Housing material
304/316L stainless steel

4-20mA Stainless Steel 36VDC Air Pressure Transmitter IP65


Electrical Connection

4-20mA Stainless Steel 36VDC Air Pressure Transmitter IP65

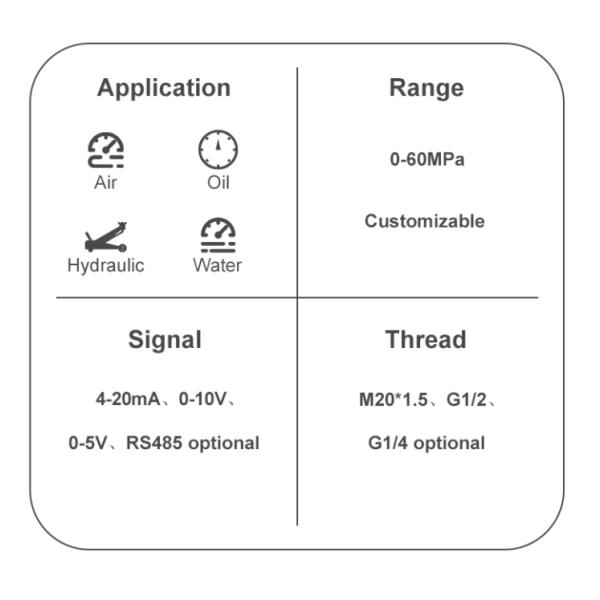

Application

Air tightness test

Micro pressure measurement

Evaporator level measurement
