Stainless Steel Welding Seal FKM Digital Pressure Switch
Stainless Steel Welding Seal FKM Digital Pressure Switch
Specifications
Brand Name :
Sier
Model Number :
SPK21
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1piece
Supply Ability :
5000 pieces each month
Delivery Time :
7days
Packaging Details :
Carton

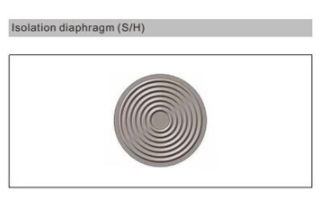

Sensor seal :
Stainless steel welding seal; FKM
Media temperature :
Sensor with silicon oil filling -40-120℃
Working humidity :
0-95%RH@40℃
Stability :
±0.2% URL/ 5 years
Reference accuracy :
±0.1%URL
Pressure types :
Gauge pressure
Description

Product Description

Measuring range and limit
Nominal value Smallest calibratable span Lower range limit (LRL) Upper range limit (URL) Overload limit
6kPa 1kPa -6kPa 6kPa 25MPa
40kPa 2kPa -40kPa 40kPa 25MPa
250kPa 12.5kPa -100kPa 250kPa 25MPa
1MPa 50kPa -100kPa 1MPa 25MPa
3MPa 150kPa -0.1MPa 3MPa 25MPa
*10MPa 500kPa -0.1MPa 10MPa 25MPa
40MPa 5MPa -0.1MPa 40MPa 42MPa
*The norminal value of PS131-TSR-H ≤ 10MPa

Stainless Steel Welding Seal FKM Digital Pressure Switch

Each of our products is subject to below testing process:

1.Automatic temperature compensation to ensure the temperature influence effects.

2.Automatic linear calibration to ensure linear precision.

3.Real-time online aging system to ensure the time drift performance.

4.Pressure cycling impact tests to ensure long-term stability.
