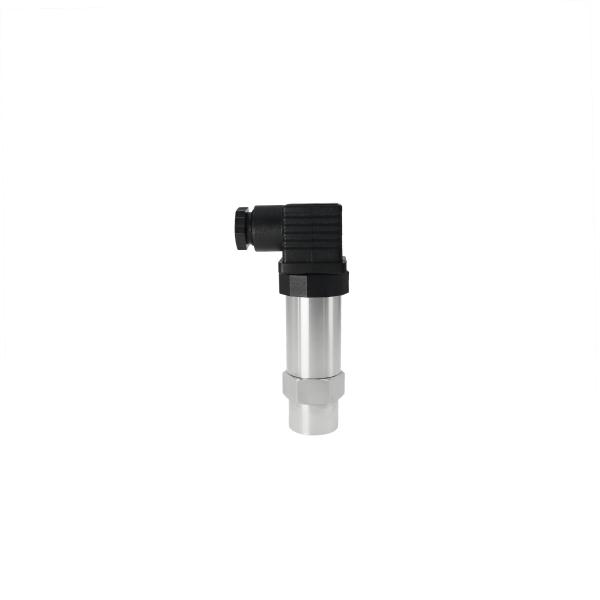

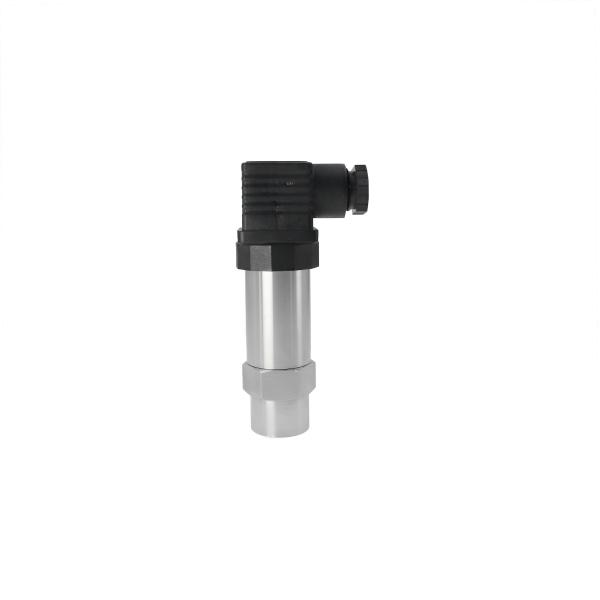

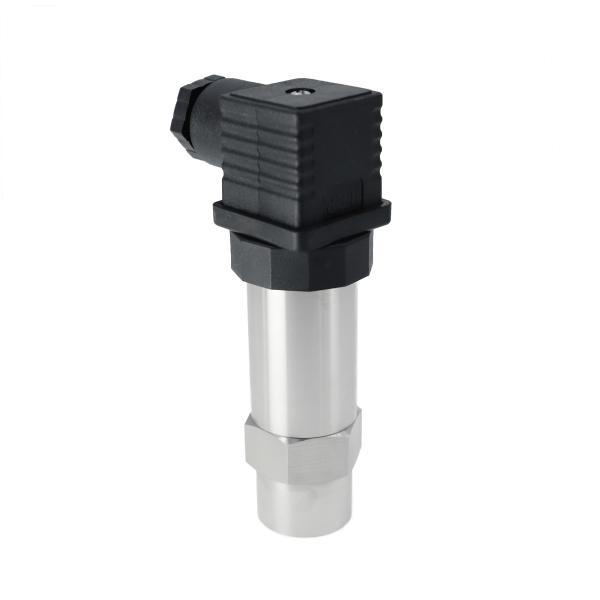

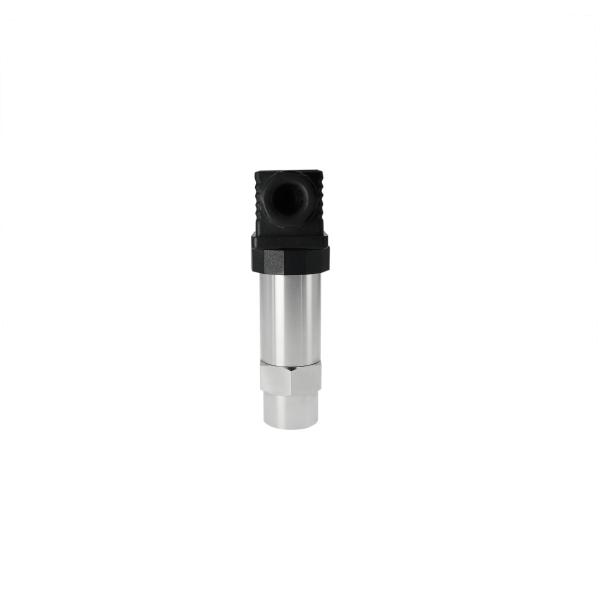

Smart SS316L 28VDC High Accuracy Pressure Transmitter
Smart SS316L 28VDC High Accuracy Pressure Transmitter
Smart SS316L 28VDC High Accuracy Pressure Transmitter
Smart SS316L 28VDC High Accuracy Pressure Transmitter
Smart SS316L 28VDC High Accuracy Pressure Transmitter
Smart SS316L 28VDC High Accuracy Pressure Transmitter
Smart SS316L 28VDC High Accuracy Pressure Transmitter
Smart SS316L 28VDC High Accuracy Pressure Transmitter
Specifications
Brand Name :
Sier
Model Number :
SPT21
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 piece
Price :
USD25~50/Piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces each month
Delivery Time :
7
Packaging Details :
Carton
Housing :
SS304
Pressure port :
SS304
Diaphragm :
SS316L
Sealing gasket :
Viton
Plug housing :
Plastic
Housing protection :
IP65
Application temp. :
-30~80℃
Description
Smart SS316L 28VDC High Accuracy Pressure Transmitter
SPT21 Pressure Transmitter
Features
➢ Easy applicationSmart SS316L 28VDC High Accuracy Pressure Transmitter
➢ Short protection
➢ Gauge, absolute and sealed gauge optional
➢ Offset and full scale adjustable
Specification
Pressure range -0.1…0～0.01…100MPa (-1…0~0.1…1000bar)
Over pressure 1.5 times FS or 110MPa (min. value is valid)
Pressure type Gauge/absolute/sealed gauge optional
Process connection G1/4 male thread (or as per customer’s requirement)
Accuracy ±0.25％FS, ±0.5％FS optional
Long term stability max. ±0.3%FS/year
Offset thermal drift 0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
Span thermal drift 0.1%FS/℃(≤100kPa)； 0.05%FS/℃(＞100kPa)
Compensated temp. 0~50℃
Application temp. -30~80℃
Storage temp. -40~120℃
Power supply 12~28VDC
Output signal 4~20mADC(2 wires) 0/1~5VDC(3 wires)
Load resistance ≤(U-12)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection IP65
Electrical connection DIN43650 plug/M12 connector
Construction and Outline Dimension
Construction material:
Housing SS304
Pressure port SS304
Diaphragm SS316L
Sealing gasket Viton
Plug housing Plastic
Smart SS316L 28VDC High Accuracy Pressure Transmitter
Smart SS316L 28VDC High Accuracy Pressure TransmitterSmart SS316L 28VDC High Accuracy Pressure Transmitter
Smart SS316L 28VDC High Accuracy Pressure Transmitter

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 7 days if the goods are in stock, it's according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: T/T in advance.
