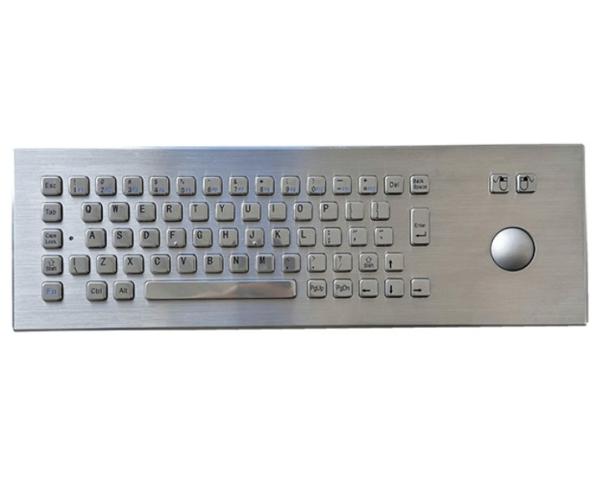

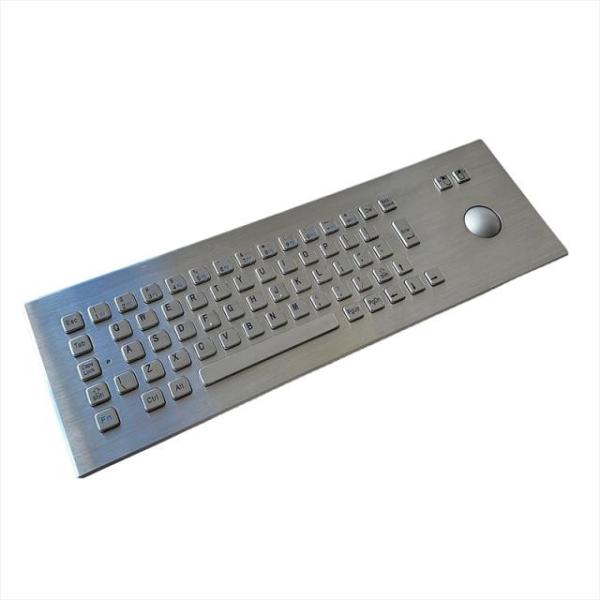

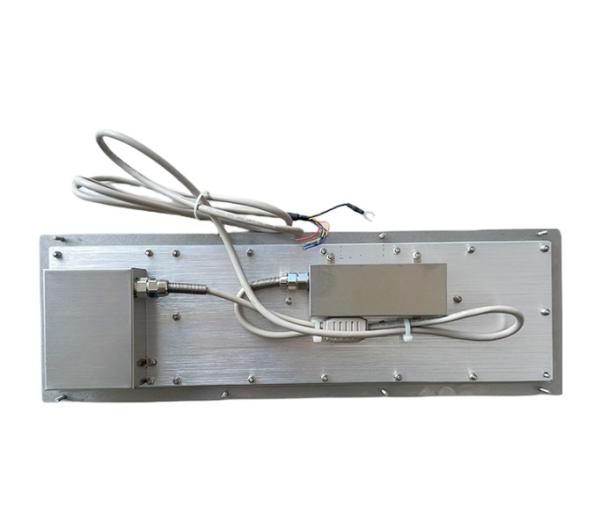

IP65 / IK07 Industrial Keyboard Stainless Steel Explosion Proof With 38mm Trackball
IP65 / IK07 Industrial Keyboard Stainless Steel Explosion Proof With 38mm Trackball
IP65 / IK07 Industrial Keyboard Stainless Steel Explosion Proof With 38mm Trackball
IP65 / IK07 Industrial Keyboard Stainless Steel Explosion Proof With 38mm Trackball
IP65 / IK07 Industrial Keyboard Stainless Steel Explosion Proof With 38mm Trackball
IP65 / IK07 Industrial Keyboard Stainless Steel Explosion Proof With 38mm Trackball
IP65 / IK07 Industrial Keyboard Stainless Steel Explosion Proof With 38mm Trackball
IP65 / IK07 Industrial Keyboard Stainless Steel Explosion Proof With 38mm Trackball
Specifications
Model Number :
F3-TB38-D
Place of Origin :
China(Mainland)
MOQ :
2
Price :
negotiable
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
10000 pieces per month
Delivery Time :
5-10 working days
Packaging Details :
negotiable
Material :
SUS304 Stainless-steel
feature :
waterproof, dustproof, explosionproof
colour :
as picture
Keyswitch lifespan :
more than 2 million of operations.
Weight :
1550g per piece
Operating temperature :
-40℃～+65℃
Protection Level :
IP65 / IK07
Keyboard Language :
Defult keyboard language is US and support customized different languages
Description

1. Technical Specifications

The keyboard has waterproof, dustproof & explosion proof features ( IP65 / IK07 ).

Over 2million times key life cycle.

Integrate with 38mm stainless steel trackball.

The panel board and keys are made by SUS304 Stainless-steel ( SUS316 is for option ).

USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.

2. Mechanical Features

Panel board and keys material: SUS304 Stainless-steel

Base board material: Aluminum alloy

Key life cycle: 2mil min.

Key press force: 2~3N

Key travel length: 2MM

Dimensions: 416*134*55MM

Weight: 1550g

3. Environmental adaptability

Op. Temp: -40℃～+65℃,

Op. RH: 10～95%

Storage temperature: -40℃～+75℃

Storage RH: 5～95%

Protection grade: IP65 / IK07

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

4. Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

5. Installation drawing

IP65 / IK07 Industrial Keyboard Stainless Steel Explosion Proof With 38mm Trackball

6. APPLICATION SITE
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

If you have any question about this items,please feel free to contact us for further information.
