1.Technical Specifications

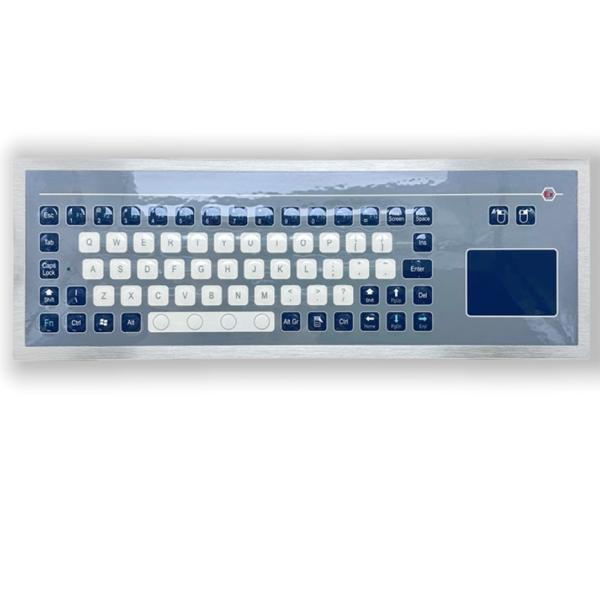

​Product Type:​​ Industrial Membrane Keyboard

​Key Feature:​​ Integrates a fully functional 2-key touchpad

​Protection Rating:​​ Designed with IP67/IK07 rated waterproof, dustproof, and explosion-proof features

​Surface:​​ One-piece matte membrane on top

​Optional Material:​​ Anti-static material available as an option

​Layout:​​ 71 keys

​Durability:​​ Over 2 million key press lifecycle

​Design:​​ Compact and highly reliable

​Maintenance:​​ Simple to sanitize and maintain

​Interface:​​ USB port (Type-A)

​Compatibility:​​ Plug & play for common operating systems (MS-Windows, MacOS, Unix, Linux, ArmOS, Android)

2.Mechanical Features

Panel board material: PET

Base board material: Aluminum alloy

Key life cycle: 2million min.

Key press force: 2~3N

Key travel length: 0.6MM

Dimensions: 412.1*144.3*18MM

Weight: 680g

3.Environmental adaptability

Operating temperature: -40℃～+65℃,

Op. RH: 10～95%

Storage temperature: -40℃～+75℃

Storage RH: 5～95%

Protection grade: IP67 / IK07

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

4.Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

5. Installation drawing

6.APPLICATION SITE

This keyboard is primarily designed for deployment in unattended or lightly monitored settings across diverse access control and public interface systems. It is ideally suited for information kiosks on campuses, web terminals in retail complexes and hospitality venues, automated ticketing dispensers, fuel service points, financial institutions, transit hubs such as airports and train stations, along with other high-traffic public environments. Additional typical applications include self-service banking equipment (ATMs/CDMs) and public internet telephony units.

7. more pictures:

8.Please note:

All product images are photographs of the actual item. Slight color variations may occur due to lighting during photography, monitor color settings, and digital display calibrations. The actual product color should be considered final.

If you have any question about this items,please feel free to contact us for further information,thank you.
