Industrial Membrane Keyboard with IP67/IK07 Protection, 2 Million Keystroke Life Cycle, and One-Piece Matte Membrane Design
Industrial Membrane Keyboard with IP67/IK07 Protection, 2 Million Keystroke Life Cycle, and One-Piece Matte Membrane Design
Specifications
Certification :
CE/ROHS/FCC
Dimensions :
412.1*144.3*18MM
Price :
negotiable
Packaging Details :
negotiable
Support customization :
Yes
Delivery Time :
5-10 working days
feature :
waterproof, dustproof, explosionproof
Material :
PET(Panel board )
Place of Origin :
China(Mainland)
MOQ :
2
Model Number :
F8-TP-C
Keyswitch lifespan :
more than 2 million of operations.
Supply Ability :
10000 pieces per month
colour :
as picture
Protection Level :
IP67 / IK07
Payment Terms :
L/C,D/A,T/T,Western Union
Weight :
680g per piece
Operating temperature :
-40℃～+65℃
Keyboard Language :
Defult keyboard language is US and support customized different languages
Description

1.Technical Specifications

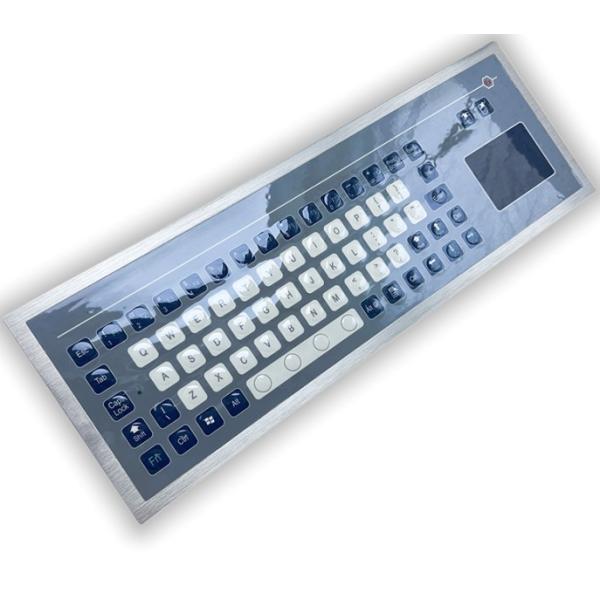

PET Panel Mounted Keyboard Industrial Custom Membrane Keyboard With Touch Pad

Industrial membrane keyboard, integrates with full functional 2-key touch pad.

It is designed with IP67/IK07 rated waterproof, dustproof & explosionproof features.

It has a one-piece matte membrane on top, anti-static material optional.

71 keys, over 2 million key life cycle. Compact design and highly reliable.

It is simple to sanitize and maintain.


2.Mechanical Features & 3.Environmental adaptability

Panel board material PET
Base board material Aluminum alloy
Key life cycle 2million min
Key press force 2~3N
Key travel length 0.6MM
Dimensions 412.1*144.3*18MM
Weight 680g
Operating temperature -40℃～+65℃
Op. RH 10～95%
Storage temperature -40℃～+75℃
Storage RH 5～95%
Protection grade IP67 / IK07


EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV


4.Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.


5. Installation drawing

Industrial Membrane Keyboard with IP67/IK07 Protection, 2 Million Keystroke Life Cycle, and One-Piece Matte Membrane Design


6.APPLICATION SITE
USB port (Type-A) interface, plug & play for common operating systems, such as MS-Windows, MacOS, Unix, Linux, ArmOS, Android. This keyboard is primarily intended for use in unsupervised or semi-supervised positions of various access applications, information kiosks at universities, internet terminals and shopping malls, hotels, ticket vending machines, gas stations, banks, airports, railway stations and other public areas, cash machines (ATMs/CDM), internet public phones, etc.


7. more pictures:


Industrial Membrane Keyboard with IP67/IK07 Protection, 2 Million Keystroke Life Cycle, and One-Piece Matte Membrane DesignIndustrial Membrane Keyboard with IP67/IK07 Protection, 2 Million Keystroke Life Cycle, and One-Piece Matte Membrane DesignIndustrial Membrane Keyboard with IP67/IK07 Protection, 2 Million Keystroke Life Cycle, and One-Piece Matte Membrane DesignIndustrial Membrane Keyboard with IP67/IK07 Protection, 2 Million Keystroke Life Cycle, and One-Piece Matte Membrane Design


8.Please note:

All product images are photographs of the actual item. Slight color variations may occur due to lighting during photography, monitor color settings, and digital display calibrations. The actual product color should be considered final.


If you have any question about this items,please feel free to contact us for further information,thank you.
