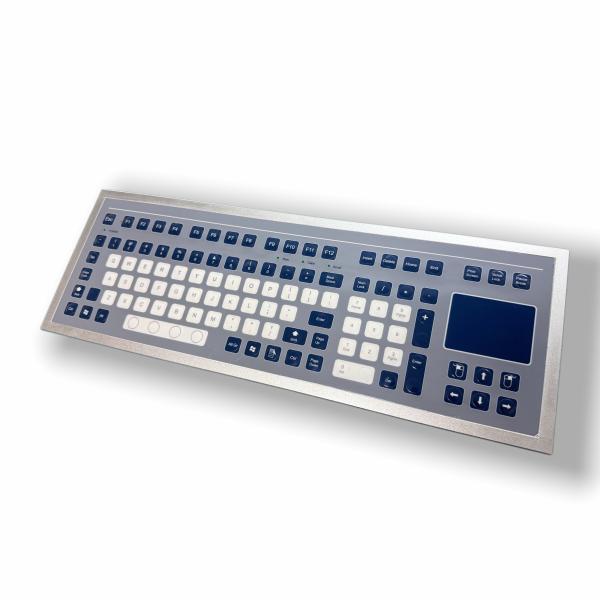

Industrial Membrane Keyboard with 105-key layout and touchpad featuring IP67/IK07-rated protection and USB interface
Industrial Membrane Keyboard with 105-key layout and touchpad featuring IP67/IK07-rated protection and USB interface
Specifications
Model Number :
F8D-TP
Colour :
off-white, OR Dark grey
MOQ :
2
Packaging Details :
PAPER BOX, CARTON
Material :
PET, ALUMIUM
Supply Ability :
2000 PER MONTH
Desk Top :
Yes, Movable (panel Mounting Optional)
Inspection :
CCC
Payment Terms :
PAYPAL,ALIPAY,T/T
Touchpad :
Yes (trackball optional)
Membrane Colour :
Customizable
Price :
US$
USB :
Yes
Certification :
ISO CE
Compatibility :
Windows, Linux, Mac OS
Place of Origin :
CHINA
Functional Keys :
Yes, 12
Resolution :
800 DPI
Operating Temperature :
-40°C to 70°C
Panel Mounted :
yes
Brand Name :
Rich
Scratchproof :
Yes
Description

Accept customization.

For more information pls contact us.

W/A: +8613502800300

eMail: richbank@163.com


Industrial 105keys pc keyboard.

Completely sealed waterproof & dust proof IP67

USB interface.


Technical Specifications

Industrial Membrane Keyboard 105 Keys With Touchpad Waterproof USB

Industrial membrane keyboard with touchpad.

105 keys + 2 touchpad keys, over 2 million key life cycle.

Compact design and highly reliable.

Provides waterproof, dustproof & explosionproof features (IP67/IK07).

Easy to clean and disinfect.

One-piece matte membrane on top, anti-static material optional.

USB port (Type-A) interface, plug & play for common operating systems, such as MS-Windows, MacOS, Unix, Linux, ArmOS, Android.


Mechanical Features
Panel board material: PET / Anti-static material is for option
Base board material: Aluminum alloy
Key life cycle: 2mil min.
Key press force: 2~3N
Key travel length: 0.6MM
Dimensions: 464.5*164*18MM
Weight: 980g


Environmental adaptability
Op. Temp: -40℃～+65℃,
Op. RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP67 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV


Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Russian, Arabic etc.
