5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
Specifications
Brand Name :
IRIS
Model Number :
IRIS-G3
Certification :
ISO9000
Place of Origin :
China
MOQ :
1set
Price :
USD9999-USD16,999/Sset
Payment Terms :
T/T
Supply Ability :
5 Set/month
Delivery Time :
5-8 Wokring days
Packaging Details :
Standard export wooden box packaging
Product name :
Large Industrial Metal Melting Furnace
Capacity :
5T
Power :
2500kw
Input Voltage :
6Φ 750V 50HZ/ 60HZ
Electric Power Consumption :
530
Water circulation :
100t/h
Maximum temperature :
1800℃
DC current :
1000A
Description

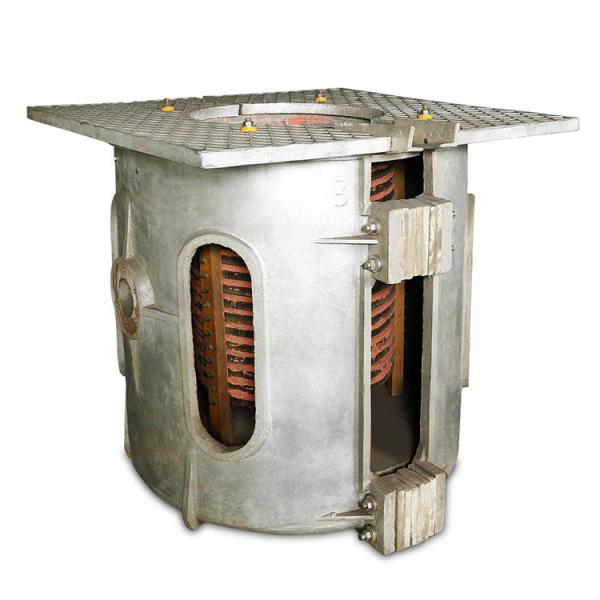

Large Industrial Metal Melting Furnace Induction Equipment Hydraulic Pressure

Induction melting furnace features:


1. Induction melting furnace power can adjust under different melt capacity requirement.
2. Fast melt speed.Can melt Waste iron,steel,aluminum cans ,lead,etc all kinds of metals.
3. Steel and Aluminum structure furnace body design.Work stable.
4. Machine have multiple protection.With Good magnetic isolation,safe and reliable;
5. Induction melting furnace are most used in foundry factory,rolling mill etc.
6. Induction melting furnace are customized under customer's workshop size.and working environment ,customer's special requirement.
7. Machine most used in foundry factory,to use the waste iron recycling to produce ingots.

5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment

Technical parameter of Large Industrial Metal Melting Furnace Induction Equipment Hydraulic Pressure

Model KGPS-300 KGPS-500 KGPS-1200 KGPS-1400 KGPS-2000 KGPS-4500
Rated power 300KW 500KW 1200KW 1400KW 2000KW 4500KW
Rated capacity 350kg 750kg 1500kg 2000kg 3000kg 6000kg
Matching transformer’s capacity 315KVA 630KVA 1250KVA 1800KVA 2500KVA 5500KVA
Input voltage 380V 50-60HZ 750V 50HZ 750V 50HZ 6x750V 50HZ 6x750V 50HZ
MF frequency 1000HZ 1000HZ 800HZ 500HZ 500HZ 300HZ
MF voltage 750V 750V 1400V 1480V 1460V 4800V
DC voltage 500V 500V 990V 990V 990V 1350V
DC current 600A 1000A 1000A 1410A 1010A 3300A
Maximum temperature 1800℃

Power protection measures include:

  • Main circuit short circuit protection and phase protection
  • Main circuit over-current protection
  • High voltage protection of the power grid
  • Low grid voltage protection
  • Cooling water temperature protection and pressure protection,Low cooling water flow protection
  • SCR overvoltage over-current protection
  • Inverter thyristor current rise rate high protection
  • Inverter commutation time insufficient protection
  • Inverter thyristor reverse turn-off voltage insufficient protection


5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment

5000kg Large Industrial Melting Furnace 2500kw Induction Melting Equipment
