Laser Control Size And Diameter Measuring Device For Transparent Material And Pipe
Laser Control Size And Diameter Measuring Device For Transparent Material And Pipe
Specifications
Brand Name :
HTTS
Model Number :
LDM-10B
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 sets / week
Delivery Time :
5-8 work days
Packaging Details :
export carton packing
Precision :
±1μm
Repeatability error :
±1μm
Resolution :
0. 001mm
Model :
LDM-10B
Measuring range :
0.1000~10mm
Color :
AS Photo
Type :
Measurement Tool
name :
diameter measuring device
Description

Transparent Material And Pipe Measurement Laser control size and diameter

Introduction

1. non-contact laser diameter measurement, high speed, high accuracy and good repeatability.
2. Real time outside diameter and roundness display, improve quality control and production efficiency, reduce the waste of materials.
3. Various digital and analog control signal functions, to achieve fully automated production.
4. Various preset functions,nominal value, the upper and lower tolerance, alarm control presets, easy to operate.
5. Standard data port connection ready,compatible software for data analysis development convenience.

Specification

Type Measuring range Precision Repeatability error Resolution
LDM-10B 0.100~10mm ±1μm ±1μm 0. 001mm

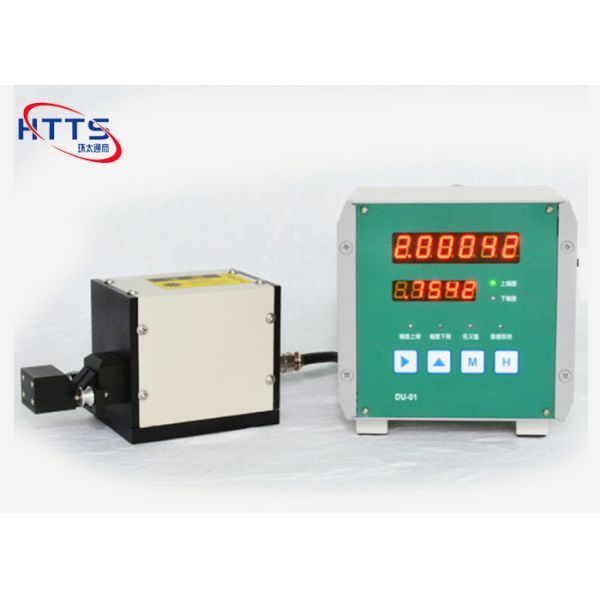

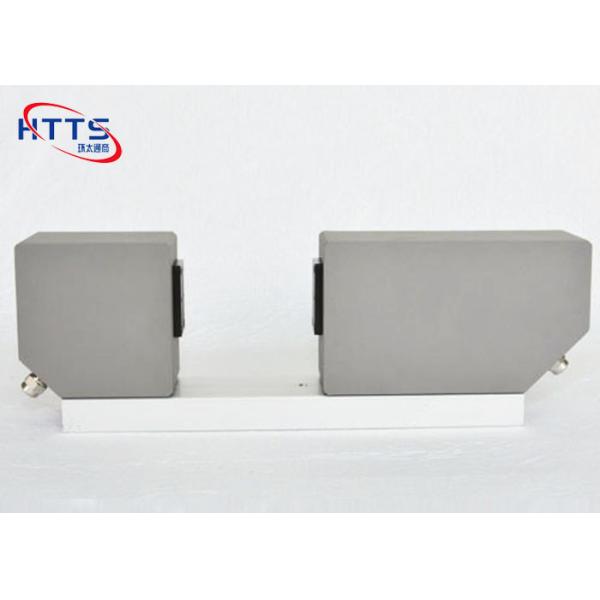

More Pictures
