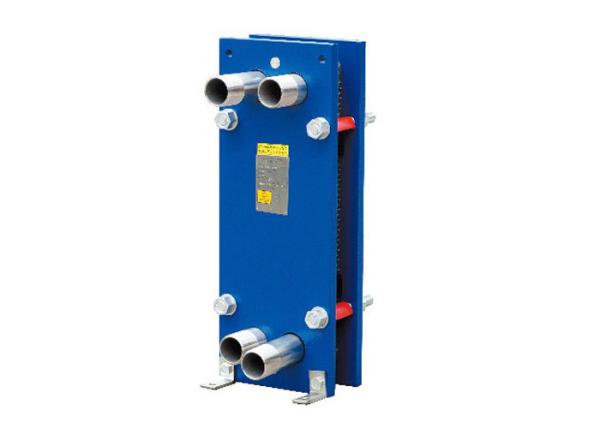

Water Industrial Oil Cooler Detachable BB60T DN65 Flange Thread EPDM/NBR Seal
Water Industrial Oil Cooler Detachable BB60T DN65 Flange Thread EPDM/NBR Seal
Specifications
Brand Name :
DANIEL
Model Number :
OE-BB30
Place of Origin :
OE-BB30
MOQ :
1 piece
Price :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 set / 30 days
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden box packing /Negotiable
Product :
BB60T detachable plate heat exchanger
Material :
SS 304/316L
The MAX number of pieces assembled :
150
Seal :
EPDM/NBR/HNBR/VITON/FPM etc.
Connection Type :
Flange, thread, type
Pressure :
Pressure
Description

Industrial detachable plate heat exchanger BB60T DN65 flange/ thread takeover SS316L/304

The detachable plate heat exchanger adopts high-quality plates and seals to ensure that the fluid does not leak under the pressure range and maintain excellent heat exchange capacity. Sealed materials are available in a variety of options to suit different media, and the interface can be selected or customized to suit the customer's installation.

Water Industrial Oil Cooler Detachable BB60T DN65 Flange Thread EPDM/NBR Seal

Technical data

Water Industrial Oil Cooler Detachable BB60T DN65 Flange Thread EPDM/NBR Seal

NO. Item Data
1 Type BB60T
2 the thickness of the plate 0.5/0.6mm
3 Plate corner hole size 65mm
4 Maximum processing flow 45m³/h
5 Port size DN65
6 Work pressure 1.0/0.6Mpa
7 Test pressure 1.3/2.1Mpa

Dimensions

Type Standard maximum flow Maximum number of pieces N Compression size A Maximum length LC
m³/h - mm mm
BB60T 45 150 N*(3.95+X) 1200

The compression size is A, and the thickness of the plate is X.
