Industrial Ridgid Hydraulic Power Tools Safety PMU Drive Shaft Sufficient Safety Redundancy At Full Load
Industrial Ridgid Hydraulic Power Tools Safety PMU Drive Shaft Sufficient Safety Redundancy At Full Load
Industrial Ridgid Hydraulic Power Tools Safety PMU Drive Shaft Sufficient Safety Redundancy At Full Load
Industrial Ridgid Hydraulic Power Tools Safety PMU Drive Shaft Sufficient Safety Redundancy At Full Load
Industrial Ridgid Hydraulic Power Tools Safety PMU Drive Shaft Sufficient Safety Redundancy At Full Load
Industrial Ridgid Hydraulic Power Tools Safety PMU Drive Shaft Sufficient Safety Redundancy At Full Load
Specifications
Brand Name :
SOMA
Model Number :
PMU-
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 set / 30 days
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden packing
Material :
Aerospace high-tech aluminum-titanium alloy
Recommended use of metric bolts :
M8-M30,M16-M42,M20-M48M22-M56,M48-M80,M52-M90,M64-M120
Description

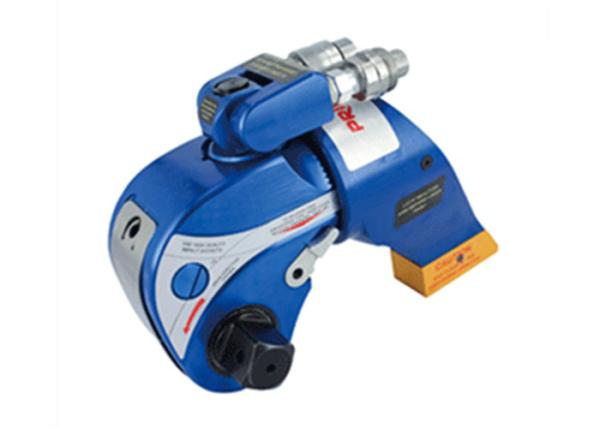

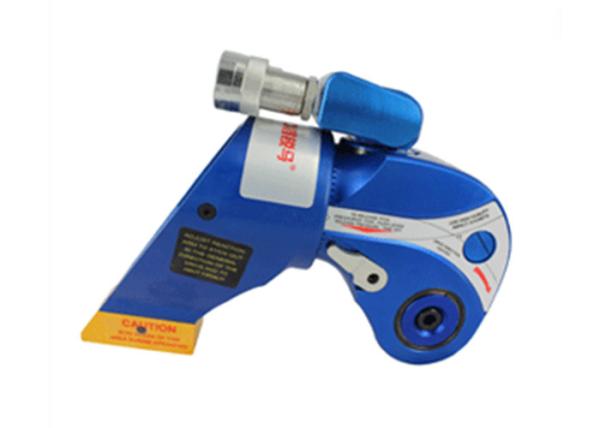

PMU drive shaft hydraulic wrench

Features

Industrial Ridgid Hydraulic Power Tools Safety PMU Drive Shaft Sufficient Safety Redundancy At Full Load

  • The ratchet and pawl are coarse-toothed and have sufficient safety redundancy at full load.
  • Adopting aerospace high-tech aluminum-titanium alloy material, so it has high strength and light weight
  • One-piece body, 360°×180° tubing rotary joint
  • 360 degree 60-point fine-tuning reaction arm, so it is able to adapt to a variety of complex applications
  • Unique anti-reverse check engine to overcome the phenomenon of wrench reversal caused by bolt deformation rebound
  • There is a crisp clinking sound for each trip, which is easy for the operator to control.

Details

Industrial Ridgid Hydraulic Power Tools Safety PMU Drive Shaft Sufficient Safety Redundancy At Full Load

Specifications

Type Drive shaft size(in) Recommended use of metric bolts Minimum torque (Nm) Maximum torque (Nm) Output accuracy Repeatability accuracy Weight (Kg)
PMU-1 3/4 M8-M30 182 1820 ±3% 100% 1.8
PMU-3 1 M16-M42 425 4250 ±3% 100% 3.8
PMU-5 1-1/2 M20-M48 741 7415 ±3% 100% 6.5
PMU-10 1-1/2 M22-M56 1526 15260 ±3% 100% 11.3
PMU-20 2-1/2 M48-M80 2678 26785 ±3% 100% 16.4
PMU-25 2-1/2 M52-M90 3575 35758 ±3% 100% 19.7
PMU-35 2-1/2 M64-M120 5160 51600 ±3% 100% 35.2

Industrial Ridgid Hydraulic Power Tools Safety PMU Drive Shaft Sufficient Safety Redundancy At Full Load

Type L1(mm) L2(mm) L3(mm) H1(mm) H2(mm) H3(mm) H4(mm) R1(mm)
PMU-1 124 186 105 50 72 93 125 25
PMU-3 161 243 135 67 97 124 156 33
PMU-5 194 293 163 80 125 149 183 40
PMU-10 242 365 202 100 143 186 224 50
PMU-20 294 444 248 120 180 223 260 60
PMU-25 313 461 251 137 200 247 296 66
PMU-35 348 550 316 153 218 281 335 76
