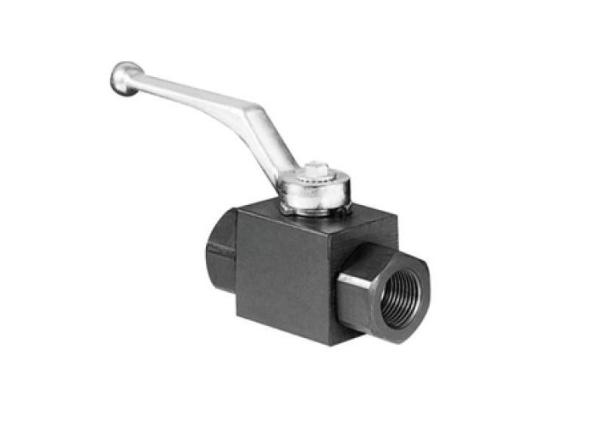

High Pressure Hydraulic Ball Valves , Hydro Valve Ball Valve Mounting Hole Threaded
High Pressure Hydraulic Ball Valves , Hydro Valve Ball Valve Mounting Hole Threaded
Specifications
Brand Name :
ROYAL
Model Number :
OE-C- BKH/SKH
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 set / 30 day
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden box packing /Negotiable
Product :
High pressure ball valve with mounting hole
Material :
Carbon steel and stainless steel
Diameter :
DN4-25
Connector seal material :
FPM / EPDM
Ball seat seal :
POM / PEEK
Surface treatment :
Galvanized / blackened
Description

Industrial hydraulic High pressure ball valve with mounting hole BKH/SKH DN4-25 through hole and threaded hole

The position of the mounting hole of the high-pressure ball valve is divided into an upper surface, a lower surface and a side surface, and the type of the mounting hole is divided into a threaded hole and a through hole.

For fixing hole size, please comply with ISO5211/EN12116. Please contact us (DN13-25)

Specifications

High Pressure Hydraulic Ball Valves , Hydro Valve Ball Valve Mounting Hole Threaded

DN

A

(mm)

B

(mm)

G

(mm)

S

(mm)

T

(mm)
4-8 26 18 M5 6 8.5
10 34 24 M6 8 11
13 34 24 M6 8 11
16 34 24 M6 8 11
20 45 38 M6 8 11
25 45 38 M6 8 11

High Pressure Hydraulic Ball Valves , Hydro Valve Ball Valve Mounting Hole Threaded

DN

A

(mm)

B

(mm)

G

(mm)

S

(mm)

T

(mm)
4-8 24 20 M6 - 6
10 34 24 M5 7.5 6.5
3 38 27 M6 7 6.5
6 38 27 M6 7 7
20 51 39 M6 11 8
25 52 48 M6 11 8

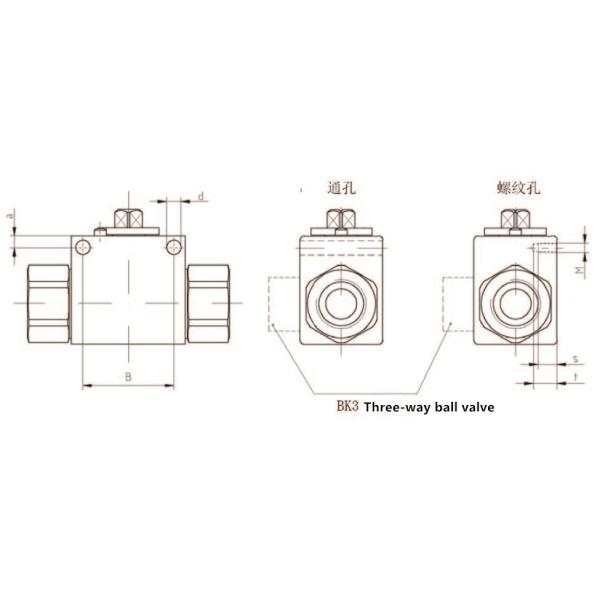

High Pressure Hydraulic Ball Valves , Hydro Valve Ball Valve Mounting Hole Threaded

DN B a d DN B a M s t
mm mm mm mm mm mm mm mm
4-8 26 5 4.5 4-8 24 6 M6 6.5 9
10 32 5 6.5 10 32 5.5 M6 7 10
13 37.5 4.8 6.5 13 36 6 M6 8.5 11
16 37.5 5 6.5 16 32 8 M6 7 10.5
20 45 6.5 6.5 20 45 7.5 M10 12 15
25 45 6 6.7 25 45 7.5 M10 12 15
