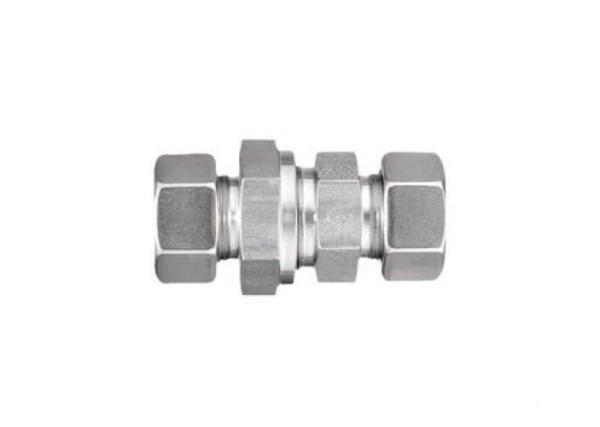

Plumbing Hydraulic Check Valve , End Stainless Steel Non Return Valve NPT External Thread RD Tube
Plumbing Hydraulic Check Valve , End Stainless Steel Non Return Valve NPT External Thread RD Tube
Plumbing Hydraulic Check Valve , End Stainless Steel Non Return Valve NPT External Thread RD Tube
Plumbing Hydraulic Check Valve , End Stainless Steel Non Return Valve NPT External Thread RD Tube
Specifications
Brand Name :
Industrial hydraulic RD series tube end check valve NPT type non-return valves C.S/SS
Model Number :
OE-C- RD
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 set / 30 days
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden box packing /Negotiable
Product :
RD series tube end check valve
Valve material :
C.S/SS
Diameter :
6-42
Seal :
seal
Connection Type :
NPT-NPT
Pressure :
250-315 Bar
Description

Industrial hydraulic RD tube end check valve NPT type non-return valves C.S/SS external thread

◆Material: carbon steel or stainless steel 316Ti, set stainless steel check valve after the model plus "-SS", such as RD-S16-SS

◆Seal: carbon steel check valve is nitrile rubber NBR, stainless steel check valve is fluoro rubber FPM

◆Valve opening pressure: standard spring opening pressure is 1bar, if you need other opening pressure 0.2, 0.5, 2, 3bar, you can customize

◆ Connection form: ferrule type, welded type, flared type. Terminal straight form

◆ Working temperature and pressure: The carbon steel check valve is -35 °C ~ +100 °C, the stainless steel check valve is -25 °C ~ +250 °C, the working pressure is shown in the table below.

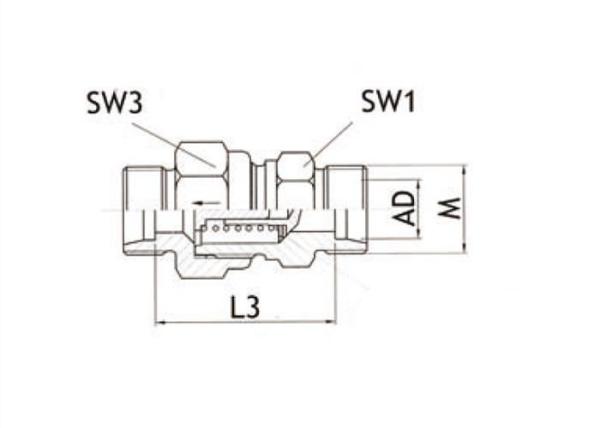

Series Welded type Bite type

Check valve

model

 pressure Pipe diameter
bar AD L1 L2 L3 SW1 SW2 SW3 M
L-series W- C- RD-L06 315 6 92.0 59.0 29.0 17 14 19 M12×1.5
W- C- RD-L08 8 93.0 60.0 30.0 22 17 24 M14×1.5
W- C- RD-L10 10 107.5 70.5 40.5 24 19 27 M16×1.5
W- C- RD-L12 12 110.5 73.5 43.5 27 22 32 M18×1.5
W- C- RD-L15 15 123.5 77.5 47.5 32 27 36 M22×1.5
W- C- RD-L18 250 18 130.5 84.5 51.5 38 32 41 M26×1.5
W- C- RD-L22 22 143.5 94.5 61.5 46 36 50 M30×2
W- C- RD-L28 28 158.5 102.5 69.5 55 41 60 M36×2
W- C- RD-L35 35 176.5 117.5 74.5 65 50 70 M45×2
W- C- RD-L42 42 178.0 120.0 74.0 65 60 70 M52×2
S-series W- C- RD-S06 400 6 98.5 64.5 34.5 17 17 19 M14×1.5
W- C- RD-S08 8 98.5 64.5 34.5 17 19 19 M16×1.5
W- C- RD-S10 10 107.5 73.5 40.5 22 22 24 M18×1.5
W- C- RD-S12 12 109.5 75.5 42.5 24 24 27 M20×1.5
W- C- RD-S14 315 14 127.5 83.5 47.5 27 27 32 M22×1.5
W- C- RD-S16 16 131.5 87.5 50.5 32 30 36 M24×1.5
W- C- RD-S20 250 20 148.5 97.5 54.5 38 36 41 M30×2
W- C- RD-S25 25 165.5 106.5 58.5 46 46 50 M36×2
W- C- RD-S30 30 184.5 122.5 69.5 55 50 60 M42×2
W- C- RD-S38 38 203.5 137.5 75.5 65 60 70 M52×2
