Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering
Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering
Specifications
Brand Name :
Hengli
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 set / 30 days
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden packing
Flow :
0~1000L/min
Pressure :
0~50MPa
Stroke :
0~30mm
Description

Mobile valves performance test bench

Mobile valves performance test bench can be used to test mobile sectional valve applied on engineering machinery(20 ton), we do test unload valve, pressure relief valve, spool movement, pressure drop, internal leakage and switch durability test.

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

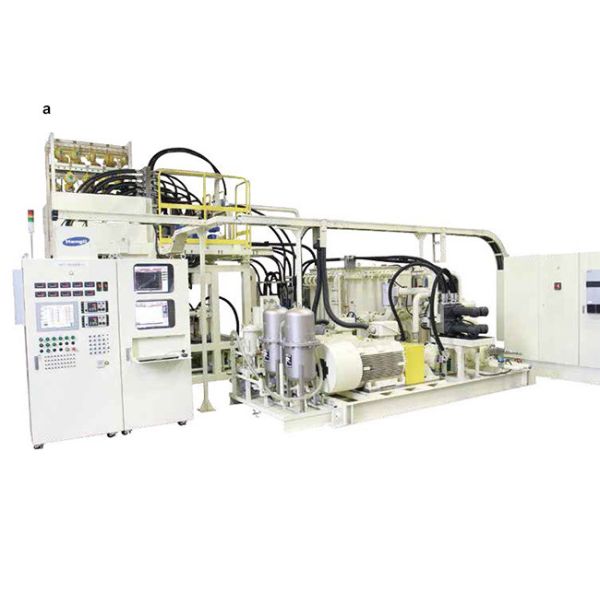

a. Mobile valves performance test bench panorama

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

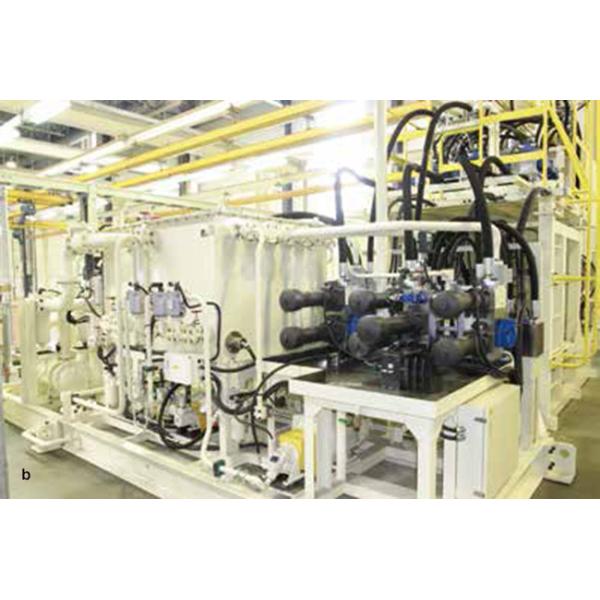

b. Oil source

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

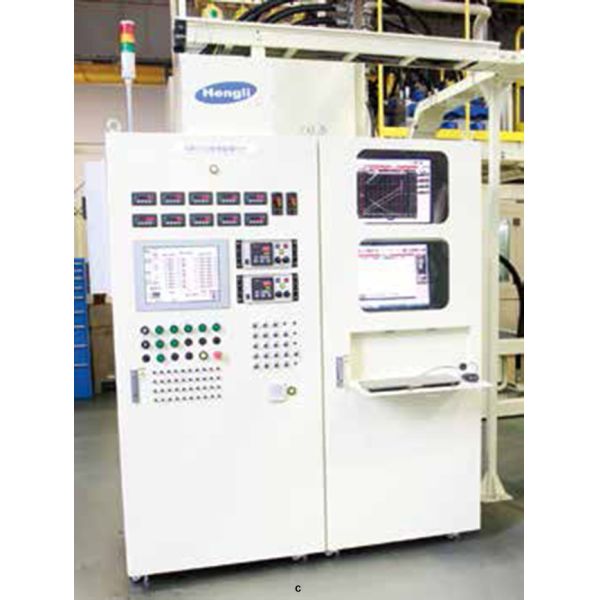

c. Operation cabinet

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

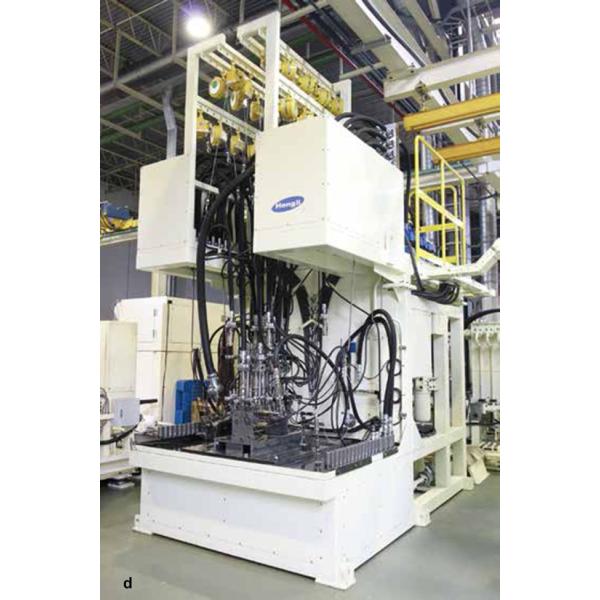

d. Test bench

Detection and control

Item object Range Precision
Test Flow P TS A B port 0~525L/min ±0.5%
T port 0~1000L/min ±0.5%
S port 0~18L/min ±0.5%
Pressure PPC T TS port 0~5MPa ±0.01MPa(system)
P LS A B port 0~50MPa ±0.01MPa(system)
Stroke Spool stroke 0~30mm ±0.01MPa
Leakage Internal leakage 0.00~50cc/min (culumative measurement) ±0.005cc
50~2000cc/min (instantaneous measurement) ±0.005cc
Control Flow P port (large flow) 10~720L/min ±0.5L/min
P port (low flow) 0~100L/min ±0.1L/min
Pressure P A B port 2~42MPa ±0.01MPa
PPC 0~5MPa ±0.01Mpa

Specification

circuitv Maximum flow (L/min) Maximum pressure(MPa)
P1 360 42
P2 360 42
External pilot 33 7
Leakage circuit 24 35
Control circuit 20 7
Loop circuit 375 1
Load circuit 500 35

Test interface

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

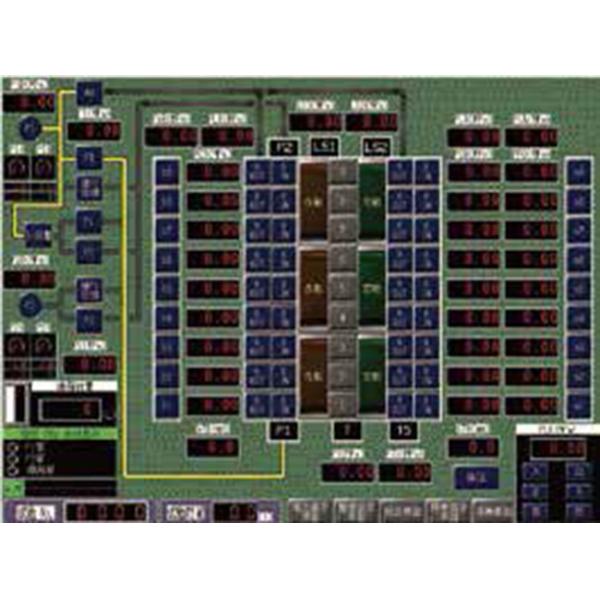

PLC meter in Circuit generation interface

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

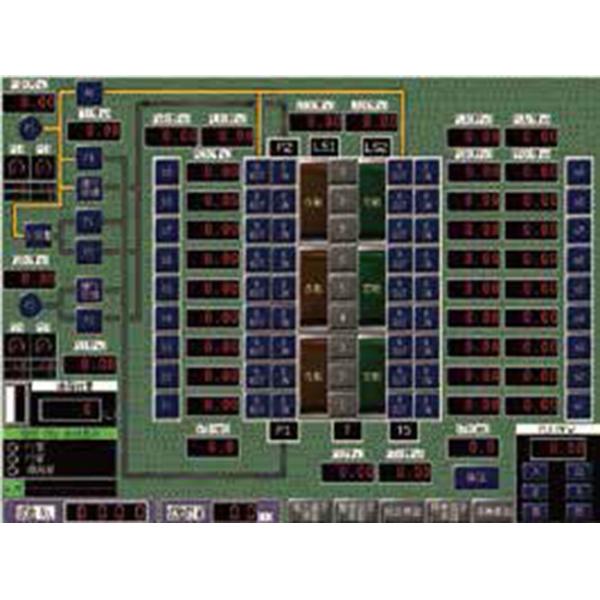

PLC meter out Circuit generation interface

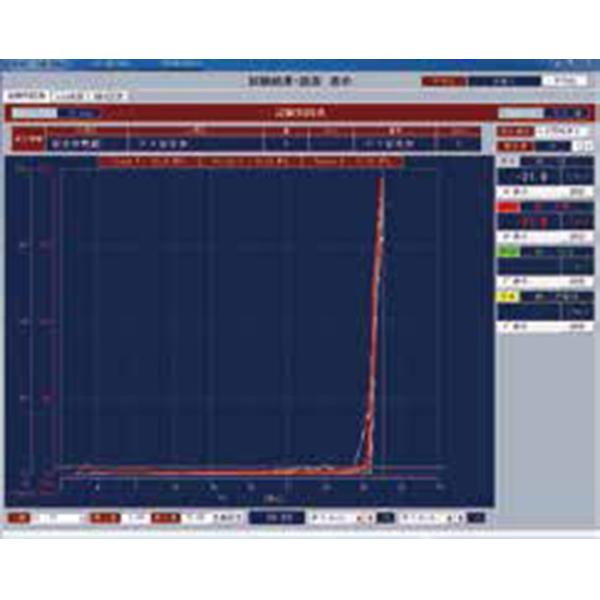

Test curve

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

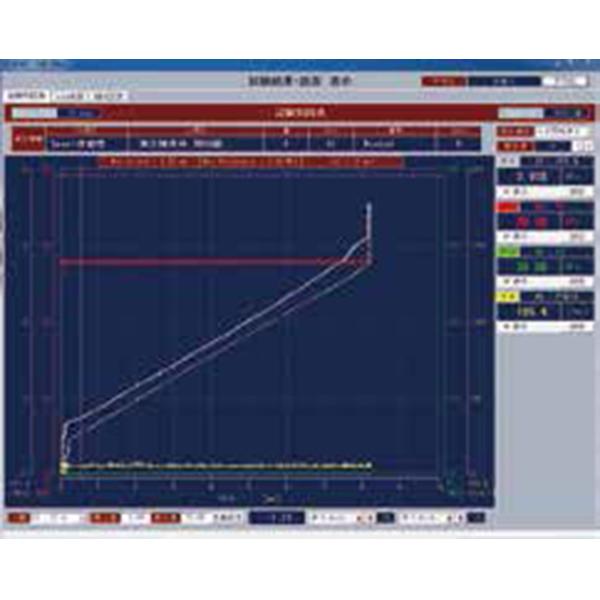

Safety valve

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

P load stroke characteristics

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

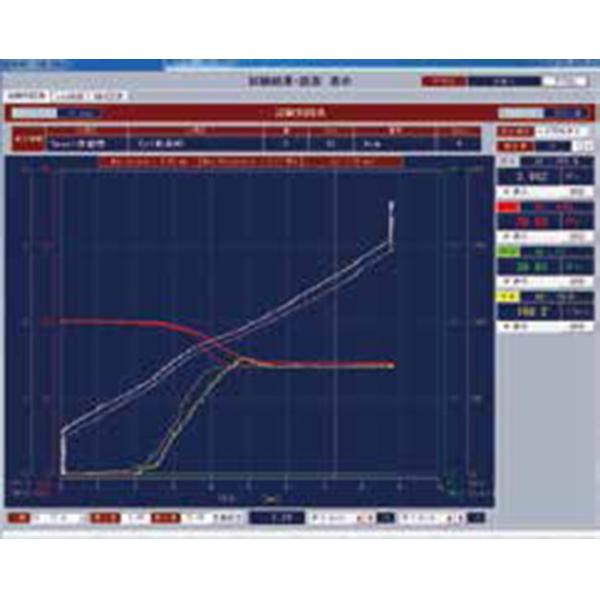

Cylinder load stroke characteristics

Heavy Duty Hydraulic Power Unit To Test Mobile Sectional Valve Engineering

Compound action
