Threaded Hydraulic Pipe Joint Powerful Reusable Hydraulic Plumbing GRI Series
Threaded Hydraulic Pipe Joint Powerful Reusable Hydraulic Plumbing GRI Series
Specifications
Brand Name :
ROYAL
Model Number :
OE-C-GRI
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 set / 30 days
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden box packing /Negotiable
Product :
Stud adaptor tube threaded joints
Material :
304, 316, Carbon steel
Pipe diameter :
G3/8-G2, G1/8-G1/2
Series :
L、S
Description

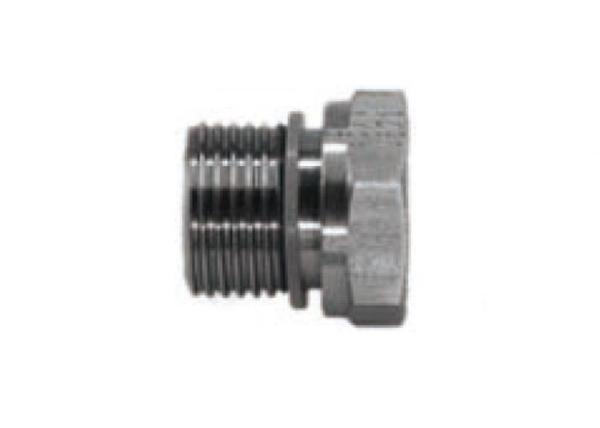

Hydraulic pipe fittings 316 304 Stainless steel stud adaptors tube threaded joints GRI series

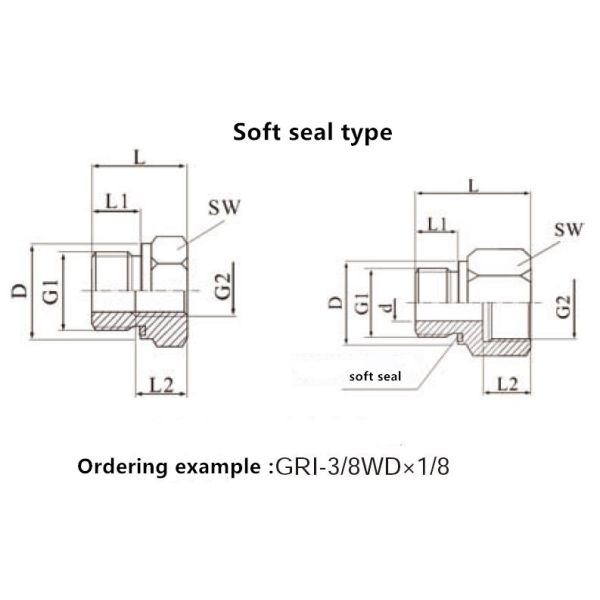

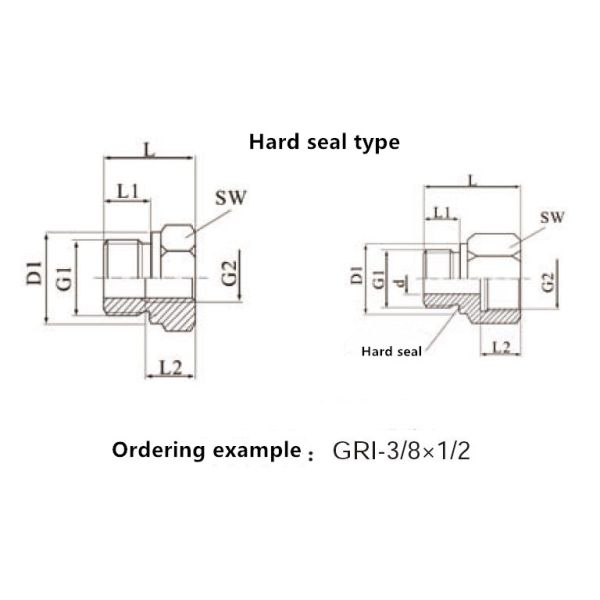

The stud adaptors (internal and external threaded tube couplings)are made of high quality materials (304, 316, carbon steel), which are durable and resistant to high pressure. The seal is available in both soft and hard seals. The external thread is made of BSPP inch straight thread and the internal thread is made of G thread.

Specifications

Pressure G G1 L L1 L2 SW Type
630 G3/8 G1/8 22,5 12,0 8,0 22 GRI-3/8WD x 1/8-SS304
400 G1/2 G1/4 24,0 14,0 12,0 27 GRI-1/2WD x 1/4-SS304
630 G1/2 G1/8 24,0 14,0 8,0 27 GRI-1/2WD x 1/8-SS304
400 G3/4 G3/8 26,0 16,0 13,0 32 GRI-3/4WD x 3/8-SS304
400 G3/4 G1/4 26,0 16,0 12,0 32 GRI-3/4WD x 1/4-SS304
400 G3/4 G1/8 26,0 16,0 8,0 32 GRI-3/4WD x 1/8-SS304
400 G1 G1/2 29,0 18,0 14,0 41 GRI-1WD x 1/2-SS304
400 G1 G3/8 29,0 18,0 12,0 41 GRI-1WD x 3/8-SS304
400 G1 G1/4 29,0 18,0 12,0 41 GRI-1WD x 1/4-SS304
400 G1 1/4 G3/4 32,0 20,0 16,0 50 GRI-1 1/4WD x 3/4-SS304
400 G1 1/4 G1/2 32,0 20,0 14,0 60 GRI-1 1/4WD x 1/2-SS304
250 G1 1/4 G3/8 32,0 20,0 17,0 50 GRI-1 1/4WD x 3/8-SS304
315 G1 1/2 G1 36,0 22,0 18,0 55 GRI-1 1/2WD x 1-SS304
315 G1 1/2 G3/4 36,0 22,0 16,0 55 GRI-1 1/2WD x 3/4-SS304
315 G1 1/2 G1/2 36,0 22,0 14,0 55 GRI-1 1/2WD x 1/2-SS304
250 G2 G1 1/2 42,0 22,5 18,5 70 GRI-2WD x 1 1/2-SS304
250 G2 G1 1/4 42,0 22,5 18,5 70 GRI-2WD x 1 1/4-SS304
250 G2 G1 42,0 22,5 18,5 70 GRI-2WD x 1-SS304
250 G2 G3/4 42,0 22,5 16,0 70 GRI-2WD x 3/4-SS304
250 G2 G1/2 41,5 22,5 16,0 70 GRI-2WD x 1/2-SS304
Pressure G G1 L L1 L2 SW Type
630 G1/8 G3/8 32,0 8 17,0 24 GRI-1/8WD x 3/8-SS304
630 G1/8 G1/4 31,0 8 17,0 19 GRI-1/8WD x 1/4-SS304
630 G1/4 G3/4 43,0 12 22,0 36 GRI-1/4WD x 3/4-SS304
630 G1/4 G1/2 40,0 12 20,0 27 GRI-1/4WD x 1/2-SS304
630 G1/4 G3/8 36,0 12 17,0 24 GRI-1/4WD x 3/8-SS304
630 G1/4 G1/8 28,0 12 12,0 19 GRI-1/4WD x 1/8-SS304
400 G3/8 G1 46,5 12 24,5 41 GRI-3/8WD x 1-SS304
400 G3/8 G3/4 44,0 12 22,0 36 GRI-3/8WD x 3/4-SS304
630 G3/8 G1/2 41,0 12 20,0 27 GRI-3/8WD x 1/2-SS304
630 G3/8 G1/4 36,0 12 17,0 22 GRI-3/8WD x 1/4-SS304
400 G1/2 G1 1/4 53,0 14 26,5 55 GRI-1/2WD x 1 1/4-SS304
400 G1/2 G1 49,0 14 24,5 41 GRI-1/2WD x 1-SS304
400 G1/2 G3/4 46,0 14 22,0 36 GRI-1/2WD x 3/4-SS304
400 G1/2 G3/8 36,0 14 17,0 27 GRI-1/2WD x 3/8-SS304
315 G3/4 G1 1/2 57,0 16 28,5 60 GRI-3/4WD x 1 1/2-SS304
400 G3/4 G1 1/4 55,0 16 26,5 55 GRI-3/4WD x 1 1/4-SS304
400 G3/4 G1 51,0 16 24,5 41 GRI-3/4WD x 1-SS304
400 G3/4 G1/2 41,0 16 20,0 32 GRI-3/4WD x 1/2-SS304
315 G1 G1 1/2 59,0 18 28,5 60 GRI-1WD x 1 1/2-SS304
400 G1 G1 1/4 57,0 18 26,5 55 GRI-1WD x 1 1/4-SS304
400 G1 G3/4 47,0 18 22,0 41 GRI-1WD x 3/4-SS304
315 G1 1/4 G1 1/2 60,0 20 28,5 60 GRI-1 1/4WD x 1 1/2-SS304
400 G1 1/4 G1 52,0 20 24,5 50 GRI-1 1/4WD x 1-SS304
315 G1 1/2 G1 1/4 58,0 22 26,5 55 GRI-1 1/2WD x 1 1/4-SS304

The above models are all made of stainless steel. The suffix plus SS304 is made of stainless steel 304. The addition of SS316 indicates that the material is stainless steel 316. The addition of CF indicates that the material is carbon steel.
