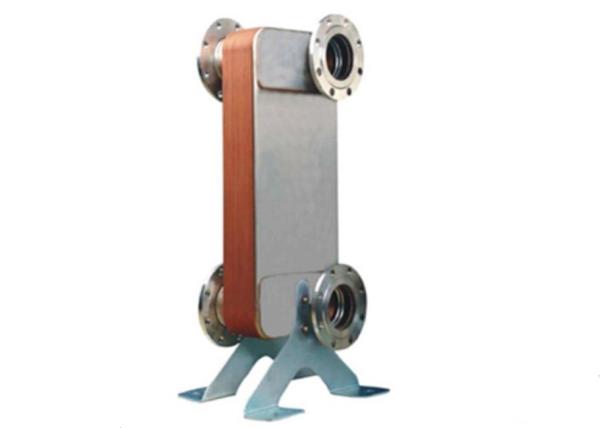

Corrugated Gasketed Plate Heat Exchanger Cross Flow ZLC210 0.21㎡ Clamp Takeover
Corrugated Gasketed Plate Heat Exchanger Cross Flow ZLC210 0.21㎡ Clamp Takeover
Corrugated Gasketed Plate Heat Exchanger Cross Flow ZLC210 0.21㎡ Clamp Takeover
Corrugated Gasketed Plate Heat Exchanger Cross Flow ZLC210 0.21㎡ Clamp Takeover
Specifications
Brand Name :
DANIEL
Model Number :
OE-ZLC2210
Place of Origin :
China
Payment Terms :
T/T, Western Union, MoneyGram
Product :
Brazed plate heat exchanger ZLC210
Material :
SS 316L
Seal :
EPDM/NBR/HNBR/VITON/FPM etc.
Connection Type :
Flange, thread, clamp type
Pressure :
3.5/4.5 Mpa
Temperature :
-160-+200 ℃
Description

Industrial Brazed plate heat exchanger ZLC210 0.21㎡ flange / thread / clamp takeover

Product

Corrugated Gasketed Plate Heat Exchanger Cross Flow ZLC210 0.21㎡ Clamp Takeover

Type Number of plates Pressure＞3.0 Pressure≤3.0 Weight Capacity (L) Heat exchange area
A(mm) Kg D1 D2 D2D 3
ZLC210 n 17+2.85n 13+2.85n 13+0.82n 0.40/2n 0.4/2(n-2) 0.21(n-2)

ZLC210 plate heat exchangers are free to choose the type and number of plates and seals of different materials to cope with different working conditions and media. The product uses high quality 316L stainless steel, which has the characteristics of strong corrosion resistance, long service life and stable operation. In addition, the product has a variety of connection options such as: flange type, internal and external metric thread, internal and external inch thread, clamp type and so on. The product is guaranteed for 2 years and has any problems for free replacement or maintenance.

Technical data

Connection type Flange, thread, clamp type
Welded pipe joint

S407/S411/S413/S414/S520/S521/S923/S925/

S930/S931/SD442/SD966/SD990/SD998
Outer taper thread interface SR520
External straight threaded interface SW404/SW520/SW924/SW930
Inner taper thread interface C404/C406/C410/C514
Internal straight threaded interface SN404
Clamp connection SJ924/SJ930
Flange connection DN100 single flange/ DN100 double flange

NO Item Data
1 Monolithic heat exchange area 0.21㎡
2 Pressure grade 3.0Mpa 4.5Mpa
3 Design pressure 3.0Mpa 4.5Mpa
4 Test pressure 4.5Mpa 6.5Mpa
5 Design temperature -160℃ - +200℃
6 MAX flow of water side 140m³/h
7 The MAX number of pieces assembled 320
8 Plate channel type D/X/H
9 Product structure type B/C
10 Optional material sheet 316L
11 Optional mounting accessories Bolts/ feet/ lifting ears/ temperature measuring tubes

Daniel plate heat exchanger can replace Sweden, the United States, the United Kingdom, and other international big-name PHE. Import frame manufacturers, Japanese sheet raw material suppliers, imported OEM foundry raw rubber and formula, etc.
