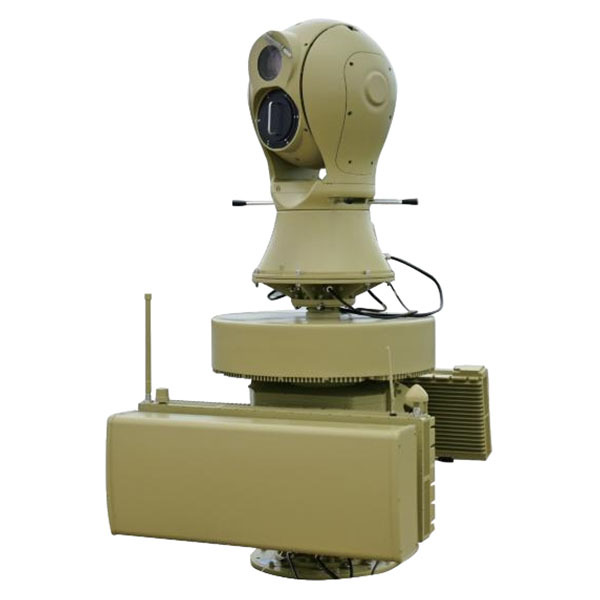

The ZAi‑AS1 is an integrated, enterprise‑class and military‑grade counter‑drone / anti‑drone / anti‑UAV / C‑UAS (Counter‑Unmanned Aerial System) defense platform designed to protect critical airspace against unauthorized, hostile, or intrusive drones.

By combining long‑range RF detection, high‑precision radar surveillance, electro‑optical tracking, full‑band electronic jamming, and GNSS spoofing (deception) into one unified architecture, ZAi‑AS1 forms a complete three‑dimensional drone defense network covering detection, identification, tracking, threat assessment, and neutralization.

The system supports fixed deployment and continuous 24/7 operation in complex environments, providing reliable airspace security for:

• Airports and civil aviation facilities
• Military bases and border security
• Power plants, oil & gas facilities, and substations
• Government buildings and data centers
• Prisons and critical infrastructure
• Ports, industrial parks, and logistics hubs
• Stadiums, large public events, and VIP protection missions

Key Features of the Anti‑Drone System

1. Five‑in‑One Integrated Defense Architecture

ZAi‑AS1 integrates the following counter‑UAV technologies into a single coordinated system:

• RF drone detection module – passive radio monitoring for early warning
• Radar detection module – long‑range, all‑weather drone surveillance
• Electro‑optical (EO/IR) tracking system – visual confirmation and target classification
• Electronic countermeasure (ECM) jammer – multi‑band drone signal suppression
• GNSS spoofing / deception module – navigation interference and controlled takeover

This multi‑sensor fusion design creates a closed‑loop “detect – identify – track – locate – disrupt – control” counter‑drone workflow.

2. All‑Weather, 24/7 Continuous Operation

The anti‑UAV defense system is engineered for uninterrupted operation in harsh environments, including:

• High temperature and low temperature conditions
• Rain, fog, dust, and sand
• Coastal humidity and industrial electromagnetic interference

It ensures continuous airspace monitoring and drone threat mitigation day and night, in both urban and remote locations.

3. Radar + RF + EO Triple‑Layer Detection

ZAi‑AS1 employs a layered sensing strategy to maximize detection probability and reduce false alarms:

• RF detection range: ≥ 5 km
• Radar detection range (UAV): ≥ 5 km
• Electro‑optical detection:
  • Detection distance ≥ 5,000 m
  • Tracking distance ≥ 4,000 m
  • Identification distance ≥ 3,000 m
  • Under visibility > 20 km, humidity < 50% RH, for 0.3 m × 0.3 m UAV targets

This enables early discovery of both remote‑controlled drones and autonomous UAVs, even when operating silently or at low altitude.

4. Full‑Band Drone Signal Detection & Monitoring

The RF monitoring subsystem covers a wide frequency spectrum:

• Detection band: 70 MHz – 6000 MHz (customizable)
• Supports detection of common drone communication links and telemetry protocols

The system can analyze drone signal characteristics, protocol types, and remote controller direction, enabling accurate threat evaluation and pilot localization.

5. Multi‑Band Electronic Jamming & Signal Suppression

ZAi‑AS1 is equipped with a powerful electronic warfare module for drone neutralization:

Jamming frequency coverage:

• 5900–6200 MHz
• 5600–5950 MHz
• 5100–5350 MHz
• 4850–5100 MHz
• 2280–2540 MHz
• 1750–2000 MHz
• 1100–1400 MHz
• 850–1050 MHz
• 720–950 MHz
• 410–520 MHz

Effective jamming range: ≤ 3 km

Functions include:

• Drone command link suppression

• Video transmission blocking

• Telemetry disruption

• Forced landing or return‑to‑home interruption

This provides reliable electronic counter‑UAV capability against commercial drones and customized UAV platforms.

6. GNSS Spoofing & Navigation Deception

The system supports spoofing of major satellite navigation systems:

• GPS
• Galileo
• GLONASS
• BeiDou

Spoofing distance: ≥ 1 km

GNSS deception allows the system to mislead drones by falsifying positioning data, forcing them to drift, hover, land, or leave the protected zone without physical destruction.

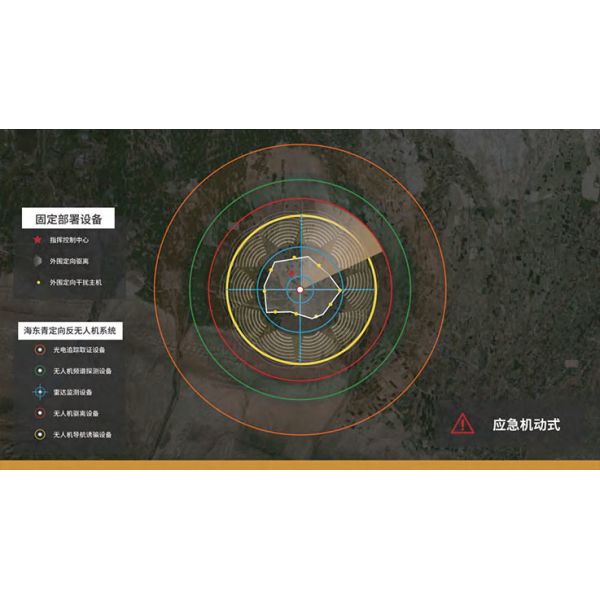

7. 360° Full‑Coverage Protection

The platform provides 360‑degree omnidirectional coverage, ensuring no blind spots in protected airspace and seamless integration with perimeter security systems.

8. Unattended Operation & Intelligent Control

ZAi‑AS1 supports:

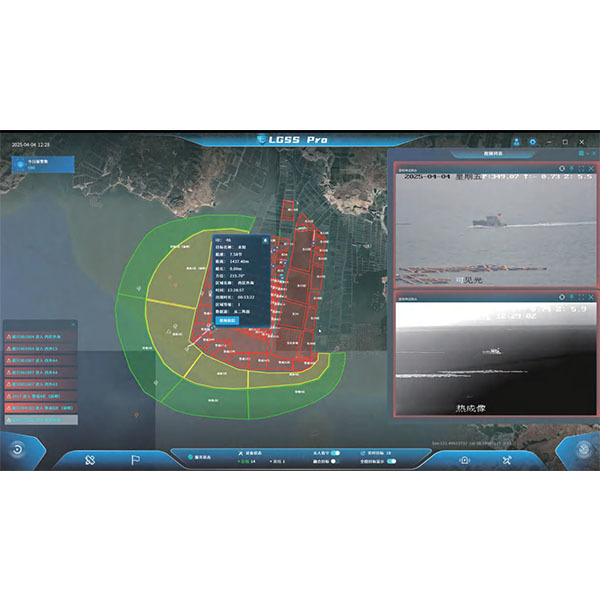

• Centralized command and control software
• Automated threat recognition
• Alarm and logging system
• Remote monitoring and network integration

It enables unattended operation, reducing manpower requirements while increasing response speed and operational reliability.

Technical Specifications (Core Parameters)

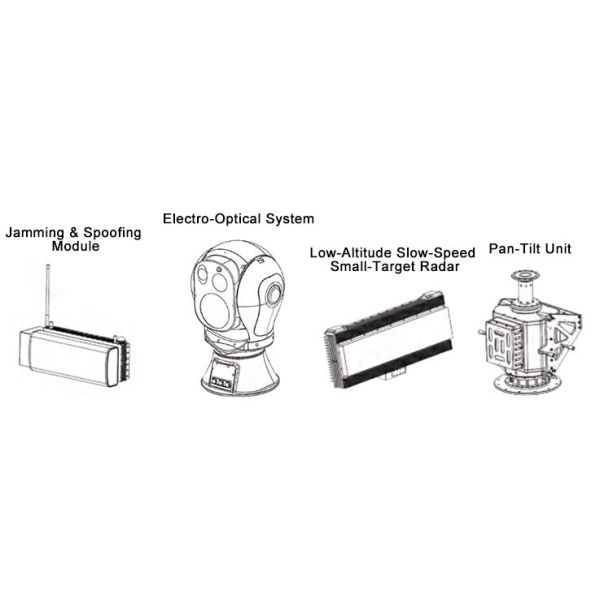

Hardware Components of ZAi-AS1 Anti-UAS

Typical Counter‑Drone Applications

• Anti‑drone system for airports and flight safety protection
• Counter‑UAS solution for military bases and border control
• Drone defense for power stations, oil refineries, and substations
• Prison anti‑smuggling drone prevention
• Government building airspace protection
• Temporary deployment for major events and VIP security
• Port and coastal drone intrusion prevention

Advantages of ZAi‑AS1 Anti‑UAV Solution

• Fully integrated multi‑sensor counter‑drone platform
• Long‑range early warning and high‑accuracy tracking
• Full‑band drone detection and electronic countermeasure capability
• Supports soft‑kill methods (jamming + spoofing) without physical damage
• Modular architecture for customization and expansion
• Proven suitability for enterprise and military‑grade missions
• Fixed installation for stable, long‑term deployment

The ZAi‑AS1 Anti‑UAV Defense System delivers a complete, professional, and scalable counter‑drone security solution. By combining radar surveillance, RF detection, electro‑optical tracking, electronic jamming, and GNSS spoofing into a unified platform, it establishes a robust drone detection and mitigation shield for modern high‑risk airspace environments.

For organizations seeking a reliable, intelligent, and future‑ready anti‑drone / counter‑UAS / drone defense system, ZAi‑AS1 represents a powerful and field‑proven choice.
