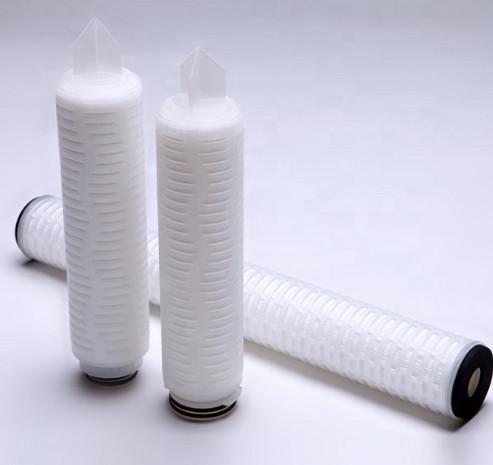

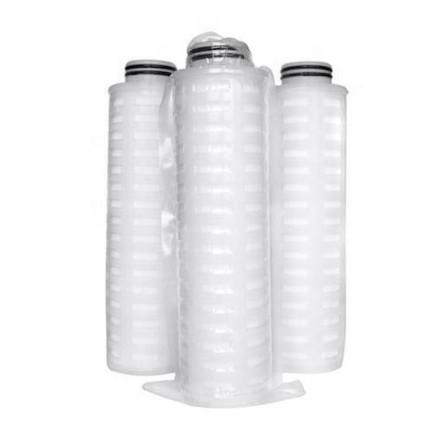

Pharmaceutical Grade 0.1 Um PP Filter Cartridge For Compressed Air Filtration
Pharmaceutical Grade 0.1 Um PP Filter Cartridge For Compressed Air Filtration
Pharmaceutical Grade 0.1 Um PP Filter Cartridge For Compressed Air Filtration
Pharmaceutical Grade 0.1 Um PP Filter Cartridge For Compressed Air Filtration
Specifications
Brand Name :
DAITTO
Model Number :
Pleated Filter Cartridge
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs per month
Delivery Time :
within 15 days
Packaging Details :
standard export package
Type :
Pleated Filter Cartridge
Filter Media :
Polypropylene Membrane filter
Micron Rating :
0.1um/0.2um/0.45um/1um/5um/20um/40um
Support Layers :
Polypropylene
O-Rings :
Silicone,Nitrile, EPDM,Viton,
Length :
5''/10'' / 20'' / 30''/40''
Description

Pharmaceutical grade 0.1 um PP filter cartridge for compressed air filtration

Specification:

Materials Of Construction Filter Media Polypropylene Membrane
Support Layers Polypropylene
Micron Rating 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0um
Inner core Polypropylene
Outer Cage, End caps: Polypropylene
Seal Method Thermal Bonded, No Adhesives
O-rings/gaskets Silicone, Nitrile, EPDM, Viton,
Cartridge Dimensions Outer Diameter 69mm(2.75'')
Inner Diameter 33mm(1.30'')
Length(based on DOE end caps) 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm
Filtration Area(m2) 0.65 m2 per 10''
Operating Conditions Normal Operating Temperature Up to 60℃ (140℉)
Max.Operating Temperature 80℃ (172℉) at P≤1.0 bar (14psi)
Normal Flow direction 4.2 bar (60 psi) at 25℃ (77℉)
Reverse flow direction 2.1 bar (30psi) at 25℃ (77℉)
PH Value compatibility 1-13
Sterilization Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:15hours;
Flush with hot water at 82℃(180℉) for 30 minutes, at P≤1.0 bar (14psi) -- Recommended.

Features:
1. Graded density ultra fine polypropylene membrane filter, could provide absolute rating filtration;

2. Pleated depth media for high flow rate and maximum dirt holding capacity;

3. 100% polypropylene construction offers broad chemical compatibility;

4. High retention efficiency provide excellent protection of downstream filters;

5. No fiber migration into the process fluid.

Application:

Food & Beverages, Wines, Beer, Mineral Water, etc;

Pharmaceuticals, API's, Biologics, Buffers, Reagents;

Fine Chemicals, Inks, Solvents, Photoresists, etc;

Electronic, Semi-Conductor, LCD Display, Discs

FAQ:

Q: Are you trading company or manufacturer ?
A: Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge if the value is not big, but the courier charge will be on your side.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment. ( Mainly accept Paypal, West Union and T/T)

Shanghai Daitto Filtration now has quite a few products in stock in its factory. Also dealing with customized service, we warmly welcome you to buy or wholesale discount and cheap products at low price with us.
