Wall Mounted FRP Negative Pressure Fan High Performance Weatherproof
Wall Mounted FRP Negative Pressure Fan High Performance Weatherproof
Specifications
Brand Name :
KC
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
1Pcs
Price :
USD500-USD5000/SET
Payment Terms :
T/T,D/A,Western Union,MoneyGram
Supply Ability :
1500SET/MONTH
Delivery Time :
3 DAYS After Deposit
Packaging Details :
With regular Film and Carton
Type :
Ventilation Fan
Frequency :
50Hz
Weight :
2.5kg
External Size :
40-60m²
Power Consumption :
250W
Power Supply :
50 Hz/380 V
Fan Blade Material :
Fiberglass
Air Flow :
8000 m³/h
Description

Roof Ventilation Wall Mounted FRP Negative Pressure Fan Fiber Glass Exhaust Fan

Product Description

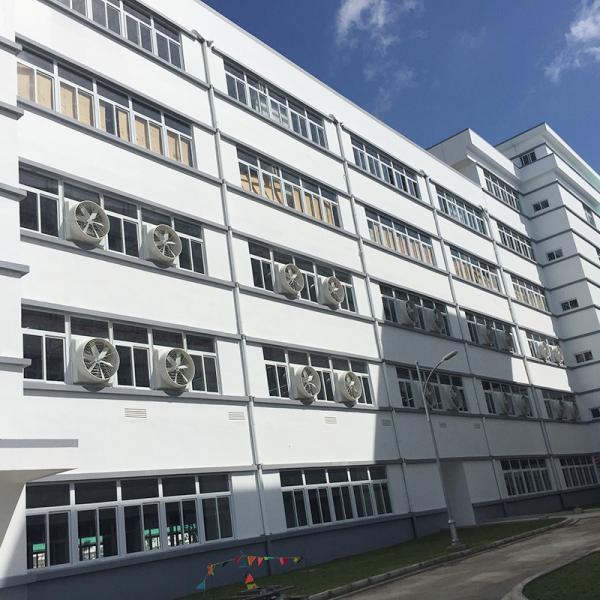

Roof-mounted FRP negative pressure fans are particularly effective for exhausting hot air that rises to the ceiling. By drawing this hot air out of the building, they help to lower the overall temperature and improve comfort levels. Wall-mounted FRP negative pressure fans are more versatile, allowing for targeted ventilation in specific areas of a building. They can be used to remove fumes, dust, or other pollutants generated by specific processes or equipment.

The design of FRP negative pressure fans often incorporates features that enhance their performance and efficiency. Aerodynamically optimized blades maximize airflow while minimizing noise levels. Direct-drive motors eliminate the need for belts and pulleys, reducing energy losses and maintenance requirements. Automatic shutters prevent backdraft when the fan is not in operation, further improving energy efficiency.

Technical parameters

Model specification 560 660 850 1060 1260 1460
Body size/MM 560*560 660*660 850*850 1060*1060 1260*1260 1460*1460
Input power 250W 370W 370W 550W 750W 1100W
Applicable area 40-60m² 60-80m² 80-100m² 100-120m² 120-140m² 140-180m²
Voltage 380V 381V 382V 383V 384V 385V
Air volume/h 8000m3 1000m 3 13000m3 2800m3 4000m3 4400m3

Specificationsv

Fiber Reinforced Polymer (FRP) negative pressure fans, often referred to as fiberglass exhaust fans, are a vital component in modern ventilation systems, particularly in industrial, agricultural, and commercial settings. These fans are designed to efficiently remove stale air, pollutants, and excess heat, contributing to a healthier and more productive environment. Their robust construction and versatile mounting options make them a popular choice for a wide range of applications.

The principle behind negative pressure ventilation is simple yet effective. The fan draws air out of a building, creating a pressure differential. This lower pressure inside the building then pulls fresh air in through designated inlets, such as windows, doors, or specifically designed vents. This continuous air exchange cycle helps to maintain optimal air quality, reduce humidity, and regulate temperature.

Feature

1) Reasonable cone designing with big air volume ,low noise.
2) Imported bearing,high -strength ,low noise and long service life.
3) Shutter are made of high strength fiber glass sheet,antioxidant, light weight and no distortions.
4) High strength dabber aluminium-magnesium alloy wheel,high strength and long service life;
5) Mirror designed and injection moulding stainless steel blade,with big air volume,never distortion and broken.
