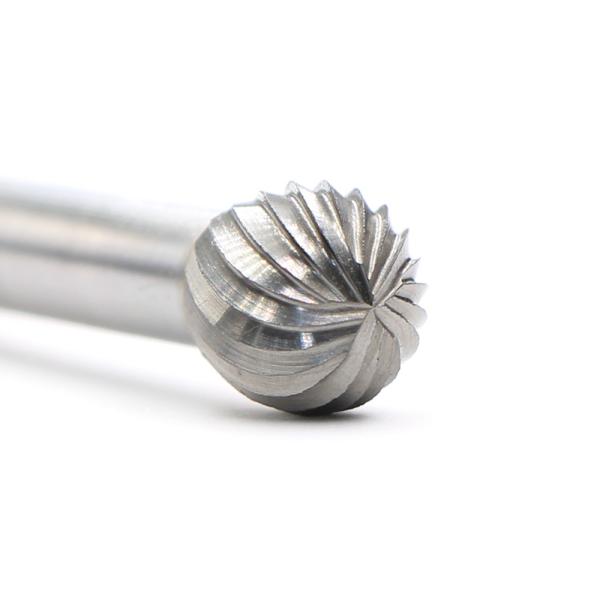

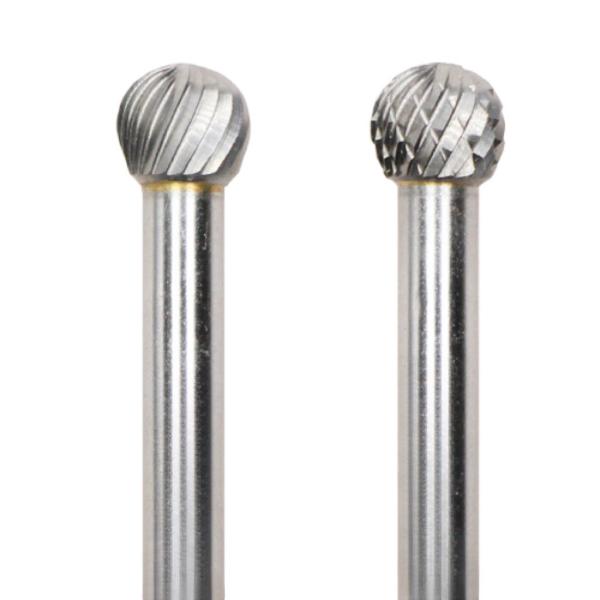

3mm SD Ball Shape Carbide Burrs Single Cut Carbide Rotary Burr On 3mm Shank
3mm SD Ball Shape Carbide Burrs Single Cut Carbide Rotary Burr On 3mm Shank
3mm SD Ball Shape Carbide Burrs Single Cut Carbide Rotary Burr On 3mm Shank
3mm SD Ball Shape Carbide Burrs Single Cut Carbide Rotary Burr On 3mm Shank
Specifications
Brand Name :
BABOS
Model Number :
D032.5C03
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Ball Shape
Cut Diameter :
3mm
Cut Length :
2.5mm
Shank Diameter :
3mm
Overall Length :
38mm
Flute Type :
Single Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1 pcs
Max Rpm :
50,000
Description

3mm SD Ball Shape Carbide Burrs Single Cut Carbide Rotary Burr On 3mm Shank


Ball Shape Carbide Burr On 3mm Shank


Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3mm

Length of Flute: 2.5mm

Shank Diameter: 3mm

OAL: 38mm

Cut Type:Single Cut




Other Available Sizes Related to Type D Carbide Burrs Both in Metric and Inch Standard:


Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 2 1.8 38 D0202 Solid
2.5 2.3 38 D2525 Solid
3 2.5 38 D0325 Solid
4 3 41 D0403 Brazed
5 4 42 D0504 Brazed
6 5 43 D0605 Brazed
6 6 5 50 D0605 Brazed
8 7 52 D0807 Brazed
10 9 54 D1009 Brazed
12 10 55 D1210 Brazed
16 14 59 D1614 Brazed
19 18 63 D1918 Brazed
25 21 66 D2521 Brazed
8 12 10 56 D1210 Brazed
16 14 59 D1614 Brazed
19 18 63 D1918 Brazed
25 21 66 D2521 Brazed
Inch Standard
1/8'' 1/8" 1/8" 1-1/2" SD-42 Solid
3/16" 5/32" 1-1/2" SD-53 Brazed
1/4" 7/32" 1-3/4" SD-51 Brazed
1/4'' 3/16" 1/8" 2'' SD-14 Solid
1/4" 7/32" 2'' SD-1 Solid
5/16" 1/4" 2" SD-2 Brazed
7/16" 3/8" 2-1/7" SD-4 Brazed
1/2" 7/16" 2-1/5" SD-5 Brazed
5/8" 9/16" 2-1/3" SD-6 Brazed
3/4" 11/16" 2-4/9" SD-7 Brazed
1" 15/16" 2-7/8" SD-9 Brazed





Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type D burrs or other shapes of burrs.
  3. OEM is avaliable.




Cut Selection Guide:


STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
