Specifications
Brand Name :
BABOS
Model Number :
SM-1
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Cone Pointed End
Cut Diameter :
1/4"
Cut Length :
5/8"
Shank Diameter :
1/4"
Flute Type :
Standard Double Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1
Max Rpm :
50,000
Description

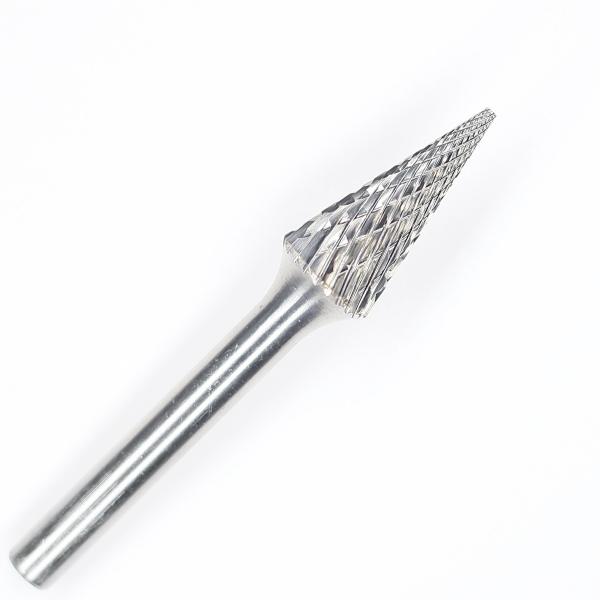

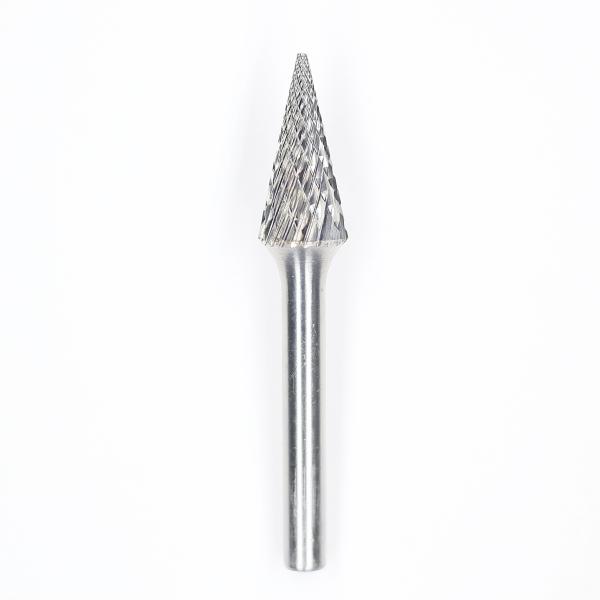

SM-1 Tungsten Carbide Rotary Burr Cone Pointed End Type For Die Grinder With 1/4" Shank

SM-1 Tungsten Carbide Rotary Burr Cone Pointed End Type For Die Grinder With 1/4

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/4"

Length of Flute: 5/8"

Shank Diameter: 1/4"

OAL: 2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type M Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Included Angle Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 3 11 38 14° M0311 Solid
5 13 51 14° M0513 Brazed
6 13 51 14° M0613 Brazed
6 6 18 53 14° M0618 Brazed
6 25 50 14° M0625 Solid
8 20 65 25° M0820 Brazed
10 20 65 25° M1020 Brazed
12 25 70 25° M1225 Brazed
16 25 70 31° M1625 Brazed
8 12 25 70 25° M1225 Brazed
16 25 70 31° M1625 Brazed
Inch Standard
Shank Dia. (inch) Cutter Dia. (inch) Length of Cut (inch) Overall Length (inch) Included Angle Tool No. The Combination of Head and Shank
d2 d1 l2 l1
1/8'' 1/8'' 7/16" 1-1/2" 14° SM-42 Solid
1/4'' 1/4'' 1'' 2" 10° SM-3 Solid
3/8'' 3/4'' 2-9/16" 28° SM-4 Brazed
1/2'' 1" 2-3/4" 28° SM-5 Brazed
5/8'' 1" 2-3/4" 31° SM-6 Brazed

Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type M burrs or other shapes of burrs.
  3. OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
SM-1 Tungsten Carbide Rotary Burr Cone Pointed End Type For Die Grinder With 1/4 SM-1 Tungsten Carbide Rotary Burr Cone Pointed End Type For Die Grinder With 1/4 SM-1 Tungsten Carbide Rotary Burr Cone Pointed End Type For Die Grinder With 1/4 SM-1 Tungsten Carbide Rotary Burr Cone Pointed End Type For Die Grinder With 1/4 SM-1 Tungsten Carbide Rotary Burr Cone Pointed End Type For Die Grinder With 1/4 SM-1 Tungsten Carbide Rotary Burr Cone Pointed End Type For Die Grinder With 1/4
