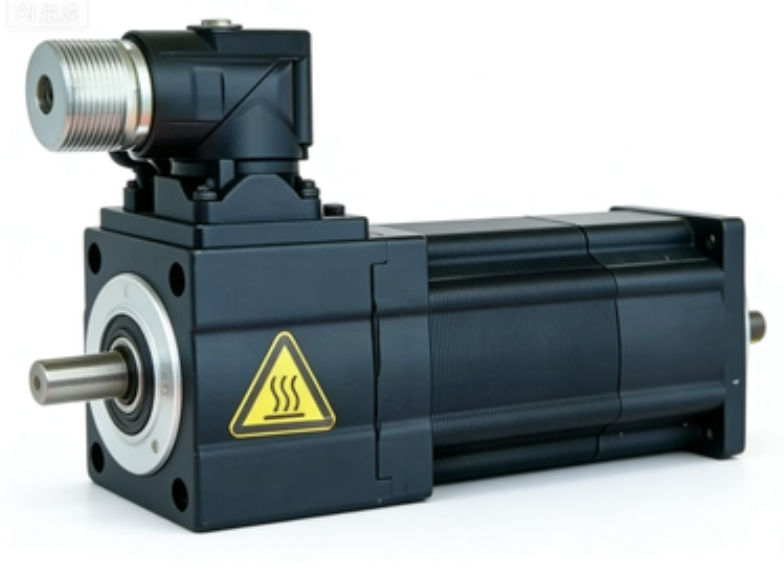

Lenze M85AS140L326SFDLC synchronous servo motors
Lenze M85AS140L326SFDLC synchronous servo motors
Specifications
Delivery Time :
5-8days
Application :
Pumps, conveyors, compressors, fans
Price :
Negotiation
Userinterface :
HMI Touchscreen / Remote Monitoring
Powerrating :
0.5 kW to 500 kW
Brand Name :
Lenze
Programminglanguage :
Ladder Logic, Structured Text
Model Number :
M85AS140L326SFDLC
Packaging Details :
pieces
MOQ :
1
Material :
Cast iron / Aluminum housing
Responsetime :
Milliseconds to Seconds
Place of Origin :
china
Description

Lenze M85AS140L326SFDLC Permanent Magnet Synchronous Servo Motor (ECER Standard | English Only)

M850系列伺服电机
M850整机外观

1. Product Overview

M85AS140L326SFDLC belongs to German Lenze M850 compact synchronous servo motor platform, FF165 IEC 140 flange frame, L=long stator stack, 32=3200rpm rated speed class. Model coding breakdown:
  • 140: Flange size 140 (FF165 mounting dimension); L: Long stator lamination stack for higher continuous torque
  • 32: Base rated speed 3200rpm specification; 6S: Hiperface DSL single-cable multi-turn absolute encoder (OCT one-cable tech)
  • F: Built-in spring-type power-off holding brake; D: IP54 enclosure; LC: CE + cULUs global certification, plug-in quick connector layout

    Matched exclusively with Lenze i700 / i950 cabinet servo drives and G500/G700/G800 precision planetary/Bevel reducers, fully compliant with EU ECER machinery safety, EN61800 EMC, CE, UL & RoHS standardsLenze.

2. Core Advantages & Key Features

  • Long-stack High-Torque Design: Optimized long stator winding reduces cogging torque, smooth low-speed running, full-load efficiency ≥92%, excellent for high-inertia constant-torque loadsLenze.
  • Hiperface DSL Single-Cable Feedback (6S Spec): Integrated power+encoder single cable wiring, cuts field wiring cost; battery-free multi-turn absolute positioning, high precision closed-loop control.
  • 24VDC Spring-applied Fail-Safe Brake (F Code): Shaft locking upon power loss, anti-drop protection for vertical lifting & cantilever axes, standard 24V DC brake coil design.
  • Quick-plug Aviation Connector (LC): Pre-assembled plug terminal instead of traditional terminal box, drastically shorten on-site wiring & maintenance downtimeLenze.
  • Built-in Electronic Nameplate: Auto parameter identification with matching Lenze servo drives for one-click drive commissioning without manual parameter input.
  • Smooth seamless pairing with Lenze G500 series geared assemblies for compact integrated drive unit, widely accepted for food & packaging machine per hygiene requirements.

3. Detailed Technical Specification

表格



Specification Item Parameter Value
Manufacturer Lenze, Made in Germany
Model M85AS140L326SFDLC
Motor Type Permanent Magnet Synchronous Servo
Standstill Stall Torque(M0) 28 N·m
Rated Continuous Torque(Mrated) 17.4 N·m
Peak Overload Torque(Mmax) 52.2 N·m (3s short-time 300% overload)
Rated Speed 3200 rpm; Max Allowable Speed:4800 rpm
Rated Output Power 5.8 kW /7.78 HP
Rated DC Bus Voltage 330VDC (matched to 3PH 380~480V input servo drive)
Rated Input Current 14.2 A
Feedback Device Hiperface DSL Single-Cable Multi-turn Absolute Encoder
Integrated Accessory 24VDC Spring Electromagnetic Holding Brake(F)
Cooling Method Natural Convection Self-cooled
Protection Grade IP54(D code)
Mounting Standard IEC B5 FF165 flange mounting, flange outer dia.165mm
Shaft Spec Solid keyed output shaft, Φ24mm standard shaft diameter
Operating Ambient 0~+40℃, RH5~90% non-condensing, non-corrosive gas environment
Compatible Servo Drive Lenze i700, i950 series servo inverters
Net Weight 21.8kg

4. Application Industry & Warehouse Storage

Core Application Fields

  1. Packaging Automation: High-speed carton filling, labeling, slitting, stacking & palletizing main drive axis
  2. Automated Material Handling: Vertical lifting elevator, heavy-load sorting conveyor, pallet transfer equipment
  3. Food Processing Machinery: Extruder, dough mixer, forming & wrapping precision positioning axis
  4. Printing & Converting Equipment: Rewinder/unwinder register control, rotary die-cutting servo driving
  5. CNC Special Machinery: Feeding axes for woodworking & plastic molding equipment

Warehouse Storage Rule

Original German export carton with inner anti-shock foam padding, stored inside constant-temperature dry warehouse with moisture-proof pallet, away from corrosive chemical & humid air; every unit completes factory full-load aging test before delivery, spot stock & bulk OEM order available.

5. ECER Compliance Statement

M85AS140L326SFDLC complies with EU ECER mechanical safety regulations, EN61000 EMC & EN60204 machinery standard; full set of original certification documents supplied for EU import customs clearance and complete machine CE registration.
