Siemens 1LA7063-6AB12 Three Phase Induction Motor Flange Mount
Siemens 1LA7063-6AB12 Three Phase Induction Motor Flange Mount
Siemens 1LA7063-6AB12 Three Phase Induction Motor Flange Mount
Siemens 1LA7063-6AB12 Three Phase Induction Motor Flange Mount
Siemens 1LA7063-6AB12 Three Phase Induction Motor Flange Mount
Siemens 1LA7063-6AB12 Three Phase Induction Motor Flange Mount
Specifications
Model Number :
1LA7063-6AB12
High Torque :
small stepper motor high torque
Productgroup Id :
4,6
Shaft Type :
Straight shaft
Operating Voltage :
3.3V-5V
Pressure :
Low Pressure
Payment Terms :
T/T
Supply Ability :
10pcs 1week
Price :
699USD/PCS
Torque :
1.27 Nm
Place of Origin :
China
Material :
Steel
Media Compatibility :
Air, gas, water, oil
Brand Name :
siemens
Factory Outlet :
Factory Outlet
MOQ :
1pcs
Mounting Type :
Flange Mount
Delivery Time :
1week
Installation Method :
flange type
Application :
for Ardu
Maximum Acceleration :
10G
Size :
90x29x42mm
Product Status :
in stock
Description

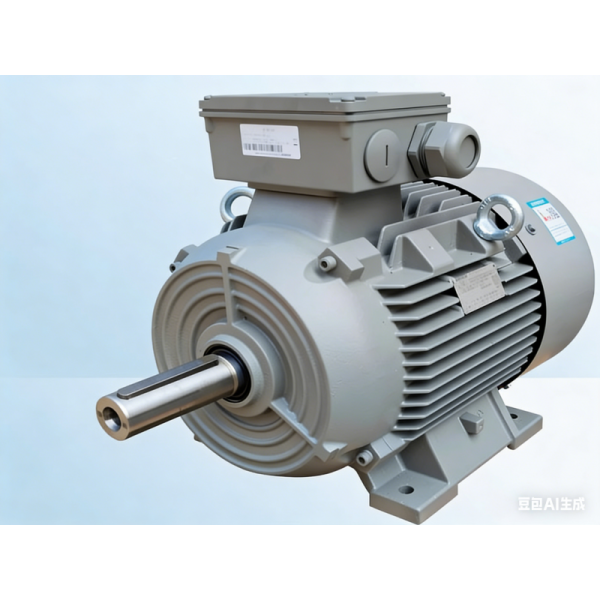

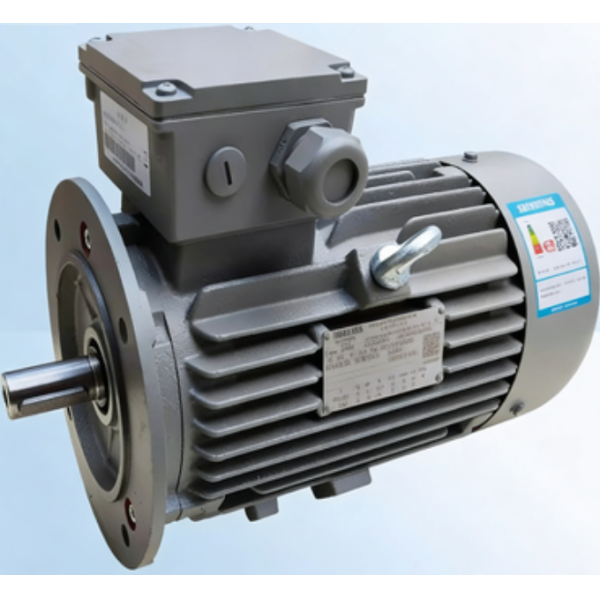

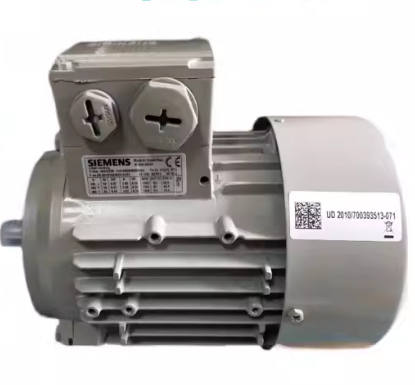

Siemens 1LA7063-6AB12 Three-Phase Induction Motor
Motor Specifications
General Specifications
Parameter Specification
Product Series SIMOTICS GP 1LA7
Motor Type 3-Phase Squirrel-Cage Induction Motor
Frame Size IEC 63M
Enclosure Material Aluminum
Protection Class IP55
Cooling Type Self-Ventilated (IC411)
Efficiency Class IE1 (EFF2)
Weight 4.0 kg
Electrical Specifications - 50 Hz Operation
Parameter Specification
Rated Power 0.18 kW
Rated Voltage 230 V Δ / 400 V Y
Rated Current 0.54 A
Rated Speed 1500 rpm
Rated Torque 1.15 Nm
Electrical Specifications - 60 Hz Operation
Parameter Specification
Rated Power 0.21 kW
Rated Voltage 460 V Y
Rated Speed 1800 rpm
Mechanical Specifications
Parameter Specification
Shaft Diameter 11 mm
Shaft Length 23 mm
Shaft Key 4 x 16 mm
Mounting Type IM B14 (Face)
Overall Length 202.5 mm
Thermal Specifications
Parameter Specification
Insulation Class 155 (F)
Temperature Rise 80 K
Standards & Features
Compliance: IEC 60034, IEC 60072
Motor Protection: Optional PTC Thermistors (A11)
Key Features
  • Dual frequency operation (50/60 Hz)
  • IP55 protection for dust and water resistance
  • Aluminum construction for lightweight durability
  • Self-ventilated cooling system (IC411)
  • Face mounting configuration (IM B14)
  • Optional thermal protection available
