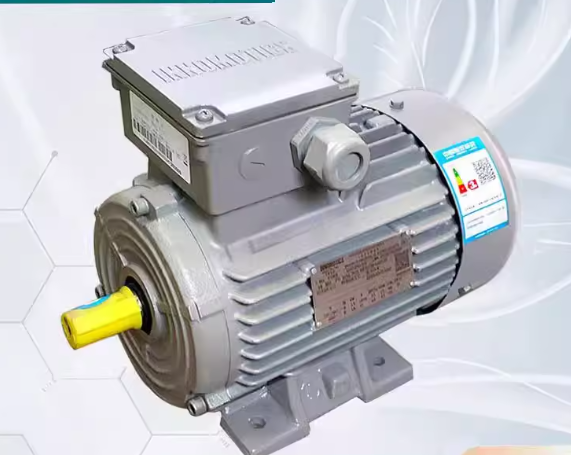

1LE0003-1BA23-3FB4 Siemens Motor 4.0KW 50Hz 380V 3AC IE3 Efficiency Class
1LE0003-1BA23-3FB4 Siemens Motor 4.0KW 50Hz 380V 3AC IE3 Efficiency Class
1LE0003-1BA23-3FB4 Siemens Motor 4.0KW 50Hz 380V 3AC IE3 Efficiency Class
1LE0003-1BA23-3FB4 Siemens Motor 4.0KW 50Hz 380V 3AC IE3 Efficiency Class
1LE0003-1BA23-3FB4 Siemens Motor 4.0KW 50Hz 380V 3AC IE3 Efficiency Class
1LE0003-1BA23-3FB4 Siemens Motor 4.0KW 50Hz 380V 3AC IE3 Efficiency Class
Specifications
Brand Name :
Siemens
Media Compatibility :
Air, gas, water, oil
Payment Terms :
T/T
Price :
648USD/PCS
Place of Origin :
China
Shaft Type :
Straight shaft
MOQ :
1pcs
Supply Ability :
10PCS 1week
Torque :
0.64 Nm
Temperature Rise :
80degree Max
Model Number :
1LE0003-1BA23-3FB4
Delivery Time :
1week
Description

Siemens 1FL6062‑1AC61‑0AA1, 1.0kW, 8-pole Servo Motor, IP65 Motor Body, Cable Connector Version, Incremental Encoder, Without Holding Brake

1. Product Overview

The Siemens 1FL6062‑1AC61‑0AA1 is a permanent magnet synchronous AC servo motor from SIMOTICS S-1FL6 series, matched with SINAMICS V90 / V70 servo drives. It realizes high-precision position, speed and torque closed-loop motion control.

Widely deployed on automated production equipment to drive linear modules, rotary mechanisms, pick-and-place units and conveying systems, delivering stable dynamic performance for standardized automation solutions.

2. Product Advantages (Core Features)
  • IP65 complete motor protection (including cable connectors), dust-proof & splash-proof, suitable for factory workshop environment
  • Built-in TTL incremental encoder (2500 incr./rev.) for real-time position feedback
  • 300% short-time overload capability, strong acceleration response
  • Low torque ripple, smooth low-speed operation & stable positioning accuracy
  • Rotatable cable connectors for flexible wiring layout
  • Natural surface cooling design, no extra cooling fan required
  • Standard IEC flange mounting (IM B5), easy mechanical assembly
  • Reliable Siemens original industrial grade, long service life & low maintenance cost
3. Technical Parameters
Item Specification
Model 1FL6062‑1AC61‑0AA1
Series SIMOTICS S-1FL6 Servo Motor
Rated Power 1.0 kW
Pole Number 8-pole
Operating Voltage 3 AC 400 V
Rated Speed 2000 rpm
Rated Torque 4.78 N·m
Stall Torque 6.0 N·m
Encoder Type TTL Incremental Encoder, 2500 incr./rev.
Shaft With feather key, tolerance N
Holding Brake Without brake
Connector Straight cable connector
Protection Class IP65 (with sealing ring)
Insulation Class Class B (130°C)
Cooling Method Natural convection cooling
Mounting Type IM B5 (Flange mount, IM V1 / V3 optional)
Compatible Drive SINAMICS V90 / SINAMICS V70 Servo Drives
4. Application Industries & Scenarios
Target Industries
  • Automation machinery
  • packaging industry
  • electronic assembly
  • printing equipment
  • logistics handling
  • CNC auxiliary equipment
  • textile machinery
Typical Equipment
  • Automatic assembly machines
  • Pick & place handling equipment
  • Labeling & packaging machinery
  • Screen printing machines
  • Winding & unwinding equipment
  • Automated conveying systems
  • Small CNC auxiliary motion axes
5. Extra Sales Information (Can be added at bottom)
  • Condition: Original Siemens brand new, factory sealed package
  • Lead time: Inquiry for stock availability
  • Support DDP / DAP international shipping quotation
  • Full set matching servo drive & power/encoder cables available
