PEPPERL+FUCHS NBN4-12GM50-E0 Detection Distance IP65 Protection And NPN Normally Open Output
PEPPERL+FUCHS NBN4-12GM50-E0 Detection Distance IP65 Protection And NPN Normally Open Output
Specifications
Model Number :
NBN4-12GM50-E0
Productname :
Industrial Control Automation
Brand Name :
PEPPERL+FUCHS
MOQ :
1 pcs
Delivery Time :
5-7 days
Scalability :
Modular Expansion Supported
Applicationindustry :
Manufacturing, Process Control, Robotics
Payment Terms :
T/T
Safetystandardscompliance :
IEC 61508, ISO 13849
Powersupply :
24V DC / 110V AC / 220V AC
Supply Ability :
1000 pcs
Control Type :
Programmable Logic Controller (PLC)
Price :
Negotiable
Power Supply Voltage :
100 – 240VAC.
Softwarecompatibility :
Supports SCADA and HMI software
Description

PEPPERL+FUCHS NBN4-12GM50-E0 Inductive Proximity Sensor


ECER Standard English Product Listing | Text + Table + Image Layout

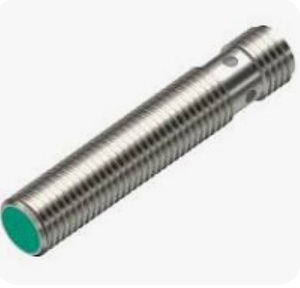

NBN4-12GM50-E0 Product Photo


1. Product Overview


This NBN4-12GM50-E0 is a M12 cylindrical inductive proximity sensor manufactured by Pepperl+Fuchs, adopting non-contact electromagnetic induction detection principle. It accurately senses ferrous and non-ferrous metal targets at a rated 4mm detection distance without mechanical collision, then outputs NPN normally open digital switching signals to PLC, frequency converters and industrial control systems.

With IP65 multi-level dust & waterproof protection, built-in full circuit protection and wide temperature adaptability, it replaces traditional mechanical limit switches to realize workpiece counting, stroke limit, position feedback and material presence detection. The pre-wired 2m PVC cable design simplifies on-site wiring, stable signal output ensures reliable automatic operation of production lines under dusty, humid and splash workshop environments.

2. Core Product Advantages (Key Features)


✅ 4mm Stable Non-Flush Detection Distance

Rated sensing distance Sn=4mm, assured working range 0~3.24mm, less signal attenuation for aluminum, copper and stainless steel workpieces, compatible with multi-metal detection demandsPepperl+Fuchs.

✅ Standard NPN Normally Open 3-Wire DC Output

Universal NPN NO switching signal, perfectly matched with mainstream PLC, servo and frequency converter input terminals, convenient wiring without signal conversion modules.

✅ IP65 / IP67 / IP68 Multi-Grade Protection Performance

Brass bronze-coated housing + PBT green sensing face, fully sealed structure, resistant to dust, coolant splashing, water mist and short-term soaking, adapts to harsh workshop conditionsPepperl+Fuchs.

✅ Complete Built-In Circuit Protection

Integrated reverse polarity protection, pulse short-circuit protection and surge suppression circuit, no burnout risk caused by miswiring or instantaneous current impact.

✅ Ultra-Wide Operating Temperature Range -40℃ ~ +85℃

Stable detection performance in low-temperature cold storage and high-temperature machining workshops, strong environmental adaptabilityPepperl+Fuchs.

✅ High 1200Hz Switching Frequency

Supports high-speed continuous detection on fast-running automated assembly lines without signal loss or delay.

✅ 360° Visible Yellow LED Status Indicator

Real-time switch state display, visible from all installation angles, greatly improves on-site equipment debugging efficiency.

✅ Global Authoritative Certifications

Compliant with IEC 60947-5-2, CE, RoHS standards, fully meets ECER export compliance requirements for Southeast Asia, Europe and Middle East markets.

3. Complete Technical Parameters (ECER Export Standard Table)


表格



Item Detailed Specification
Brand Pepperl+Fuchs
Model NBN4-12GM50-E0
Product Category M12 Cylindrical Inductive Proximity Sensor
Rated Detection Distance Sn 4 mm (Non-flush installation)
Assured Operating Distance Sa 0 ~ 3.24 mm
Output Mode 3-Wire DC, NPN Normally Open (NO)
Supply Voltage 10 ~ 30 V DC
Max Switching Frequency 1200 Hz
Max Load Current 200 mA
Voltage Drop (ON state) ≤ 3 V
Off-State Residual Current ≤ 0.5 mA
Indicator Light Yellow LED switching status display
Protection Class IP65, IP67, IP68
Housing Material Brass with white bronze coating
Sensing Face Material Green PBT plastic
Ambient Working Temp -40 ℃ ~ +85 ℃
Connection Method Standard 2m PVC pre-wired cable, 3×0.14mm²
Thread Spec M12 × 1 cylindrical thread
Overall Dimension Dia.12mm × Length 50mm
Single Net Weight Approx. 28 g / piece
Built-in Protection Reverse polarity, short-circuit, surge protection
Applicable Target Metal Mild steel, stainless steel, aluminum, copper, brass
Compliance Certifications CE, RoHS, IEC 60947-5-2

4. Application Industries & Typical Scenarios


Main Applicable Industries


Automotive Assembly Line, Packaging Machinery, CNC Machine Tools, Logistics Conveying Equipment, Food & Beverage Processing, New Energy Battery Production, Textile Machinery, Metallurgy & Foundry, Automated Warehouse, Port Handling Equipment, Water Treatment Automation.

Typical Application Scenarios


  1. Conveyor belt metal workpiece counting and material presence detection
  2. Robotic arm travel limit positioning and clamping workpiece signal feedback
  3. CNC lathe/milling machine spindle stroke limit signal triggering
  4. Food production line humid and splash environment position monitoring
  5. Automated warehouse cargo metal pallet position identification
  6. Welding workshop dust & oil mist equipment travel limit detection

Matching Image Description for ECER Upload


  1. Application Scene Image Description

    Industrial automation production line installation scene: NBN4-12GM50-E0 sensor mounted on conveyor bracket, detecting metal workpieces in real time, clear wiring and PLC control cabinet matching display.
  2. Warehouse Stock Image Description

    Neatly stacked neutral export cartons of original Pepperl+Fuchs sensors, labeled model batch and export shipping marks, clean dust-proof industrial finished goods warehouse with sufficient bulk inventory.

5. ECER Export Trade Supplementary Information


  • MOQ: 1 piece, bulk order quantity negotiable
  • Packaging: Single neutral export carton, standard export outer carton for bulk shipment
  • Stock Lead Time: In stock 3–7 working days; large customized orders 10–15 working days
  • Factory Quality Warranty: 12 months from delivery date
  • Available Shipping Ports: Shanghai / Ningbo / Qingdao
  • Acceptable Payment Terms: T/T, L/C, Western Union
  • Market Compliance: Fully pass CE & RoHS, conform to ECER industrial sensor release standards for global export
