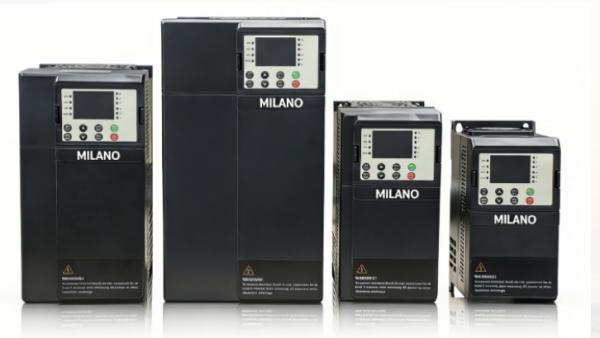

220V 3Phase VFD Inverter 220V 3 Phase Variable Frequency Drives VFD Milano KV90S-0D75G-1-PV
220V 3Phase VFD Inverter 220V 3 Phase Variable Frequency Drives VFD Milano KV90S-0D75G-1-PV
Specifications
Brand Name :
Milano
Supply Ability :
20PCS 1week
Mountingtype :
Wall-mounted or panel-mounted
Model Number :
KV90S-0D75G-1-PV
Packaging Details :
pieces
Displaytype :
LCD or LED display for status and parameter settings
Certification :
CO
Function :
Control motor speed and torque by varying motor input frequency and voltage
Inputvoltage :
Typically 200-600V AC
Productname :
Variable Frequency Drive (VFD)
Outputfrequency :
0 to 400 Hz (typical range)
Controlmethod :
V/F control, vector control, sensorless vector control
Coolingmethod :
Forced air cooling or liquid cooling
Delivery Time :
1week
Communicationprotocols :
Modbus, Profibus, Ethernet/IP, CANopen
Outputvoltage :
Variable, up to input voltage
Overloadcapacity :
150% rated current for 1 minute
Applications :
Pumps, fans, conveyors, HVAC systems, machine tools
Place of Origin :
China
Payment Terms :
T/T
Powerrating :
0.5 kW to 1000 kW (varies by model)
Price :
Negotiable
Efficiency :
Typically 95% to 98%
Protectionfeatures :
Overvoltage, undervoltage, overcurrent, short circuit, overheating
MOQ :
1pcs
Description
Product Specifications
Model -S2 (220V single-phase output) -I (220V single-phase output) -4 (380V three-phase output)
Input voltage range (PV) 190-450V 190-450V 270-900V
Recommended Voc voltage 300-400V 300-400V 450-700V
Optimum MPPT voltage 310V 310V 540V
Maximum MPPT efficiency up to 99% up to 99% up to 99%
Start-up voltage 240V 240V 350V
Minimum Operating Voltage 190V 190V 270V
Input voltage range (AC) 1PH 220-240V(±10%) 1PH 220-240V(±10%) 3PH 380-480V(±10%)
Input voltage frequency 50/60Hz 50/60Hz 50/60Hz
Output voltage range 0-230V 0-230V 0-480V
Output frequency range 0-400Hz 0-400Hz 0-400Hz
Output power range 0.75-4kW 0.75-4kW 0.75-185kW
Power (kW) Rated output current (-S2) Rated output current (-I) Rated output current (-4)
0.75 9 5 2.7
1.5 13 7 3.7
2.2 18 10 5
3 23 13 7
4 28 17 9
5.5 40 25 13
7.5 60 32 17
11 75 45 25
15 90 60 32
18.5 110 75 37
22 150 90 45
30 176 110 60
37 210 150 75
45 176 110
55 210 150
75 176
90 210
110 250
132 300
160 340
185 400
Motor type Single phase motor Asynchronous motors, Permanent magnet synchronous motor
Control mode V/F control, Open-Loop Vector Control, Closed-Loop Vector Control
Overload capacity 150% of rated load for 60s; 180% overload capacity for 10s; 200% of overload capacity for 0.5s
Installation Support wall-mounted
Protection class IP20
Working temperature -10°C~+50°C; after exceeding 40°C, the derating will be reduced by 2% according to 1°C
Cooling method Forced air cooling
Humidity 20%~95%RH (condensation free)
Installation environment Less than 1000m; after exceeding 1000m, the amount will be reduced by 1% according to 100m
