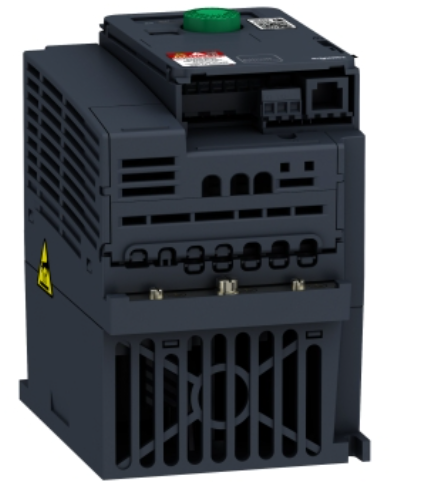

ATV930D11N4 Schneider Variable Frequency Drives VFD With 11KW Rated Power
ATV930D11N4 Schneider Variable Frequency Drives VFD With 11KW Rated Power
ATV930D11N4 Schneider Variable Frequency Drives VFD With 11KW Rated Power
ATV930D11N4 Schneider Variable Frequency Drives VFD With 11KW Rated Power
Specifications
Brand Name :
Schneider
Model Number :
ATV930D11N4
Certification :
Brand new original
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 pcs
Delivery Time :
5-7 days
Starting Torque :
150% at 0.5 Hz
Input Voltage :
200-480 V AC
Overload Capacity :
150% for 1 minute
Dimensions :
Varies by model
Output Frequency :
0-400 Hz
Input Frequency :
50/60 Hz
Operating Temperature Range :
-10°C to 50°C
Control Method :
V/F Control, Vector Control, Sensorless Vector Control
Display Type :
LCD or LED Display
Communication Protocols :
Modbus, Profibus, Ethernet/IP
Harmonic Distortion :
<5%
Power Rating :
0.5 kW to 500 kW
Protection Class :
IP20 to IP54
Cooling Method :
Forced Air Cooling
Output Voltage :
0-480 V AC
Description
Schneider ATV930D11N4 Variable Frequency Drive
Electrical Specifications
Parameter Value
Rated Power 11 kW (15 HP, light load); 7.5 kW (10 HP, heavy load)
Rated Output Current 23.5 A (4kHz, light load); 16.5 A (4kHz, heavy load)
Maximum Transient Current 28.2 A (light load 60s); 24.8 A (heavy load 60s)
Input Voltage Three-phase 380–480 V AC (±10%), 50/60Hz
Output Frequency 0.1–599 Hz
Control Method DTC Direct Torque Control, Sensorless Vector Control, V/F, Energy Saving Mode, Permanent Magnet Motor Control
Overload Capacity 120% Light Load (60s); 150% Heavy Load (60s)
Protection Rating IP21 (NEMA 1)
Cooling Method Forced Air Cooling
Installation Method Wall Mounted / Cabinet-mounted, vertical (±10°)
Communication & Safety Features
Communication Interfaces
Standard: Ethernet/IP, Modbus TCP/RTU
Optional: Profinet, EtherCAT, CANopen, Profibus DP
Safety Functions
Built-in STO (Safe Torque Off), compliant with SIL2/PLd
EMC
Built-in C2/C3 EMC filter
Braking Unit
Built-in braking chopper (can be connected to an external braking resistor)
Physical Specifications
Net Weight
12.5 kg
Gross Weight
Approx. 13.5 kg
Dimensions (W×H×D)
236 × 450 × 250 mm
Packaging Dimensions
Approx. 300 × 520 × 320 mm
Volume
Approx. 0.05 m³
Power Source
No battery, no built-in battery
Operating Environment
Ambient Temperature
-15℃ to +50℃ (no derating); +60℃ (derating)
Model Designation: ATV930D11N4
  • ATV930: Altivar Process 930 Series (High-Performance Process Type)
  • D: With built-in brake chopper
  • 11: 11 kW light-load power rating
  • N: 380–480 V three-phase input
  • 4: Standard Ethernet + Modbus communication
Certifications & Standards Compliance
CE UL CSA EAC RCM KC ATEX ISO 13849-1 IEC 61508 (SIL2)
Compliant with IEC 61800-5-1, IEC 61800-3, EN 954-1
