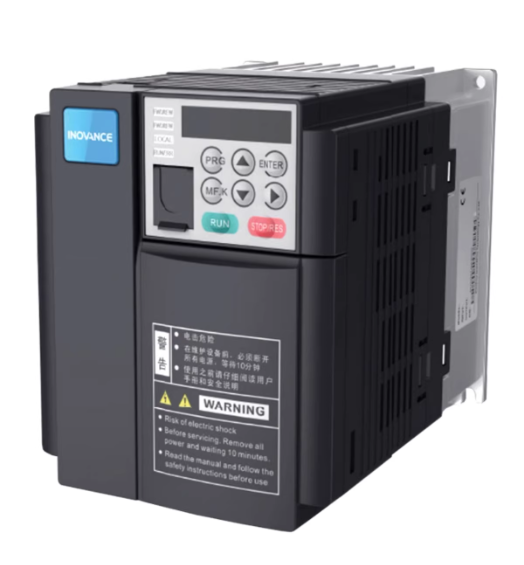

INOVANCE MD500,MD500T110G,110,3PH AC380-480V(±15%),210.0,V/F/SVC/FVC,130% for 60s,500Hz,RS485/Modbus RTU/Ethernet,IP00
INOVANCE MD500,MD500T110G,110,3PH AC380-480V(±15%),210.0,V/F/SVC/FVC,130% for 60s,500Hz,RS485/Modbus RTU/Ethernet,IP00
Specifications
Brand Name :
INOVANCE
Model Number :
MD500T110G
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20PCS 1WEEK
Delivery Time :
1WEEK
Operatingtemperaturerange :
-20°C to 60°C
Connectivityoptions :
Ethernet, RS-485, Wireless
Operatingtemperature :
-20°C to 60°C
Category :
Automation Equipment
Inputvoltage :
24V DC / 110V AC / 220V AC
Communicationprotocols :
Modbus, Profibus, Ethernet/IP, OPC UA
Powersupply :
24V DC / 110-240V AC
Actual Price :
based on offer
Softwarecompatibility :
Supports SCADA and HMI software
Protectionrating :
IP65
Inputtype :
Digital and Analog Inputs
Output Typt :
Relay
Control Type :
Programmable Logic Controller (PLC)
Compliancestandards :
IEC 61131, ISO 9001, CE Certified
Safetystandardscompliance :
IEC 61508, ISO 13849
Description
Brand Product Series Model Number Rated Power(kW) Input Voltage/Phase Rated Output Current(A) Control Mode Overload Capacity Max Output Frequency Communication Protocol Protection Class Operating Temperature Key Features Application
Inovance MD290 MD290-2S0.4GB 0.4 1PH AC200-240V(±15%) 2.3 V/F/SVC 150% for 60s 500Hz RS485/Modbus RTU IP20 0~50℃ Built-in brake unit; Wide voltage design; EMC compliant Textile/Packaging/Fan/Pump
Inovance MD290 MD290-2S2.2GB 2.2 1PH AC200-240V(±15%) 9.6 V/F/SVC 150% for 60s 500Hz RS485/Modbus RTU IP20 0~50℃ Built-in brake unit; Low power consumption General machinery/Food processing
Inovance MD290 MD290T0.4G/0.7PB 0.4/0.75 3PH AC380-480V(±15%) 1.5/2.1 V/F/SVC 150% for 60s 500Hz RS485/Modbus RTU IP20 0~50℃ G/P type optional; Compact design CNC Machine/Conveyor
Inovance MD290 MD290T7.5G/11PB 7.5/11 3PH AC380-480V(±15%) 17/23 V/F/SVC 150% for 60s 500Hz RS485/Modbus RTU IP20 0~50℃ Built-in DC reactor; High vibration resistance Pump/Fan/Blender
Inovance MD290 MD290T55G/75P(B) 55/75 3PH AC380-480V(±15%) 112/150 V/F/SVC 150% for 60s 500Hz RS485/Modbus RTU IP20 0~50℃ Optional brake unit; Heavy duty Crane/Compressor/Construction hoist
Inovance MD310 MD310-2S0.4B 0.4 1PH AC200-240V(±15%) 2.3 V/F/SVC 150% for 60s/180% for 3s 500Hz RS485/Modbus RTU IP20 0~50℃ 4-motor parameter storage; Swing frequency Textile/化纤/Winder
Inovance MD310 MD310-2T1.5B 1.5 3PH AC200-240V(±15%) 7.0 V/F/SVC 150% for 60s/180% for 3s 500Hz RS485/Modbus RTU IP20 0~50℃ Built-in PID; 16-step speed Packaging/Conveyor/General machinery
Inovance MD310 MD310T2.2B 2.2 3PH AC380-480V(±15%) 9.6 V/F/SVC 150% for 60s/180% for 3s 500Hz RS485/Modbus RTU IP20 0~50℃ Over-excitation; Virtual oscilloscope CNC Machine/Pump
Inovance MD310 MD310T7.5B 7.5 3PH AC380-480V(±15%) 17.0 V/F/SVC 150% for 60s/180% for 3s 500Hz RS485/Modbus RTU IP20 0~50℃ Timed operation; CANLink expandable Fan/Pump/Blender
Inovance MD500 MD500-2S0.4G 0.4 1PH AC200-240V(±15%) 2.3 V/F/SVC/FVC 150% for 60s 500Hz RS485/Modbus RTU IP20 0~50℃ 150% torque at 0.25Hz; High precision Electronics manufacturing/Textile
Inovance MD500 MD500-2S2.2G 2.2 1PH AC200-240V(±15%) 9.6 V/F/SVC/FVC 150% for 60s 500Hz RS485/Modbus RTU IP20 0~50℃ Closed-loop vector control; Low speed stability Food processing/Packaging
Inovance MD500 MD500T7.5G 7.5 3PH AC380-480V(±15%) 17.0 V/F/SVC/FVC 150% for 60s 500Hz RS485/Modbus RTU/Profinet IP20 0~50℃ G/P type; Profibus-DP expandable Pump/Fan/Compressor
Inovance MD500 MD500T37G 37 3PH AC380-480V(±15%) 75.0 V/F/SVC/FVC 130% for 60s 500Hz RS485/Modbus RTU/EtherCAT IP20 0~50℃ Heavy duty; Multi-bus support Crane/Construction hoist/Blender
Inovance MD500 MD500T110G 110 3PH AC380-480V(±15%) 210.0 V/F/SVC/FVC 130% for 60s 500Hz RS485/Modbus RTU/Ethernet IP00 0~50℃ High power; Overvoltage protection Compressor/Large pump/Fan
Inovance MD500 MD500T450G 450 3PH AC380-480V(±15%) 820.0 V/F/SVC/FVC 130% for 60s 500Hz RS485/Modbus RTU/EtherCAT IP00 0~50℃ Ultra heavy duty; System integration Industrial water supply/Large machinery
