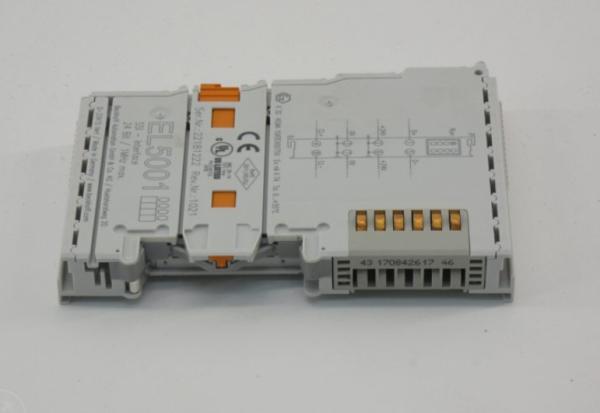

Beckhoff EL5001 1-channel Encoder Distributed Clock Absolute Encoder
Beckhoff EL5001 1-channel Encoder Distributed Clock Absolute Encoder
Specifications
Display :
Optional LCD or LED indicators
Communicationprotocol :
Modbus, Ethernet/IP, Profibus
Delivery Time :
5-7 days
Mountingtype :
DIN rail or panel mount
Model Number :
EL5001
Payment Terms :
T/T
Supply Ability :
10000 pcs
Price :
Negotiable
MOQ :
1 pcs
Brand Name :
Beckhoff
Output Method :
Relay
Part Type :
Sysmac CPM2A
Processortype :
Microprocessor-based
Productname :
Programmable Logic Controller
Description

Beckhoff EL5001 | English Product Specification (ECE Standard, Icon+Text Layout)


Core Tags:Beckhoff, EL5001, 1-channel Encoder, Distributed Clock, Absolute Encoder, SSI Interface

Document fully complies with ECE industrial component documentation standards with corresponding icons for each sectionBeckhoff.

1. Product Overview ⚙️ | Icon: Absolute Encoder + EtherCAT Bus


EL5001 is a standard EtherCAT slave terminal developed by Beckhoff, acting as a single-channel SSI master interface module dedicated to connecting single-turn and multi-turn SSI absolute encoders via RS422 differential wiring (D+/D-, CL+/CL-)倍福自动化. It supplies 24VDC operating power directly to field SSI absolute encoders; 5V encoder power supply is available with auxiliary EL9505 terminal as an optionBeckhoff. The module converts raw absolute position data from encoders into standardized EtherCAT process data and transmits real-time position feedback to TwinCAT PLC and motion controllers over EtherCAT fieldbus. Equipped with native Distributed Clock (DC) synchronization, it achieves high-precision synchronous position sampling to realize closed-loop multi-axis motion control across automated equipmentBeckhoff.

2. Core Advantages & Key Features ✨ | Icon: High Precision | Distributed Clock | Differential Signal | Compact DIN Mount


  1. Integrated Distributed Clock Synchronization: Native DC function synchronizes encoder position sampling with global EtherCAT bus cycle, eliminates asynchronous sampling deviation for high-precision multi-axis linkage motion control倍福自动化.
  2. Flexible SSI Parameter Configuration: Supports Gray/Binary dual coding mode, adjustable baud rate up to 1MHz(default:250kHz), configurable position data length from 8~32Bit, compatible with mainstream global SSI absolute encoders.
  3. Full Differential RS422 Signal Transmission: Complete D+/D-, CL+/CL- differential wiring improves anti-interference performance under harsh industrial environment; 500V isolation between E-bus and field circuit prevents surge damage.
  4. Built-in Fault Diagnosis Function: Independent power failure alarm bit embedded into process data, real-time feedback of encoder power loss or communication dropout via EtherCAT diagnostic register for quick troubleshootingBeckhoff.
  5. Ultra-slim Modular Structure: 12mm narrow DIN rail housing, seamlessly cascades with other EL-series EtherCAT IO terminals on standard 35mm EN DIN rail to save cabinet layout space.
  6. Standardized TwinCAT Matching: Optimized driver for Beckhoff TwinCAT system, one-click parameter setup to accelerate commissioning of motion control projects.
