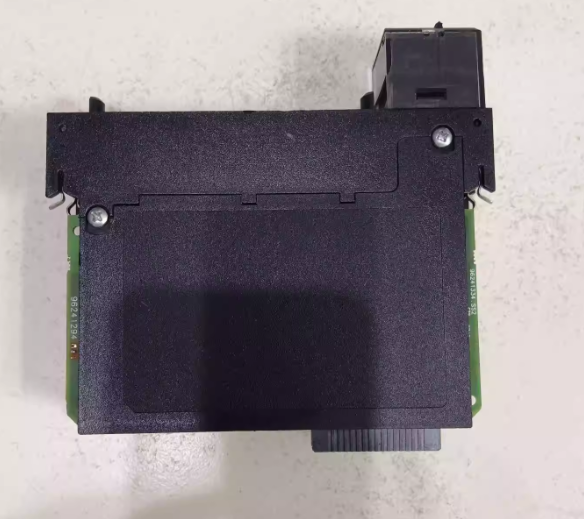

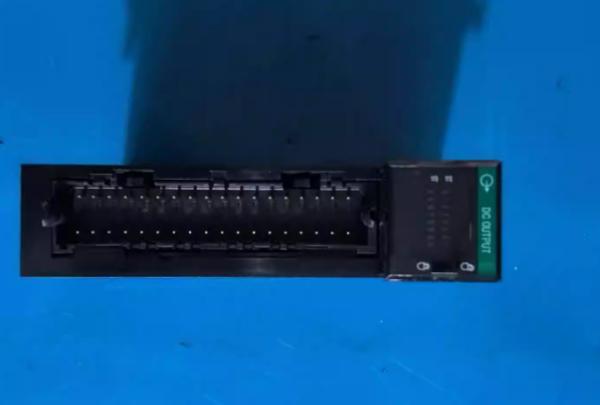

Allen Bradley 1756-0B16I PLC Programmable Logic Controller
Allen Bradley 1756-0B16I PLC Programmable Logic Controller
Allen Bradley 1756-0B16I PLC Programmable Logic Controller
Allen Bradley 1756-0B16I PLC Programmable Logic Controller
Specifications
Payment Terms :
T/T
Brand Name :
Allen‑Bradley
Actual Price :
Negotiabled
Delivery Time :
5-7 days
Supply Ability :
10000 pcs
Price :
Negotiable
Output Method :
Transistor
Power Supply Voltage :
100 – 240VAC.
MOQ :
1 pcs
Model Number :
1756-0B16I
Application :
Spinning machine, conveyer belt
Description
I. Core Specifications (Official Parameters)
Item Detailed Parameters
Model 1756-OB16I Series ControlLogix
Number of Channels 16, single channel independent electrical isolation
Output Type 12/24V DC sink current / sourcing current universal
Operating Voltage 10–30V DC (rated 24V DC)
Maximum Current per Channel 2 A @30°C; 1 A @60°C (linear derating)
Maximum Total Current of Module 8 A @30°C; 4 A @60°C (linear derating)
Surge Current 4 A / point, lasting 10 ms, repeatable every 2 s
Minimum Load Current 1 mA / point
On-state Voltage Drop ≤1.2 V DC @2 A
Turn-off Leakage Current ≤0.5 mA / point
Output Delay Off→On: ≤1 ms; On→Off: ≤2 ms
Isolation Withstand Voltage Channel - Backplane: 250V DC continuous; Channel-to-Channel: 125V DC continuous; 1350V AC 2s test
Backplane Power Consumption 5.1V: 350 mA; 24V: 2.5 mA; Total Power Consumption: 1.8 W
Maximum Power Consumption 3.6 W @60°C
Net Weight 0.20 kg (0.44 lbs)
Mounting Single-slot ControlLogix rack; Removable Terminal Block (RTB)
Terminal Type 1756-TBCH / 1756-TBS6H
Fault Status Configurable: Hold Last State / Normally Open / Normally Closed (Default Normally Closed)
Environment 0–60°C; 5–95% RH (Non-condensing); IP20; UL/CSA/CE Certified
Life Cycle Active (In Production)
II. Key Features
  • Fully Isolated Design: 16 independently isolated channels, strong anti-interference, good fault isolation, suitable for complex industrial environments.
  • Wide voltage compatibility: 10–30V DC, suitable for 12V/24V industrial loads.
  • High load capacity: Maximum 2A per channel, meeting the drive requirements of solenoid valves and high-power relays.
  • Status indication: Green LED on each channel indicates output status; red LED on the module indicates fault.
  • Flexible configuration: Output status can be configured via software in fault/programming modes.
  • No reverse polarity protection: Pay attention to polarity during wiring; reverse connection may damage the module.
III. Logistics and Packaging Reference
  • Net weight: 0.20 kg (module body, excluding terminal blocks).
  • Gross weight suggestion: Including packaging and terminal blocks, calculated at 0.3–0.4 kg/unit.
  • Dimensions: Standard ControlLogix single-slot module, approximately 118*138*30 mm.
