Weinview TK6070IH2WV 7-inch Touchscreen LCD HMI with 24V DC Operating Voltage and IP65 Front Panel Protection
Weinview TK6070IH2WV 7-inch Touchscreen LCD HMI with 24V DC Operating Voltage and IP65 Front Panel Protection
Weinview TK6070IH2WV 7-inch Touchscreen LCD HMI with 24V DC Operating Voltage and IP65 Front Panel Protection
Weinview TK6070IH2WV 7-inch Touchscreen LCD HMI with 24V DC Operating Voltage and IP65 Front Panel Protection
Specifications
Brand Name :
Weinview
MOQ :
1 pcs
Memorycapacity :
128 MB Flash, 64 MB RAM
Delivery Time :
5-7 days
Operatingtemperaturerange :
-20°C to 60°C
Inputmethod :
Capacitive touch
Dimensions :
190mm x 140mm x 40mm
Communicationports :
Ethernet, USB, RS232, RS485
Payment Terms :
T/T
Supply Ability :
10000pcs
Model Number :
TK6070IH2WV
Certification :
Brand new original
Weight :
500 grams
Price :
Negotiable
Description

Weinview TK6070IH2WV 7-inch Touchscreen LCD HMI

1. Product Overview

The Weinview TK6070IH2WV is a 7-inch industrial HMI (Human Machine Interface) from Weinview classic TK series, widely applied in industrial automation control systems. It adopts high-definition TFT LCD display and 4-wire resistive touch panel, featured with 24V DC power supply and IP65 front panel protection against dust and water splash. Built-in high-performance processor and rich communication ports ensure stable operation and strong compatibility with mainstream PLC brands. All units are 100% original brand new, factory sealed with complete accessories and documents.

Basic Information Table

Item Specification
Model TK6070IH2WV
Brand Weinview (Weintek)
Screen Size 7 inch, 16:9 widescreen
Display Type TFT LCD
Touch Type 4-wire analog resistive touch
Operating Voltage 24 VDC (24±20% VDC)
Front Panel Protection IP65 (Dustproof & splashproof)
Condition Original New, Factory Sealed
Net Weight Approx 0.8 kg
Certification CE, RoHS, UKCA
Warranty 12 Months

2. Detailed Technical Parameters

This HMI integrates excellent display performance, powerful running capacity and reliable industrial design, meeting long-term continuous operation requirements in various harsh workshops.

Display System

Parameter Value
Resolution 800 × 480 pixels
Display Color 65536 colors
Brightness 350 cd/m²
Contrast Ratio 500:1
Backlight LED backlight
Backlight Lifespan 30,000 hours

Hardware & Performance

Parameter Value
CPU 32-bit RISC 400MHz processor
Flash Memory 128 MB
DRAM 64 MB DDR2
Real Time Clock Built-in calendar & clock
Cooling System Fanless design, low noise

Communication & Interface

Interface Description
COM Port COM1: RS232; COM2: RS485 (2W/4W), supports MPI 187.5K
USB Port Mini USB 2.0 (for program download & data transmission)

Mechanical & Environmental Specification

Item Specification
Overall Dimension (W×H×D) 200 × 146 × 41.8 mm
Panel Cutout Size 192 × 138 mm
Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Relative Humidity 10% ~ 90% (non-condensing)
Vibration Resistance Compliant with industrial standard IEC 60068-2

3. Core Features

  • Industrial Grade Protection: IP65 front panel effectively resists dust, oil and water splash, suitable for factory floor, workshop and outdoor industrial scenarios.
  • Stable Power Supply: 24V DC wide voltage input with built-in power isolator, prevents voltage fluctuation damage and ensures safe operation.
  • High Compatibility:Delta and other mainstream PLCs, easy for system integration.
  • Durable Touch Panel: 4-wire resistive touch screen supports long-time frequent touch operation, high sensitivity and long service life.
  • Fanless & Low Consumption: No fan design reduces failure rate and running noise, energy-saving for 24-hour continuous working.
  • Easy Installation: Standard embedded mounting structure, simple installation and maintenance.
  • Complete Software Support: Support official EB8000 programming software, free download and upgrade.

4. Application Fields

This 7-inch Weinview HMI is widely used in various industrial automation equipment:

  • PLC control system & automated production lines
  • Packaging machinery, printing machinery and textile equipment
  • Food, beverage and pharmaceutical processing machines
  • CNC machine tools and intelligent processing equipment
  • Water treatment, environmental protection equipment
  • Logistics conveying and lifting equipment
  • Building material and new energy automation systems

5. Packaging & Delivery

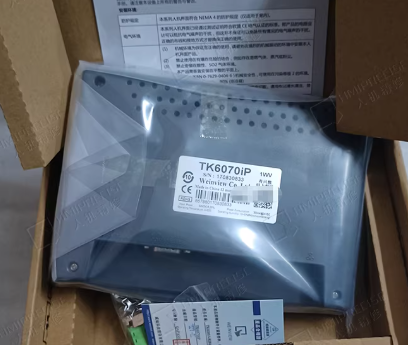

  • Packaging: Original export carton with shockproof foam, moisture-proof and anti-collision.

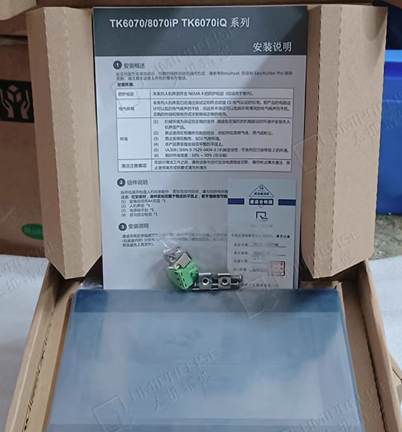

  • Package Contents: 1 × TK6070IH2WV HMI, User manual, Installation accessories, Warranty card.
  • Shipping: Support global sea freight, air freight and international express. Fast delivery and stable supply.
