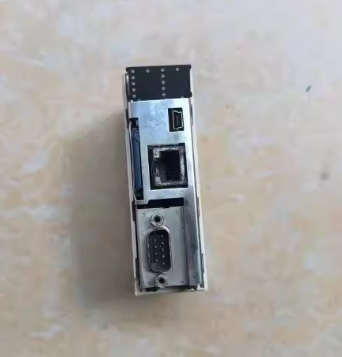

Schneider BMXNOE0100 Modicon M340 Modular PLC With 512KB Memory
Schneider BMXNOE0100 Modicon M340 Modular PLC With 512KB Memory
Specifications
Power Supply Voltage :
100 – 240VAC.
Part Type :
Sysmac CPM2A
Brand Name :
Schneider
Certification :
Brand new original
Payment Terms :
T/T
MOQ :
1 pcs
Price :
Negotiable
Points :
40 (24DI+16DO)
Power_Consumption :
5 W
Part No :
3603T
Model Number :
BMXNOE0100
Supply Ability :
10000 pcs
Dimensions :
90 mm x 100 mm x 75 mm
Delivery Time :
5-7days
Description

Schneider BMXNOE0100｜Modicon M340 Ethernet Module

1. Product Overview


BMXNOE0100 is original Schneider Ethernet TCP/IP communication module exclusively for Modicon M340 PLC system with built-in 512KB onboard memory. It serves as core network gateway to realize Modbus TCP industrial ethernet communication, connecting M340 CPU with HMI, SCADA system, inverters, servo drives and remote I/O modules; also supports interconnection among multiple M340 PLC units to build distributed automation network. Equipped with embedded Web Server, it enables remote program download, online diagnosis, real-time data monitoring without on-site programming operation, widely used for centralized data acquisition and automatic production control of full industrial equipment.

2. Core Product Advantages


  1. Built-in 512KB Memory + Optional Flash Card Slot: Support program, parameter & production recipe offline backup, match 16MB memory card for large-capacity data storage, data protection against power failure.
  2. 10/100Mbps Auto-adaptive RJ45 Ethernet Port: Stable Modbus TCP master/slave communication, max 16 concurrent TCP connections, high-speed periodic I/O scanning & global data sharing between PLC racks.
  3. Embedded Web Server & Multi-protocol Compatibility: Integrate HTTP/FTP/SNMP/FDR protocols, access PLC status via browser remotely; remote firmware upgrade by FTP to reduce maintenance downtime.
  4. Plug-and-play on M340 Backplane: Directly plug into Modicon M340 base rack, no extra wiring, configure via EcoStruxure Control Expert / Unity Pro quickly.
  5. Industrial Grade Reliability & Full Certification: IP20 protection, wide working temperature range, passed CE/UL/RoHS/REACH certification, fully comply with EU ECC import customs clearance standard, adapt dusty & humid workshop environment.
  6. Full LED Status Indication: RUN/ERR/ETH indicator lights for real-time network fault quick troubleshooting.

3. Technical Specifications



Item Parameter
Model No. BMXNOE0100
Brand Schneider Electric
Series Modicon M340 PLC System
Onboard Memory 512KB
Ethernet Interface 1×RJ45,10/100BASE-TX auto-adaptive
Supported Protocol Modbus TCP,HTTP,FTP,SNMP,FDR,Global Data,I/O Scan
Power Supply 24VDC via PLC backplane, Rated Current:90mA
Dimension 33×100×86mm
Net Weight 0.2KG/PCS；Packing Gross Weight:0.35KG(DDP 计费参考)
Protection Grade IP20
Working Temperature 0℃ ~ +60℃, Humidity 10~95% non-condensing
Certification CE,UL,RoHS,REACH(EU ECC compliant)

4. Application Industries & Scenarios


Applicable Fields


Water & Wastewater Treatment, Packaging Machinery, Food Processing, HVAC Building Automation, New Energy Equipment, Metallurgy, Chemical Industry, Logistics Conveyor & Automotive Assembly Line

Typical Usage


  1. Water plant pump group centralized monitoring & pool liquid level automatic control
  2. Packaging/production line PLC-HMI networking & frequency converter cluster communication
  3. Factory building HVAC, lighting centralized intelligent control
  4. New energy small power station & distribution cabinet data collection
