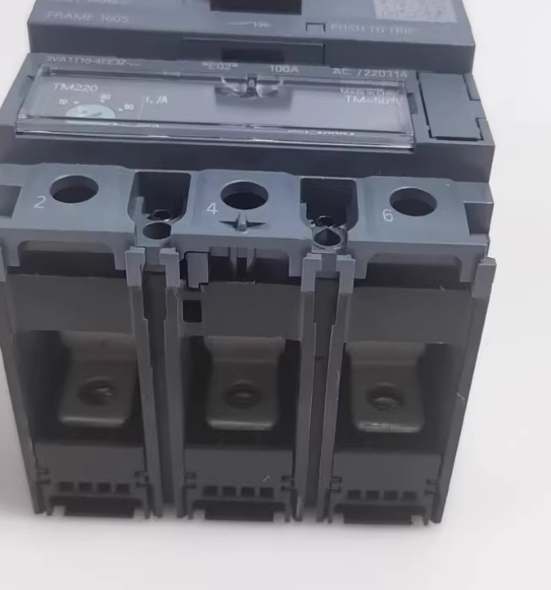

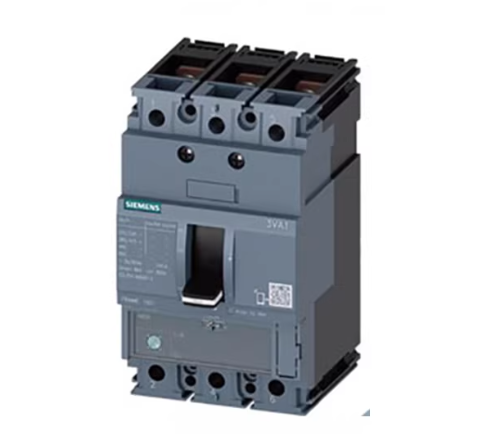

Siemens 3VA1116-4EE32-0AA0 SENTRON 3VA1 IEC Frame 160 Molded Case Circuit Breaker (MCCB)
Siemens 3VA1116-4EE32-0AA0 SENTRON 3VA1 IEC Frame 160 Molded Case Circuit Breaker (MCCB)
Siemens 3VA1116-4EE32-0AA0 SENTRON 3VA1 IEC Frame 160 Molded Case Circuit Breaker (MCCB)
Siemens 3VA1116-4EE32-0AA0 SENTRON 3VA1 IEC Frame 160 Molded Case Circuit Breaker (MCCB)
Siemens 3VA1116-4EE32-0AA0 SENTRON 3VA1 IEC Frame 160 Molded Case Circuit Breaker (MCCB)
Siemens 3VA1116-4EE32-0AA0 SENTRON 3VA1 IEC Frame 160 Molded Case Circuit Breaker (MCCB)
Specifications
Brand Name :
Siemens
Model Number :
3VA1116-4EE32-0AA0
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100PCS 1week
Delivery Time :
5-7days
Description
Siemens SENTRON 3VA1 Molded Case Circuit Breaker
Product Overview
Order Number: 3VA1116-4EE32-0AA0
Product Series: Siemens SENTRON 3VA1 Low Voltage Circuit Breakers
Module Type: 3-pole line protection MCCB with thermal-magnetic trip unit
Rated Current: 160 A
Breaking Capacity: S Class (Icu=36 kA @ 415 V 50 Hz)
Electrical Specifications
Rated Voltage 400/415 V AC (50/60 Hz), 690 V AC (50/60 Hz)
Rated Working Voltage 690 V AC
Overload Protection Setting 112 A to 160 A (adjustable)
Short-circuit Protection 10 x In (fixed)
Short-circuit Breaking Capacity 36 kA @ 415 V 50 Hz; 18 kA @ 690 V 50 Hz
Connection Type Nut keeper kit (round conductor terminal, stranded)
Conductor Cross-section Up to 95 mm² (copper), Up to 70 mm² (aluminum)
Mechanical Specifications
Mounting Method Front mounting (4-hole)
Dimensions (W*H*D) 101.6 mm * 130 mm * 70 mm (4 in * 5.12 in * 2.76 in)
Protection Rating IP40 (front face), IP20 (terminals)
Mechanical Endurance 20,000 operations (no-load)
Electrical Endurance 500 operations (rated current)
Weight Approx. 2.3 kg (5.07 lb)
Environmental Specifications
Operating Temperature -25 °C to +70 °C (with derating above 40 °C)
Storage Temperature -40 °C to +85 °C
Relative Humidity 5% to 95% non-condensing
Altitude Rating 0 to 2000 m without derating; up to 4000 m with derating
Vibration Resistance 5 g (10-500 Hz)
Certifications & Standards
Safety Certifications: CE, UL, cUL, ATEX, IECEx, RoHS
EMC Compliance: EN 61000-6-2, EN 61000-6-4, IEC 61000-3-2, IEC 61000-3-3
Industry Standards: IEC 60947-2, EN 60947-2, UL 489, CSA C22.2 No. 5
Key Features
  • Adjustable thermal overload protection (112-160 A range)
  • Fixed magnetic short-circuit protection (10*In instantaneous trip)
  • Designed for distribution line protection in industrial and commercial applications
  • Visual trip indication for thermal/magnetic events
  • Compatible with 3VA1 series accessories
  • Tool-free front access for operation and adjustments
  • High mechanical and electrical endurance for long service life
