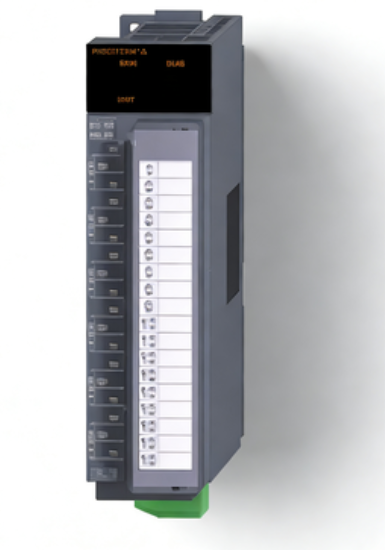

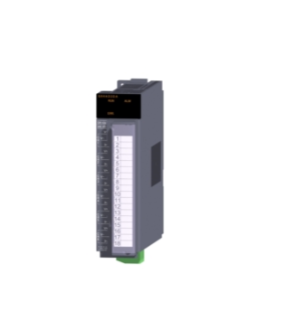

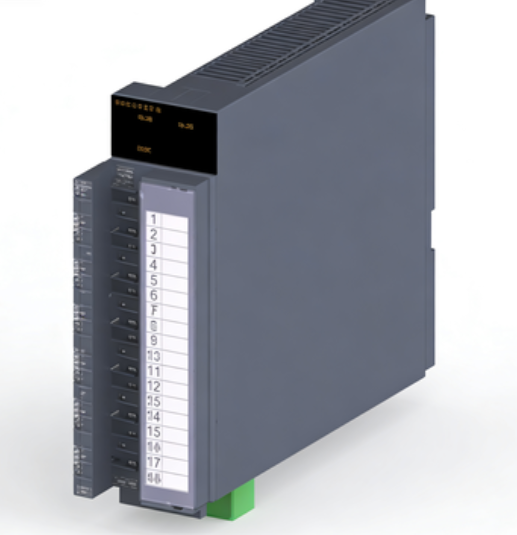

MITSUBISHI Q64ADH PLC Q series;analogue input module;4 channels
MITSUBISHI Q64ADH PLC Q series;analogue input module;4 channels
MITSUBISHI Q64ADH PLC Q series;analogue input module;4 channels
MITSUBISHI Q64ADH PLC Q series;analogue input module;4 channels
MITSUBISHI Q64ADH PLC Q series;analogue input module;4 channels
MITSUBISHI Q64ADH PLC Q series;analogue input module;4 channels
Specifications
Operating_Temperature_Range :
-20°C to 60°C
Price :
Negotiable
Supply Voltage Type :
AC
Brand Name :
MITSUBISHI
Number_of_Inputs :
14
Payment Terms :
T/T
Output Method :
Transistor
Weight :
0.15 KG
Delivery Time :
5-8days
MOQ :
1
Model Number :
Q64ADH
Place of Origin :
china
Packaging Details :
pieces
Points :
40 (24DI+16DO)
Description

MITSUBISHI Q64ADH Analog Input Module

1. Product Overview

The MITSUBISHI Q64ADH is a high-performance 4-channel analog input module designed for the MELSEC-Q series PLC systemMitsubishi Electric Europe e-shop. It converts analog voltage/current signals from field sensors (temperature, pressure, flow) into digital data for PLC processing, enabling precise monitoring and closed-loop control in industrial automation.

2. Product Advantages & Core Features

  • Ultra-fast Conversion Speed

    20 μs per channel, ensuring rapid and accurate signal acquisition for high-dynamic processes.
  • Multi-range Input Flexibility

    Supports voltage (-10~10V, 0~10V, 0~5V, 1~5V) and current (0~20mA, 4~20mA) inputs, compatible with standard industrial sensors.
  • High-resolution & Precision

    16-bit resolution, with digital output ranges up to -20000~20000, delivering accurate measurement for critical applications三菱電機 Mitsubishi Electric.
  • Strong Anti-interference Design

    Built-in noise filtering and channel-to-channel isolation, stable operation in harsh electromagnetic environments.
  • Compact & Easy Integration

    Narrow 27.4mm width, plug-in mounting for Q-series PLC backplane, reducing cabinet space and wiring complexity.
  • User-friendly Configuration

    Software-configurable input ranges and scaling functions, no hardware jumpers required for setup.

3. Technical Parameters

表格



Item Specification
Model Q64ADH
Series MELSEC-Q Series
Number of Channels 4 analog input channels
Input Type Voltage / Current (selectable)
Voltage Input Ranges -10~10V, 0~10V, 0~5V, 1~5V
Current Input Ranges 0~20mA, 4~20mA
Resolution 16-bit
Digital Output Range -20000~20000 (standard)
Conversion Speed 20 μs per channel
Input Impedance Voltage: 1MΩ; Current: 250Ω
Terminal Block 18-point screw terminal
Occupied I/O Points 16 points
Power Consumption 0.52A (5V DC)
Working Temperature 0°C ~ 55°C
Protection Grade IP20
Dimensions (W×H×D) 27.4mm × 98mm × 112mm
Weight Approx. 180g

4. Application Industries & Scenarios

Main Application Industries
