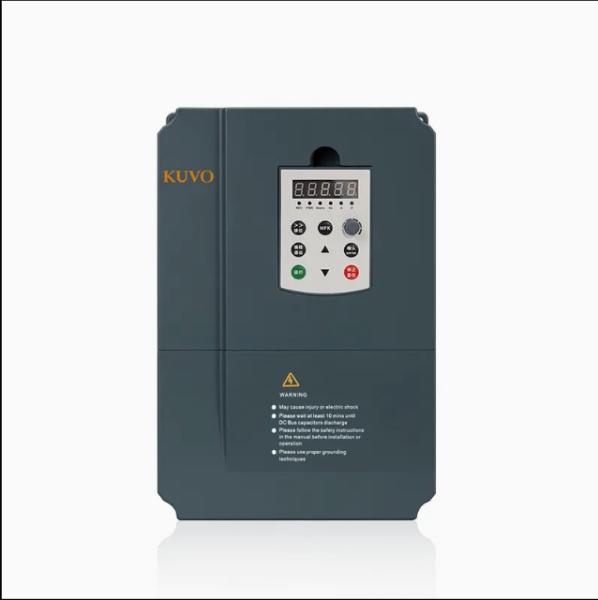

Milano 380V Three Phase VFD Milano KV90-037G-4-PV 380V Three Phase Overall Dimensions：420H (mm) 255W (mm) 210D (mm) Mounting Dimensions：405A (mm) 95B (mm)
Milano 380V Three Phase VFD Milano KV90-037G-4-PV 380V Three Phase Overall Dimensions：420H (mm) 255W (mm) 210D (mm) Mounting Dimensions：405A (mm) 95B (mm)
Specifications
Model Number :
KV90-037G-4-PV
Packaging Details :
Pieces
Safety Features :
Overvoltage, undervoltage, overcurrent, short circuit protection
Acceleration/Deceleration Time :
0.1 to 6000 seconds
Harmonic Distortion :
< 5%
Output Frequency :
0-400 Hz
Input Voltage :
200-480V AC
Delivery Time :
1week
Cooling Method :
Forced air cooling
Power Rating :
0.5 kW to 500 kW
Protection Class :
IP20 to IP54
Overload Capacity :
150% for 1 minute
Price :
Negotiable
Brand Name :
Milano
Supply Ability :
20PCS 1week
Display Type :
LCD or LED
MOQ :
1pcs
Payment Terms :
T/T
Place of Origin :
China
Output Voltage :
0-480V AC
Communication Protocols :
Modbus, Profibus, Ethernet/IP
Certification :
CO
Control Method :
V/F Control, Vector Control, Sensorless Vector Control
Operating Temperature :
-10°C to 50°C
Mounting Type :
Wall-mounted or panel-mounted
Description
Milano KV90-037G-4-PV 380V Three Phase Variable Frequency Drive
Overall Dimensions: 420H (mm) * 255W (mm) * 210D (mm)
Mounting Dimensions: 405A (mm) * 95B (mm)
Technical Specifications
Electrical Parameters by Model
Parameter -S2 (220V Single-Phase) -I (220V Single-Phase) -4 (380V Three-Phase)
Input Voltage Range (PV)190-450V190-450V270-900V
Recommended Voc Voltage300-400V300-400V450-700V
Optimum MPPT Voltage310V310V540V
Maximum MPPT Efficiencyup to 99%up to 99%up to 99%
Start-up Voltage240V240V350V
Minimum Operating Voltage190V190V270V
Input Voltage Range (AC)1PH 220-240V(±10%)1PH 220-240V(±10%)3PH 380-480V(±10%)
Input Voltage Frequency50/60Hz50/60Hz50/60Hz
Output Voltage Range0-230V0-230V0-480V
Output Frequency Range0-400Hz0-400Hz0-400Hz
Output Power Range0.75-4kW0.75-4kW0.75-185kW
Rated Output Current by Power Rating
Power (kW) -S2 Current (A) -I Current (A) -4 Current (A)
0.75952.7
1.51373.7
2.218105
323137
428179
5.5402513
7.5603217
11754525
15906032
18.51107537
221509045
3017611060
3721015075
45176110
55210150
75176
90210
110250
132300
160340
185400
Performance & Control Features
Motor Compatibility: Single phase motor, Asynchronous motors, Permanent magnet synchronous motor
Control Modes: V/F control, Open-Loop Vector Control, Closed-Loop Vector Control
Overload Capacity: 150% of rated load for 60s; 180% overload capacity for 10s; 200% of overload capacity for 0.5s
Environmental & Installation Specifications
  • Installation: Wall-mounted
  • Protection Class: IP20
  • Working Temperature: -10°C to +50°C (derating 2% per °C above 40°C)
  • Cooling Method: Forced air cooling
  • Humidity: 20% to 95% RH (condensation free)
  • Installation Altitude: Up to 1000m (derating 1% per 100m above 1000m)
