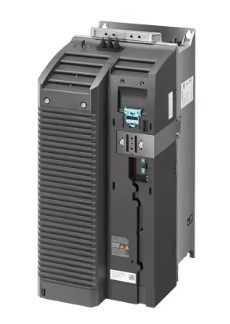

IP20 / UL Open Type SINAMICS G120XA Pump Fan Inverter Siemens 6SL3220-1YD40-0CB0
IP20 / UL Open Type SINAMICS G120XA Pump Fan Inverter Siemens 6SL3220-1YD40-0CB0
IP20 / UL Open Type SINAMICS G120XA Pump Fan Inverter Siemens 6SL3220-1YD40-0CB0
IP20 / UL Open Type SINAMICS G120XA Pump Fan Inverter Siemens 6SL3220-1YD40-0CB0
IP20 / UL Open Type SINAMICS G120XA Pump Fan Inverter Siemens 6SL3220-1YD40-0CB0
IP20 / UL Open Type SINAMICS G120XA Pump Fan Inverter Siemens 6SL3220-1YD40-0CB0
Specifications
Input Voltage :
200-600 V AC
Control Method :
V/f control, Vector control, Sensorless vector control
Output Voltage :
0-Input Voltage (adjustable)
Brand Name :
Simens
Model Number :
6SL3220-1YD40-0CB0
Place of Origin :
Germany/China
MOQ :
1pcs
Price :
＄135‑＄145
Payment Terms :
T/T
Supply Ability :
10pcs 1week
Delivery Time :
5-7work day
Rated Voltage :
380 V DC - 20% to 440 V DC + 10%
Communication Protocols :
Modbus, Profibus, Ethernet/IP, CANopen
Power Range :
0.5 kW to 500 kW
Description
Parameter Category Parameter Name Value
General Information
  Product Type SINAMICS G120XA (Pump & Fan Dedicated Inverter)
  Order Number 6SL3220-1YD40-0CB0
  Frame Size FSE
  Protection Degree IP20 / UL Open Type
  Filter Configuration Integrated Class A C3 Filter
  Operator Panel Without Integrated Operator Panel (Optional)
Input Specifications
  Number of Phases 3 AC
  Rated Voltage 380 V DC - 20% to 440 V DC + 10%
  Rated Frequency 47 Hz to 63 Hz
  Rated Input Current (LO) 106.00 A
Output Specifications
  Number of Phases 3 AC
  Rated Output Voltage 0 V to Input Voltage (380-440V)
  Rated Output Power (IEC 400V, LO) 55.00 kW
  Rated Output Current (400V, LO) 103.00 A
  Rated Output Current (380V, LO) 108.00 A
  Max Output Current 113.00 A (110% for 60s per 600s)
  Frequency Range 0.00 Hz to 600.00 Hz
  Control Modes V/f (Linear, Parabolic, FCC, ECO), SLVC (Sensorless Vector Control)
Overload Capability
  Overload Rating 110% for 60s within a 600s cycle time (Low Overload)
  Base Load Rating 100% continuous operation
Communication Interfaces
  Integrated Fieldbuses MODBUS RTU, BACnet MS/TP, USS
  Serial Interfaces 1 x RS-485 (for fieldbus communication)
Digital I/O
  Number of Digital Inputs 6 DI (24V DC)
  Number of Digital Outputs 4 DO (24V DC, 0.5A each)
Analog I/O
  Number of Analog Inputs 2 AI (0-10V / 4-20mA, configurable)
  Number of Analog Outputs 2 AO (0-10V / 4-20mA, configurable)
Motor Protection
  Integrated Motor Protection 1 x Motor Temperature Input (PTC/KTY)
Cooling System
  Cooling Method Air cooling using integrated fan
  Cooling Air Requirement 0.083 m³/s (2.931 ft³/s)
Ambient Conditions
  Operating Temperature -10°C to +40°C (without derating), up to +45°C (with derating)
  Storage/Transport Temperature -40°C to +70°C
  Relative Humidity 5% to 95% (non-condensing, 25°C)
  Installation Altitude Up to 1000m (sea level, no derating), 1000m to 2000m (with derating)
  Standard Board Coating Class 3C2, according to IEC 60721-3-3: 2002
Dimensions
  Height 551 mm
  Width 275 mm
  Depth 239 mm
Weight
  Approximate Net Weight 28.5 kg
Power Loss
  Max Power Loss 1.55 kW
Pulse Frequency
  Default Pulse Frequency 4 kHz (adjustable up to 16 kHz)
Standards Approvals
  CE Mark Yes
  UL Certification Yes
  CSA Certification Yes
