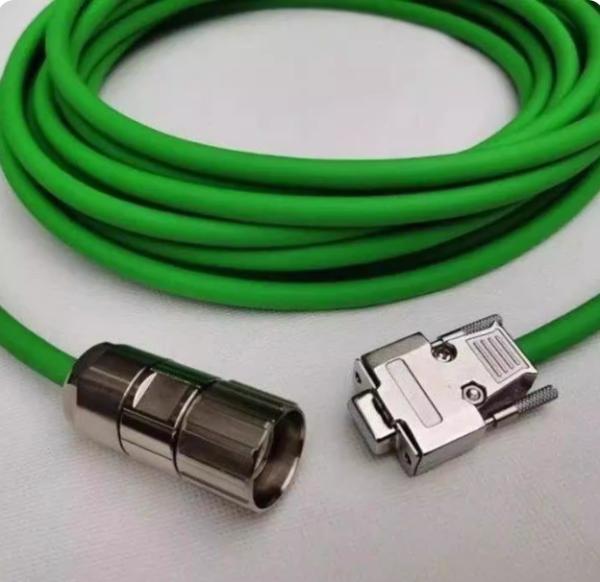

Allen-Bradley 2090-CSBM1DE-08AF20 cable
Allen-Bradley 2090-CSBM1DE-08AF20 cable
Specifications
Brand Name :
Allen‑Bradley
Model Number :
2090-CSBM1DE-08AF20
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs
Delivery Time :
5-7 days
Description
Allen-Bradley 2090-CSBM1DE-08AF20 Single Motor Cable
The 2090-CSBM1DE-08AF20 is a single-motor cable from Rockwell Automation's Allen-Bradley 2090 series, designed specifically for Kinetix motion control systems. This dedicated accessory provides stable power transmission, feedback signal transmission, and brake control signal transmission between servo drives and servo motors, serving as a critical component in industrial automation motion control systems.
Product Overview
Optimized for Kinetix 5700 servo drives, this cable features continuous flexible TPE material with a single SpeedTec DIN motor-side connector and loose-wire drive-side design. It includes a pre-wired feedback connector kit, eliminating the need for on-site lead fabrication. Directly compatible with Kinetix VP series servo motors, it's ideal for industrial motion control scenarios requiring frequent bending and long-term stable transmission.
Technical Specifications
Parameter Specification Details
Product Model 2090-CSBM1DE-08AF20 Allen-Bradley 2090 series single motor cable, UPC: 191326407120, compatible with Kinetix motion control systems
Cable Type Single motor power + feedback + brake combination cable TPE material, continuous flexible design, overall shielding for signal anti-interference
Wire Gauge 8 AWG (approx. 8.37mm²) Multi-strand copper wire, industrial-grade voltage insulation, wear-resistant and anti-aging
Connector Configuration Motor End: Single SpeedTec DIN connector
Driver End: Loose power/brake cable + pre-wired feedback connector		 Optimized for Kinetix 5700 servo drive, 1/4 turn locking mechanism for easy installation
Cable Length 20 meters (65.6 feet) Suitable for medium to long-distance connections, coiled storage prevents transport damage
Environmental Parameters Operating temperature: -20℃ to 80℃ Oil-resistant, wear-resistant, overall shielding for EMI protection, suitable for harsh industrial environments
Compatible Equipment Kinetix 5700 servo drive
Kinetix VP series servo motor		 Rockwell Kinetix motion control system compatibility only
Certifications CE, UL, CSA Compliant with Rockwell 2090 Series standards and international industrial safety standards
Key Features
  • Integrated Transmission: Combines power, feedback, and brake control signals in one cable, simplifying system wiring and reducing interference risks
  • Continuous Flexible Design: TPE material withstands repeated bending in dynamic applications, extending service life in equipment movement scenarios
  • Easy Installation: Pre-wired feedback connector eliminates on-site termination, SpeedTec DIN connector locks with 1/4 turn rotation
  • High Interference Resistance: Overall shielding design prevents EMI, ensuring stable signal transmission and precise motor positioning
  • Dedicated Compatibility: Optimized for Kinetix 5700 drives and Kinetix VP motors with plug-and-play functionality
  • Industrial Durability: Oil-resistant, wear-resistant TPE material withstands harsh environments and wide temperature ranges
Application Note: This cable is specifically designed for Rockwell Automation Kinetix motion control systems. Do not adapt to other product series to avoid signal transmission abnormalities or equipment damage.
