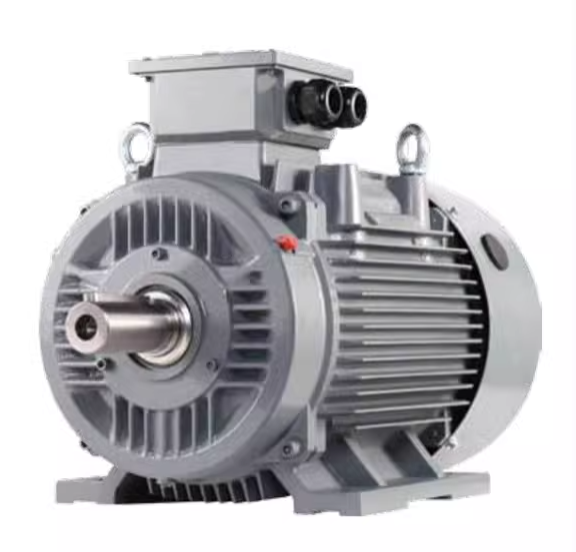

Honeywell IE3 Industrial Motors IP55 Protection HME3-132MA4-GS 7.5KW 4P B3
Honeywell IE3 Industrial Motors IP55 Protection HME3-132MA4-GS 7.5KW 4P B3
Honeywell IE3 Industrial Motors IP55 Protection HME3-132MA4-GS 7.5KW 4P B3
Honeywell IE3 Industrial Motors IP55 Protection HME3-132MA4-GS 7.5KW 4P B3
Specifications
Brand Name :
Honeywell
Model Number :
HME3-132MA4-GS 7.5KW-4P-B3
Certification :
Brand new original
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs
Delivery Time :
5-7 days
Mountingtype :
Foot-mounted / Flange-mounted
Speed :
750 RPM to 3600 RPM
Phase :
Three-phase
Dutycycle :
S1 (Continuous)
Insulationclass :
Class F / Class H
Efficiency :
IE2 to IE4
Protectionrating :
IP54 / IP55 / IP65
Frequency :
50 Hz / 60 Hz
Productname :
Industrial Motors
Material :
Cast iron / Aluminum housing
Voltage :
220V to 690V
Powerrating :
0.5 kW to 500 kW
Coolingmethod :
TEFC (Totally Enclosed Fan Cooled)
Framesize :
56 to 355 mm
Application :
Pumps, compressors, conveyors, fans
Description
Honeywell HME3-132MA4-GS 7.5KW-4P-B3 Industrial Motor
High-performance IE3 ultra-high efficiency industrial motor designed for demanding applications with reliable operation and energy savings.
Electrical Specifications (380V/50Hz)
Model HME3-132MA4-GS
Power Rating 7.5kW (10HP)
Number of Poles / Synchronous Speed 4P / 1500rpm
Rated Speed Approximately 1460rpm
Rated Current Approximately 15.5A
Efficiency ≥ 88.7% (IE3 Ultra-High Efficiency)
Power Factor Approximately 0.83
Insulation / Temperature Rise Class F insulation, Class B temperature rise (120K)
Protection Rating IP55 (dustproof and waterproof)
Cooling Method IC411 (self-ventilated)
Overload Capacity 150% of rated current, continuous for 60s
Starting Torque / Rated Torque ≥ 2.0 times
Maximum Torque / Rated Torque ≥ 2.2 times
Moment of Inertia Approximately 0.045 kg·m²
Weight Approximately 90 kg
Mechanical Specifications & Installation
Frame Size 132M (cast iron frame)
Installation Method B3 (horizontal, foot mounting)
Shaft Extension Single key shaft, D=38mm, E=80mm
Junction Box 4*90° rotatable, IP55 rated
Bearings Front and rear standard international brand deep groove ball bearings
Operating Environment -20℃ to +40℃, altitude ≤1000m, humidity ≤95% (non-condensing)
Model Designation Breakdown
HME3 HME series IE3 high-efficiency motor
132 Frame center height 132mm
M Frame length (medium frame)
A Core length code
4 4 poles
GS General standard design
Compatibility & Applications
Compatible Inverter: Directly matches Honeywell HD660-T-0007-B (7.5kW) frequency drive
Typical Applications:
  • Fans and blowers
  • Pumps and compressors
  • Conveyor systems
  • Mixers and agitators
  • Packaging machinery
  • Textile machinery
  • Water treatment equipment
