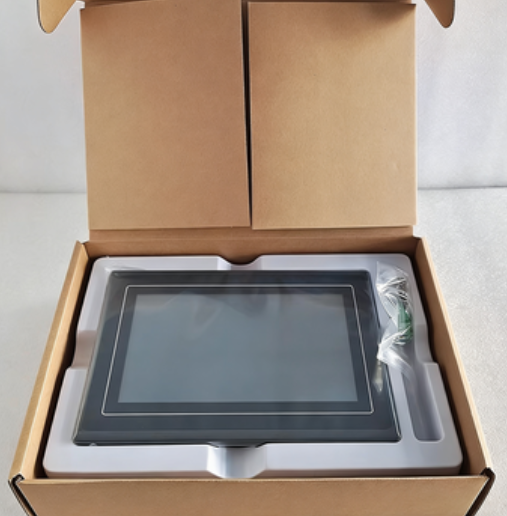

7 Inch LCD Touch Screen Human Machine Interface HMI Panel Weinview MT8070IH2WV
7 Inch LCD Touch Screen Human Machine Interface HMI Panel Weinview MT8070IH2WV
7 Inch LCD Touch Screen Human Machine Interface HMI Panel Weinview MT8070IH2WV
7 Inch LCD Touch Screen Human Machine Interface HMI Panel Weinview MT8070IH2WV
Specifications
Displaytype :
Touchscreen LCD
MOQ :
1 pcs
Certification :
Brand new original
Storagecapacity :
8 GB Flash Memory
Operatingsystem :
Embedded Linux
Brand Name :
Weinview
Delivery Time :
5-7 days
Mountingtype :
Panel Mount
Productname :
Human-Machine Interface (HMI)
Operatingtemperaturerange :
-20°C to 60°C
Inputtype :
Capacitive Touch
Screensize :
7 inches
Powersupply :
24 V DC
Supply Ability :
10000 pcs
Payment Terms :
T/T
Model Number :
MT8070IH2WV
Resolution :
800 x 480 pixels
Price :
Negotiable
Dimensions :
190 mm x 140 mm x 40 mm
Weight :
500 grams
Description
Weinview MT8070IH2WV Touchscreen
The MT8070iH2WV is a 7-inch high-performance industrial touchscreen with Ethernet from WEINVIEW's MT series, designed for networked monitoring, remote maintenance, and multi-device networking applications.
Core Hardware Specifications
Display
7-inch 16:9 widescreen TFT LCD, 800×480 resolution, 65,536 colors, LED backlight with 500 cd/m² brightness and 500:1 contrast ratio
Touch Interface
4-wire precision resistive touch with lifespan ≥ 1 million touches
Processing Core
32-bit RISC 400MHz CPU, 64MB DDR2 memory, 128MB Flash storage with built-in RTC real-time clock
Interface Configuration
Interface Type Specifications
Ethernet 1×10/100M RJ45 (Supports VNC, FTP, Remote Monitoring)
Serial Ports COM1: RS-232/485 2W/4W; COM2: RS-232; COM3: RS-232/485 2W
USB 1×USB 1.1 Host (USB flash drive/mouse), 1×Mini USB 2.0 Client (program download)
Storage 1×SD/SDHC card slot (maximum 32GB)
Audio Line-out (alarm notification)
Physical Specifications
  • Power Supply: 24VDC (±20%), approximately 6W power consumption (250mA@24V) with built-in power isolation protection
  • Dimensions: 200×146×42.5mm (overall), 192×138mm (panel cutout), approximately 0.85kg weight
  • Protection: IP65/NEMA4 front panel rating, fanless cooling design
  • Operating Environment: 0~45°C operating temperature, -20~60°C storage temperature, 10%~90% humidity (non-condensing)
  • Certifications: CE and FCC Class A certified
Software and System Features
  • Programming Software: EB8000 V4.34 and above (free, no licensing fees)
  • Operating System: Windows CE kernel
  • Protocol Support: Compatible with mainstream PLC protocols including Siemens, Mitsubishi, Omron, Delta, and others
  • Network Features: Supports VNC remote monitoring, FTP file transfer, and EasyAccess remote maintenance
Model Designation Breakdown
  • MT: Weinview High-End Series
  • 8: Ethernet Interface
  • 07: 7-inch Screen
  • iH2: Hardware Version iH2
  • WV: WeinView Mainland China Channel Version
Typical Applications
  • Networked equipment monitoring and remote maintenance
  • Multi-PLC networking and centralized production line monitoring
  • Data acquisition and upload systems
  • Remote diagnostics and troubleshooting
  • Replacement of traditional HMIs for enhanced remote management
