Honeywell CPO-VAV2A DCS Input Module With 32 Bit Technology
Honeywell CPO-VAV2A DCS Input Module With 32 Bit Technology
Honeywell CPO-VAV2A DCS Input Module With 32 Bit Technology
Honeywell CPO-VAV2A DCS Input Module With 32 Bit Technology
Specifications
Brand Name :
Honeywell
Model Number :
CPO-VAV2A
Certification :
Brand new original
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs
Delivery Time :
5-7 days
Security :
Role-based access control and cybersecurity features
Architecture :
Distributed with multiple controllers and operator stations
Customization :
Configurable control strategies and logic programming
Userinterface :
Graphical Human-Machine Interface (HMI)
Datalogging :
Historical data storage and trending capabilities
Function :
Automated control of industrial processes
Realtimecontrol :
Provides real-time process monitoring and control
Reliability :
High availability with redundancy features
Communicationprotocol :
Supports multiple protocols such as Modbus, Profibus, Ethernet/IP
Industryapplications :
Used in oil & gas, chemical, power generation, water treatment
Maintenance :
Remote diagnostics and predictive maintenance support
Scalability :
Supports small to large-scale industrial plants
Alarmmanagement :
Advanced alarm detection and notification system
Productname :
Distributed Control System (DCS)
Integration :
Integrates with PLCs, SCADA, and other automation systems
Description

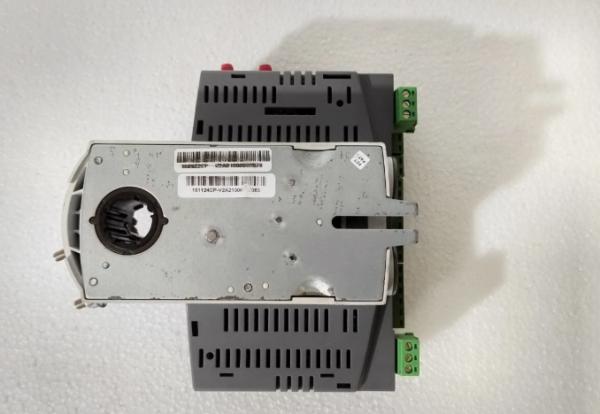

Honeywell CPO-VAV2A Input Module
The CPO-VAV2A-US firmware is a native BACnet series controller based on the B-AAC BACnet protocol. It utilizes 32-bit technology for superior performance and features a direct-coupled damper actuator with clutch mechanism. Supporting standard VAV applications and custom programming, this controller includes Sylk communication capabilities and a built-in real-time clock. It connects to BACnet MS-TP channels of the ComfortPoint Open Plant Controller and integrates seamlessly with ComfortPoint Open Manager and Enterprise Buildings Integrator (EBI).
Features and Benefits
  • Freely Programmable Native BACnet Controller - Fully programmable BACnet controller for flexible system integration
  • Comprehensive Onboard I/O - Features 4 universal inputs, 3 analog outputs, and 6 digital outputs (2 reserved for internal actuators) with integrated airflow sensor
  • Sylk® Communication Port - Two-wire polarity-insensitive bus interface for connecting Sylk® compatible devices
  • Integrated Actuator - 60 Series actuator with 5 Nm torque, 95-degree stroke, and 110/90 second timing (50/60 Hz). Includes clutch mechanism for manual damper operation without power or tools. Supports round (8-16mm) and square (6-13mm) shafts with maximum 35 dBA noise level
  • VAV Application Support - Pre-loaded VAV applications available via ComfortPoint Open Studio with customizable standby point programming
  • Programming and Balancing - Programmable through ComfortPoint Open Studio with online balancing via ComfortPoint Open Online for BACnet MSTP device discovery
  • Simplified Installation - Built-in BACnet router eliminates need for additional routing hardware. Compatible with CPO-PC-6A, CP-IPC, and CP-Core BACnet router systems
Certifications and Compliance
CE Certified - LVD Directive 2006/95/EC (EN 60730-1, EN 60730-2-14)
CE Certified - EMC Directive 2004/108/EC (EN 60730-1, EN 60730-2-9, EN 60730-2-14)
BTL Listed
UL 916 Compliant
FCC Part 15, Sub-Part B, Class B
ICES-003 Certified
UL2043 Compliant - Ventilation duct standards (no additional enclosure required)
UUKL Smoke Control Applications
