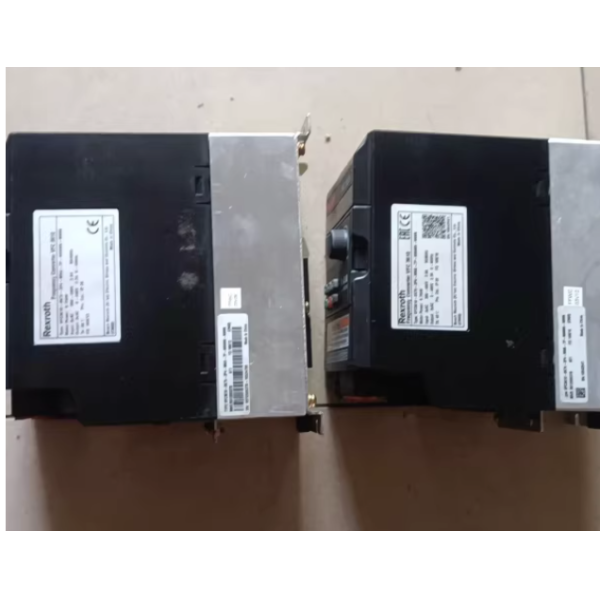

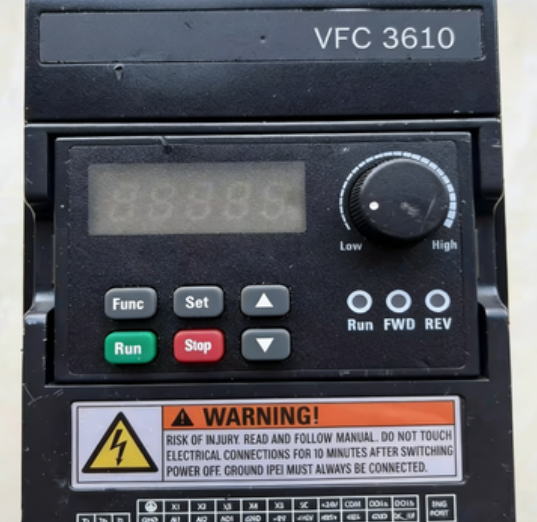

Rexroth VFC3610-0K75-3P4-MNA-7P-N 0.75 kW Rated Power Frequency Inverter with Modbus Communication and 0-400 Hz Output Variable Frequency Drive
Rexroth VFC3610-0K75-3P4-MNA-7P-N 0.75 kW Rated Power Frequency Inverter with Modbus Communication and 0-400 Hz Output Variable Frequency Drive
Rexroth VFC3610-0K75-3P4-MNA-7P-N 0.75 kW Rated Power Frequency Inverter with Modbus Communication and 0-400 Hz Output Variable Frequency Drive
Rexroth VFC3610-0K75-3P4-MNA-7P-N 0.75 kW Rated Power Frequency Inverter with Modbus Communication and 0-400 Hz Output Variable Frequency Drive
Specifications
Mounting Type :
Wall-mounted or Panel-mounted
Certification :
Brand new original
MOQ :
1 pcs
Supply Ability :
10000 pcs
Delivery Time :
5-7 days
Brand Name :
Rexroth
Model Number :
VFC3610-0K75-3P4-MNA-7P-N
Price :
Negotiable
Payment Terms :
T/T
Harmonic Mitigation :
Built-in filters or external options
Ambient Temperature Range :
-10°C to 50°C
Cooling Method :
Forced Air Cooling
Description
Rexroth VFC3610-0K75-3P4-MNA-7P-N Frequency Inverter
Electrical Specifications
Parameter Value
Rated Power 0.75 kW
Input Voltage 3*380–480 V AC, -15%/+10%
Input Frequency 50/60 Hz ±5%
Rated Output Current 4.1 A
Output Frequency Range 0–400 Hz
Overload Capacity 150% * 60 s
Starting Torque 1.5 Hz / 100%; 3 Hz / 150%
Control Method V/f Control
Cooling Method Natural Cooling (Fanless)
Protection Rating IP20
Installation Method DIN Rail Mounting, Seamless Side-by-Side Mounting
Functions and Interfaces
Standard Configuration: Modbus RTU, Built-in Braking Unit (≤22kW Model), Pluggable I/O Terminals
I/O Configuration
  • 2 Analog Inputs (0–10V / 4–20mA Switchable)
  • 1 Analog Output (0–10V / 4–20mA Switchable)
  • 5 Digital Inputs (including 1 50kHz pulse input)
  • 1 Relay Output, 1 Open Collector Output
Expansion Capabilities
2 expansion slots supporting PROFIBUS DP, CANopen and other communication modules
Debugging Features
Supports Mini USB connection to computer for quick debugging and parameter copying with software
