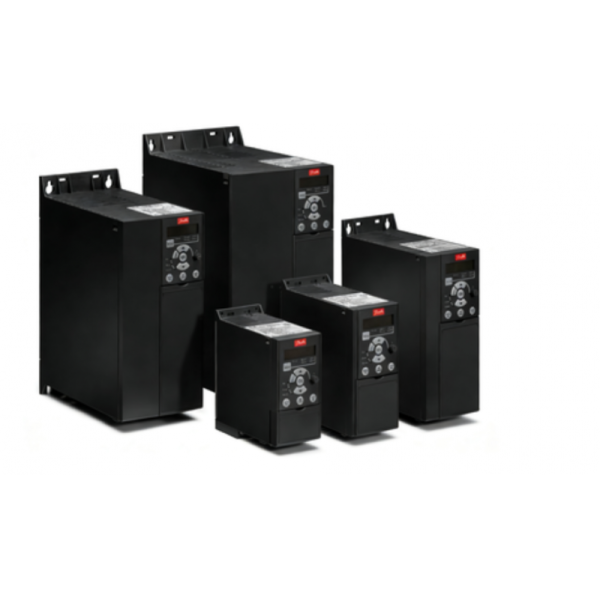

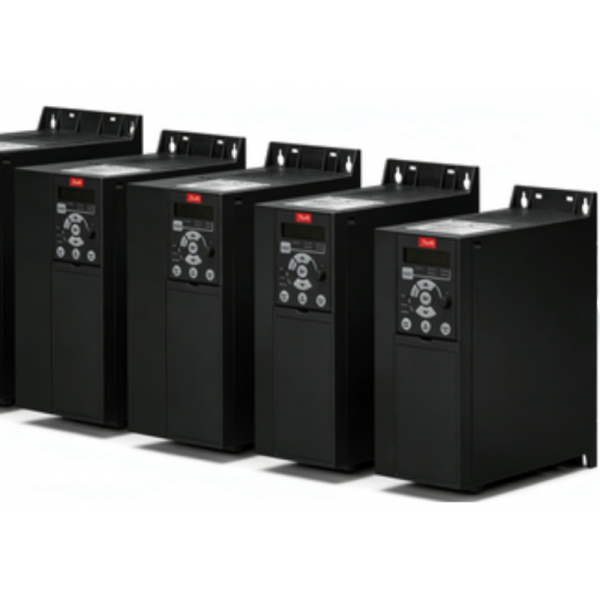

Danfoss 131F8844 Frequency converter VLT® AutomationDrive FC-302(P11K) 11 KW / 15 HP,Three phase, 380 - 500 VAC
Danfoss 131F8844 Frequency converter VLT® AutomationDrive FC-302(P11K) 11 KW / 15 HP,Three phase, 380 - 500 VAC
Danfoss 131F8844 Frequency converter VLT® AutomationDrive FC-302(P11K) 11 KW / 15 HP,Three phase, 380 - 500 VAC
Danfoss 131F8844 Frequency converter VLT® AutomationDrive FC-302(P11K) 11 KW / 15 HP,Three phase, 380 - 500 VAC
Danfoss 131F8844 Frequency converter VLT® AutomationDrive FC-302(P11K) 11 KW / 15 HP,Three phase, 380 - 500 VAC
Danfoss 131F8844 Frequency converter VLT® AutomationDrive FC-302(P11K) 11 KW / 15 HP,Three phase, 380 - 500 VAC
Specifications
Brand Name :
Danfoss
Model Number :
131F8844
Place of Origin :
china
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8days
Packaging Details :
pieces
Description
Danfoss 131F8844 VLT® AutomationDrive FC-302 Frequency Converter
High-performance 11 KW / 15 HP frequency converter designed for industrial automation applications. Three-phase operation with 380-500 VAC mains voltage compatibility.
Power Rating: 11 KW / 15 HP
Voltage: 380-500 VAC Three Phase
Enclosure: IP20 / Chassis
RFI Filter: Class A1/B (C1)
Control Panel: Graphical Local Control Panel
Product Specifications
Specification Value
Gross Weight 12.14 Kilogram
Net Weight 11.12 Kilogram
Volume 57.585 Liter
EAN 5702427488779
Height 399.0 mm
Width (no C options) 165.0 mm
Width (two C options) 225.0 mm
Depth 249.0 mm
Depth with Option A/B 262.0 mm
Electrical Characteristics
Parameter Value
kVA 16.6
Power Loss NO 392 W
Power Loss HO 291 W
Continuous Current (NO) 32 A / 27 A
Intermittent Current (NO) 35.2 A / 29.7 A
Continuous Current (HO) 24 A / 21 A
Intermittent Current (HO) 38.4 A / 33.6 A
Product Identification
Type Code Part 1 FC-302P11KT5E20H1XGX
Type Code Part 2 XXXSXXXXA0BXCXXXXDX
ECCN EU Y901
ECCN US 3A999.a
