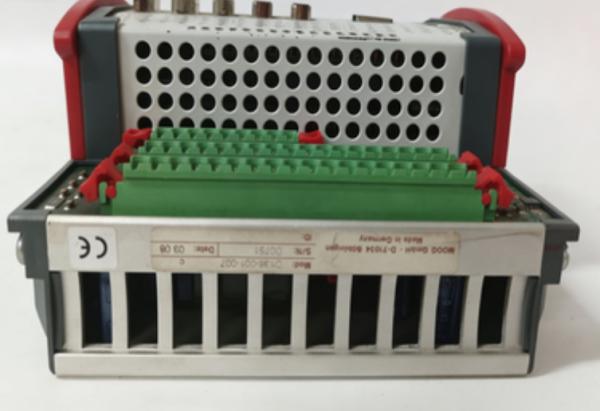

MOOG D136-001-007 Motion Controller With 32-bit PowerPC RISC For 2-axis Closed-loop Control
MOOG D136-001-007 Motion Controller With 32-bit PowerPC RISC For 2-axis Closed-loop Control
MOOG D136-001-007 Motion Controller With 32-bit PowerPC RISC For 2-axis Closed-loop Control
MOOG D136-001-007 Motion Controller With 32-bit PowerPC RISC For 2-axis Closed-loop Control
Specifications
Output Voltage Range :
0~6kV, 0~10kV
Part Type :
Sysmac CPM2A
Output Voltage :
0-480 V AC
Mpu Points :
12 (8DI + 4DO)
Model Number :
D136-001-007
Supply Ability :
1000pcs
Bypass Function :
Manual and automatic bypass available
Analog Input :
1 way 0~10V or 0~20mA
Programminglanguage :
Ladder Logic, Structured Text
Brand Name :
MOOG
Payment Terms :
T/T
Mountingtype :
Wall-mounted or panel-mounted
Certification :
Brand new original
MOQ :
1 pcs
Delivery Time :
5-7 days
Price :
Negotiable
Description
MOOG D136-001-007 Motion Controller Product Details
Product Introduction

The MOOG D136-001-007 is a high-performance industrial motion controller designed for precision 2-axis closed-loop motion control applications. Equipped with a 32-bit PowerPC RISC processor, this controller delivers fast computing speed, high control accuracy and excellent system stability, perfectly matching high-precision electro-hydraulic servo systems and automatic servo control equipment.

Supporting position, velocity and force closed-loop control modes, it is widely used in hydraulic test benches, industrial servo automation, precision machinery and motion simulation systems. With standard industrial communication interfaces and rich I/O resources, it can be flexibly integrated into various automated control systems to realize stable and synchronous multi-axis motion control.

Core Features
  • Built-in 32-bit PowerPC RISC processor, provides powerful floating-point operation capability and fast response
  • Supports 2 independent axes full closed-loop control, realizing position, speed and pressure/force precise regulation
  • High-resolution signal acquisition and output, ensuring ultra-stable servo operation
  • Multiple built-in control algorithms, adaptive for hydraulic servo valves and electric servo actuators
  • Complete industrial communication ports, compatible with mainstream automation bus protocols
  • Compact DIN rail mounting structure, easy installation and system integration
  • Strong anti-interference ability, suitable for long-term continuous operation in complex industrial environments
Technical Specifications
Item Specification
Brand MOOG
Model D136-001-007
Processor 32-bit PowerPC RISC
Controlled Axis 2-axis closed-loop control
Control Mode Position loop / Velocity loop / Force loop
Communication Interface Ethernet, RS485, E-Bus expansion interface
Output Signal 0-10VDC analog output for servo valve drive
Power Supply 24VDC industrial power supply
Mounting Type Standard DIN rail mounting
Working Temperature -10℃ ~ +60℃
Application Scope

This MOOG motion controller is widely applied in high-precision industrial scenarios, including hydraulic servo test benches, motion simulation equipment, automotive testing systems, heavy industrial automation, precision machining equipment and custom closed-loop servo control systems. It is the core control module for high-stability electro-hydraulic motion control.

Product Advantage

Original MOOG industrial grade controller, reliable quality, stable operation and strong compatibility. It supports custom motion parameter configuration and high-precision synchronous control, effectively improving equipment automation level and operation accuracy. All products are brand new, well tested and supplied with complete after-sales guarantee.

Packaging & After-sales Service

Condition: 100% Brand New Original

Package: Original industrial anti-static packaging + carton box

Warranty: 12 months warranty

Service: Professional technical support and fast global delivery
